BMP is one of the leading clear view fencing manufacturers; we have constructed strong credibility working with regional home developers, service providers and homeowners, giving them the highest quality fencing and aims to suit our client's requirements with trust, honesty and honesty. We always placed our client's needs initially. Our company believes in 5 celebrity customer support and is hands-on with all our orders.BMP is acknowledged as one of the leading fence companies in China and also southern African

As one professional, clear view fencing manufacturers intend to supply top-quality work and solutions beyond our customer's expectations. BMP will constantly go the extra mile for our customers and manage the procedure of the job done, and make sure that all our projects are completed promptly and within our client's budget and to the requirements agreed upon to enjoy our customers on-site.BMP desires them to remain with us as long as possible; we provide upkeep and maintenance on your boundary fence. Call us today for your cost-free quote.

BMP take pride in our item, which is the best and the most inexpensive fence in the marketplace. All our Clear View Fences are manufactured locally in China and then delivered to Durban and any port in South African

As a result of our experience in the industry and our idea for our product, we can claim with certainty that we are the best in clear-view fencing. We provide fast, trusted and also cost-effective services assured.

Cover Plate

The cover plate is manufactured from the 1.1mm AluZinc material and can be coloured to meet the customer's needs. Colour restrictions are only available in powder-coated options.

Fencing Post

The rolled profile post is pre-punched before colour coating applications. The system accommodates uneven ground levels and the most challenging landscape.

Panel

The panel nests securely behind the steel cover plate to form a uniform clamping system and have multiple v-bends. The wire diameter is available in 3mm, 4mm or 5.6mm wire, and the clear fence is available with or without v-bends. Over and above the standard Panel, a panel called PRISM MAX with front and back cross wires is also available.

The Clamping System

The Clearvu fencing is slotted over the front end of the post. It is clamped by a front cover plate and pinned together with a unique concealed fixing system that is aesthetically pleasing to the eye and minimizes tampering.

The Fixing

The system offers unique fixing detail with no visible fixates.

• Tie rod
• Stainless steel fixing cleat
• Sheer nuts
• Washers

The Cap

The UV stable Polypropylene cap has a fault line that can be removed to extend the front-end cover plate to accommodate additional security options.

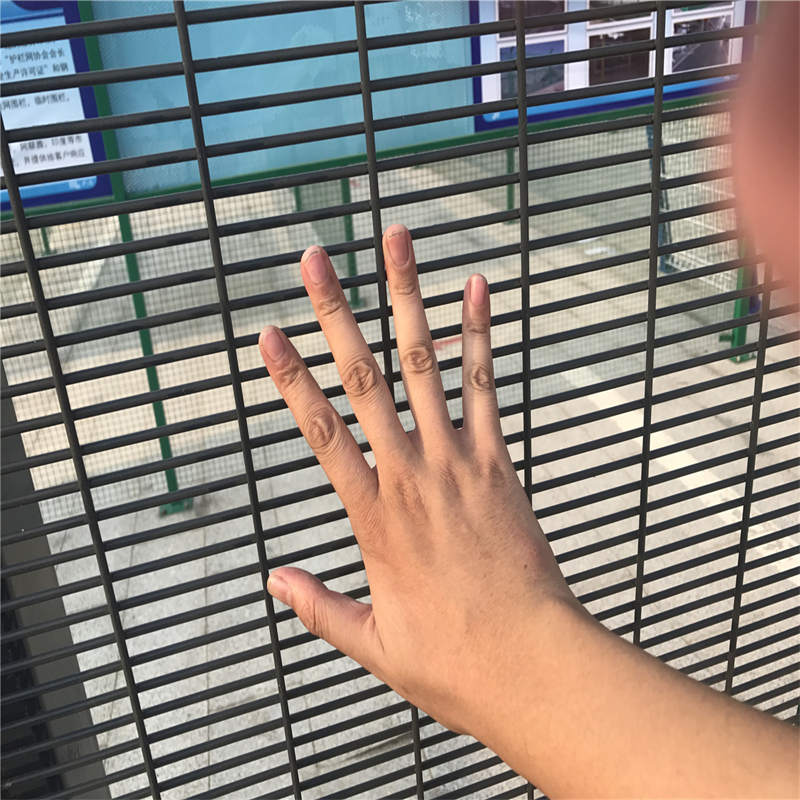

High safety fencing, additionally called '358 FENCE', '3510 fence', 'anti finger fence' ', clearly fencing'. It is a high price variation of steel fencing. The Panel is bonded with low carbon steel cable， Product Grade: Q195, Surface area treatment by Electrostatic polyester powder roaming finish( Powder-coated) over galvanized materials. And then connect the fencing panels with the blog post with ideal clamps( Clips). Because of the 12.7 * 76.2 mm tiny mesh dimension, it is anti-cut & and finger climb.

Clearview Fence is called Clear Vu Fencing, 358 Fence, or High-security fencing. It is a high-security, high-see-through fencing wall to protect your region, primarily utilized around household and industrial locations. What are the advantages of Clearview Fencing? Listed below, we explain in detail:

Mesh Dimension

Mesh size, also called aperture opening or opening size, will undoubtedly make the Clearview fencing sufficiently strong and, at the same time, safe and will make the Clearview fencing unseen. There are more people making use of Clearview fences in South Africa, Zimbabwe, Zambia, Nigeria (called anti-finger fencing), Botswana, and so on; we have three kinds of mesh dimensions of Clear view fencing:

High-Security Clear View Fencing 75mmx12mm

The high safety and security mesh dimension (Premium Alternative) is 76.2 mm x 12.7 mm, which is a smaller aperture and also high protection fence Anti-cutting and also anti-climb, the high safety Clearview fencing is the best defence for your areas, the expense of this option might be a little high, but it is also adequate maximum protection, so this is one of the most prominent alternatives for consumers.

Technical Specifications

Height	Length	V-Bends
1800	3000	3
2000	3000	3
2100	3000	3
2400	3000	4
3000	3000	5



Wire diameter	Aperture	Tensile strength	Weld strength
4mm (Vertical) x 3mm (Horizontal)	75mm x 12.7mm	500 - 650 mpa	60% - 80%



Zinc coating
Lightly Galvanised (60g/m²)	Fully Galvanised (275g/m²)	Galfan Coated (220g/m²)
Lightly Galvanised (50g/m²)	Fully Galvanised (255g/m²)	Galfan Coated (195g/m²)



Colour coatings
Powder Coating (60-80 microns)	Thermal Plastic (250 microns min.)	95%Zinc, 5%Aluminium

Medium Security 76.2mx25mm One of the Experienced  Clear View Fencing  Manufacturers recommend spec

Alternative 2: The Econo 25 security mesh size is 76.2 mm x 25mm, and this dimension is a medium-sized Clearview Fencing, and also the expense is cheaper than the high safety and security mesh size,

Technical Specifications

Height	Length	V-Bends
1800	3000	3
2000	3000	3
2100	3000	3
2400	3000	4
-	-	-



Wire diameter	Aperture	Tensile strength	Weld strength
4mm (Vertical) x 3mm (Horizontal)	75mm x 25mm	500 - 650 mpa	60% - 80%



Zinc coating
Lightly Galvanised (60g/m²)	Fully Galvanised (275g/m²)	Galfan Coated (220g/m²)
Lightly Galvanised (50g/m²)	Fully Galvanised (255g/m²)	Galfan Coated (195g/m²)



Colour coatings
Powder Coating (60-80 microns)	Thermal Plastic (250 microns min.)	95%Zinc, 5%Aluminium

Low-Security Clear View Fencing

 Alternative 3: The Standard 50 safety and security mesh size is 75mm x 50mm. The big aperture is used for low safety and security border fencing, which is much more unnoticeable yet reduced cost. It's fantastic for the client who requires a lower budget for the Clearview fencing.



Technical Specifications

Height	Length	V-Bends
1800	3000	3
2000	3000	3
2100	3000	3
2400	3000	4
3000	3000	5



Wire diameter	Aperture	Tensile strength	Weld strength
4mm (Vertical) x 3mm (Horizontal)	75mm x 50mm	500 - 650 mpa	60% - 80%



Zinc coating
Lightly Galvanised (60g/m²)	Fully Galvanised (275g/m²)	Galfan Coated (220g/m²)
Lightly Galvanised (50g/m²)	Fully Galvanised (255g/m²)	Galfan Coated (195g/m²)



Colour coatings
Powder Coating (60-80 microns)	Thermal Plastic (250 microns min.)	95%Zinc, 5%Aluminium

2: Wire DIAMETER

The wire diameter is essential for the entire Clearview fencing, and we bonded the fence panel using hundreds of Q195 low-carbon steel cords.

For the Clearview Fencing, we usually do a horizontal wire diameter of 3mm and an upright wire diameter of 4mm. This style will make the Clearview fencing stronger as well as safer, as well as also makes the fencing much more cost-efficient because we utilize more horizontal wires, regarding 150-200 computers per Panel, so that's ok if we use a smaller size cable, after that use the 4mm more robust vertical cable to enhance the fencing panel. This is a very excellent design. as well as also, the basic style for the Clearview fence.



As well as they additionally have some customers that require the Clearview fencing to be more powerful, so we will use a 4mm size for both straight and upright wire; the thicker cord sizes will undoubtedly make the Clearview fence stronger. Indeed, the price will likewise be much more.

3: Surface area treatment of the Clearview fencing,

Surface area therapy of the fencing is like our clothes to shield our bodies. So we made excellent surface area therapy for the Clearview fence so that the fence can be used for an extended period and with no corrosion.

As one of the elders clear view fencing manufacturers has the list below kinds layer:

• ​Pre galvanized+ powder finishing (all shades in RAL readily available).
• Hot Dipped Galvanized( 40-60g/ m ²) + PVC Coated or Powder Coated  All RAL available
• Hot Dipped Galvanized after welding (500g/m ²).
• We utilize architectural-quality specialty powder finishes.

This finishing is highly long-lasting and environmentally friendly. Our powder coating offers the sector's highest possible weather condition ability and gloss retention under UV exposure. It can make used three times longer than rival powder coating.

 Top Spikes Choice Clear view fencing manufacturers advised

The wall spikes resemble shark teeth; when you touch them, your hand will feel pain, which will undoubtedly add more safety and security to the Clearview fence. This will certainly add some expense; however, it will be much safer. And we additionally have barbed cable and razor cord rolls leading options for you to choose from. These all can make the Clearview fencing safer.
