Clear View Fencing

The clear view fencing is well known globally as an anti-climb & anti-cut barrier while providing the lowest level of high-quality carbon steel wires. It is designed to give attractive, long-lasting, and secure perimeter protection for industrial and commercial properties and public utilities, and+ is suited for electronic alarm and detection systems- no blind spots for CCTV. It is also a good choice for the Military, airports, secure units and prisons.

Transparent View Fencing available colours

Details

The clear-view fencing is also called a clear-view fence, providing the highest degree of security with excellent see-through visibility. The anti-climb fence has a toe and finger-proof profile. With a spacing specification of 75mm x 12.5mm, it is hard for adult fingers and toes to go through. It has an entire thickness and anti-cutting mater,ials and its frames are strongly resistant. Galvanized Anti-climb fence.

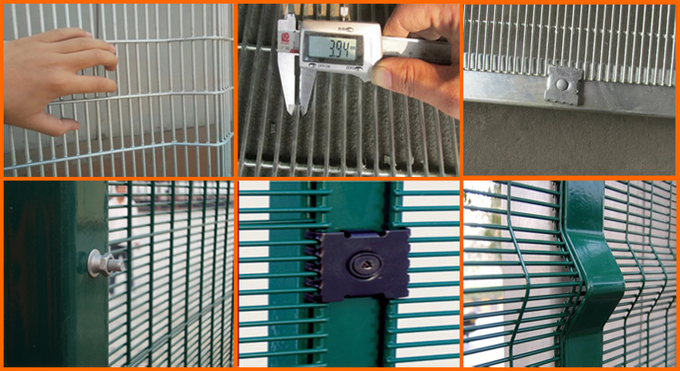

Features:

1. Anti-climb: 75mm x 12.5mm small hole openings make climbing the fence virtually challenging.
2. Anti-cut: the wire can't be cut by conventional tools; it's also depreciation resistant.
3. Clearvu Fencing: more accessible for the CCTV camera and survey team to see through.

Specification clear view fencing

Height	Length	V-Bends
1800	3000	3
2000	3000	3
2100	3000	3
2400	3000	4
3000	3000	5

Wire diameter	Aperture 75mm ride	Tensile strength	Weld strength
4mm (Vertical) x 3mm (Horizontal) 4mm (Vertical) x 4mm (Horizontal) 3mm (Vertical) x 3mm (Horizontal)	12.7mm high security 25mm medium security 50mm low security	500 - 650 mpa	60% - 80%

clear view fencing Zinc coating
Lightly Galvanised (60g/m²)	Fully Galvanised (275g/m²)	Galfan Coated (220g/m²)
Lightly Galvanised (50g/m²)	Fully Galvanised (255g/m²)	Galfan Coated (195g/m²)

Colour coatings
Powder Coating (60-80 microns)	Thermal Plastic (250 microns min.)	95%Zinc, 5%Aluminium

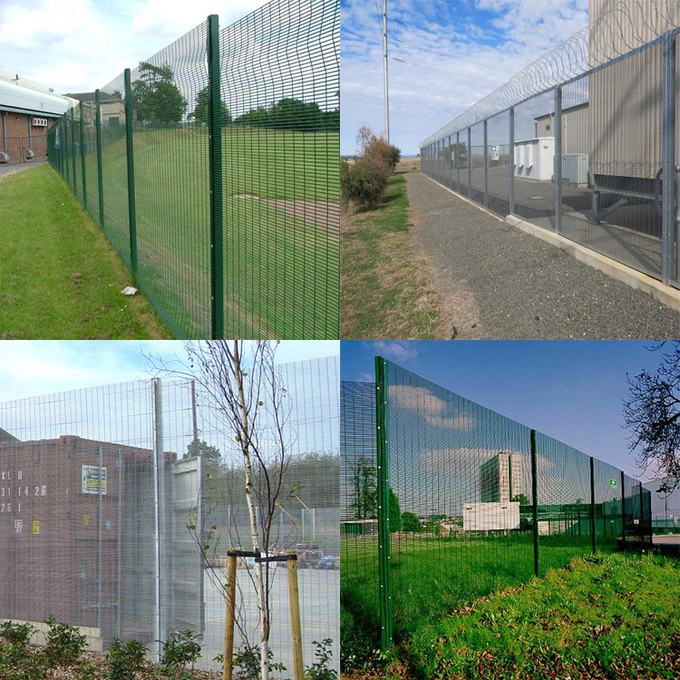

Application

clear view

wire mesh fence comes with Excellent see-through visibility making anti-climb fences suitable for commercial, governmental, and industrial properties. And it is also suitable for premium housing estate development, apartments and condominium surroundings, schools, business parks, warehouses, power plants, military sites, educational facilities, hospitals and residential areas precise

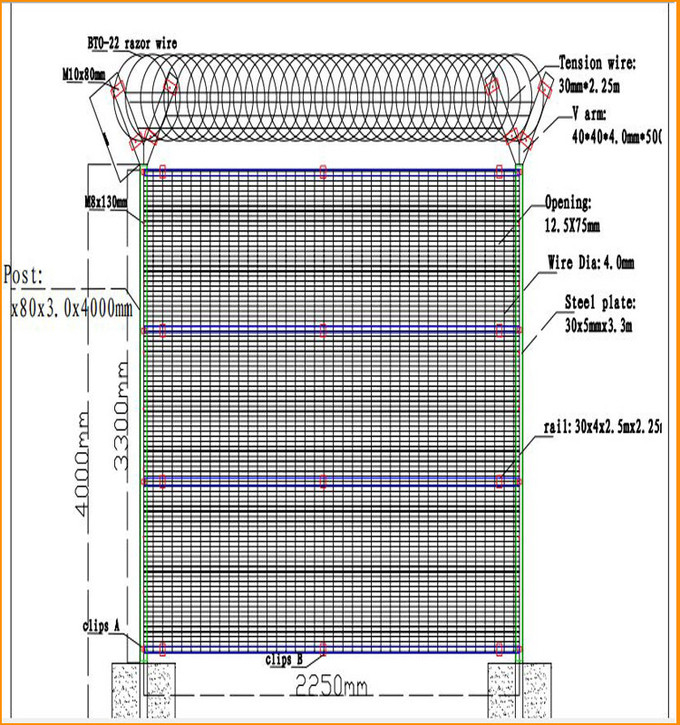

clear view fencing drawing:

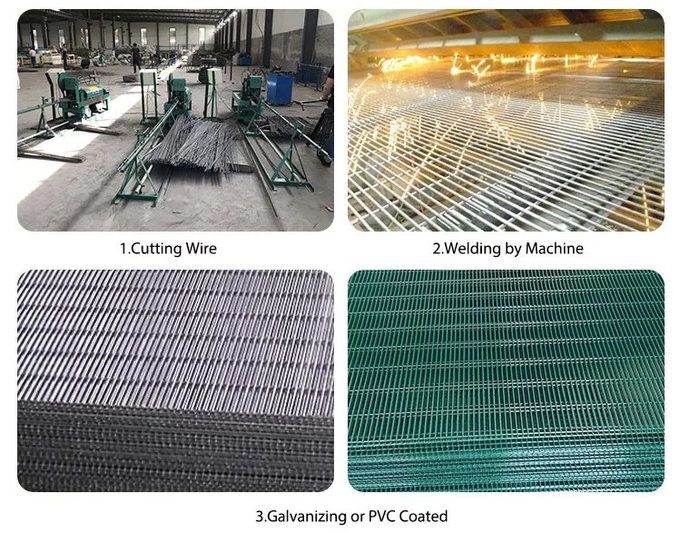

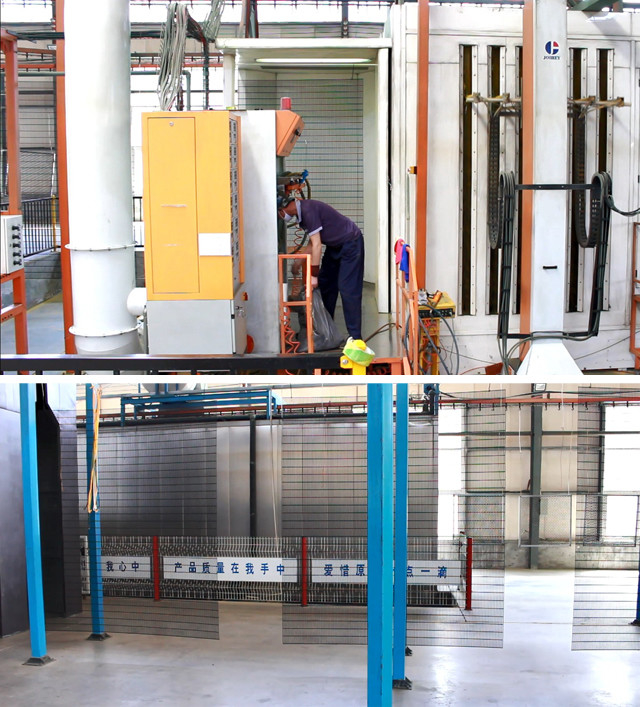

Production process: Material-->straight wire and cut wire-->welded-->hot dipped galvanized--> sanding-->pvc coated or powder painted

capacity: 7000 pieces per month.

358 welded wire mesh fence 4

Packaging & Shipping clear-view fencing

1. Panel: Metal pallet wrapped with cardboard plate and then wrapped with plastic film.
2. Post: Wrapped with PP bags, then put on a pallet, wrapped with plastic film.
3. Accessories: Carton
4. clear view fencing Customized packing is available.
3>Accessories a.clips and nuts installed with clip by per set b.5 sets loaded into one plastic bag c.12 bags into one carton box
