Products >> Clear View Fence

 Clearview fence is also called a high-security wire fence, the ultimate heavy-duty welded mesh panel providing the highest degree of security with excellent see-through Visibility. clearvu security fence has a toe and finger-proof profile. With a spacing specification of 75mm x 12.5mm, fingers and toes can't go through. Our clearvu security fence is perfect as a guarded fence system because its entire thickness, anti-cutting materials, and framework are solid resistant and hard to uninstall. With our excellent anti-climb fence supply, clients can enjoy the most significant relaxation and secured protection from their inside.



Production process:

Clearview fence panels and the post-production process are listed as the following

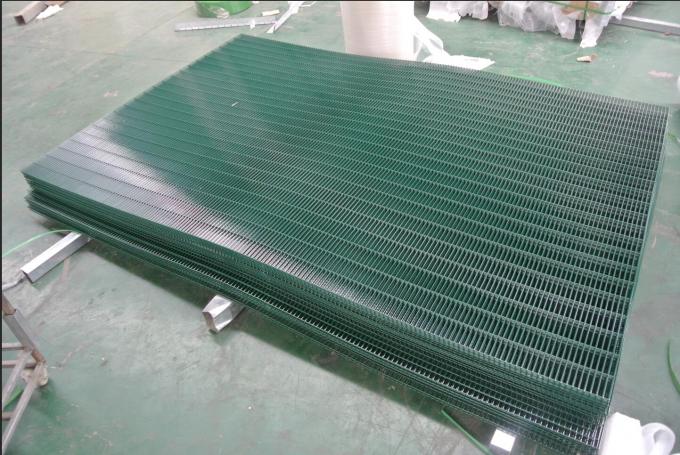

Panel: galvanized wire → cut→ full-automatic spot welding machine welded the wires into powder-painted panels.

Post: HDG tube → cut → powder painted.



Installation of clearview fence :

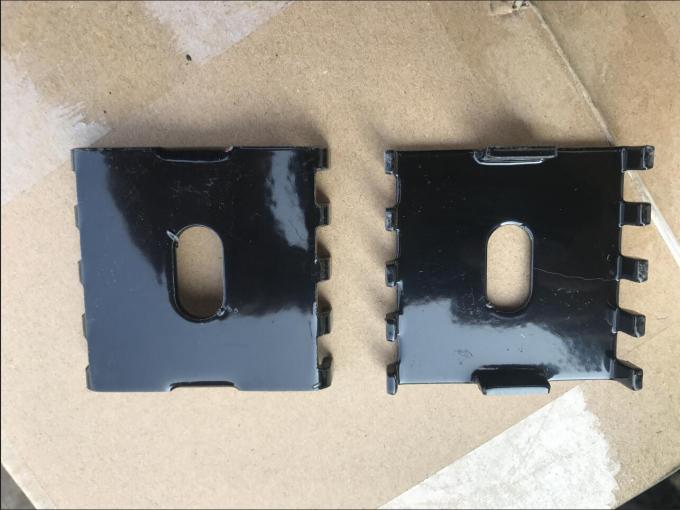

A(square post): multangular climbs +screw and nut

B(square post with metal lath): multangular climbs +metal lath+ screw and nut

C(H post): angle iron+climps+screw and nut

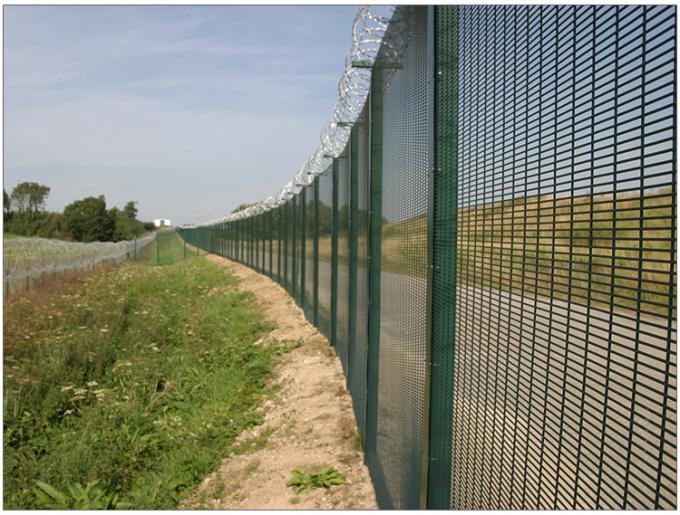

Application

Suitable applications include ·Industrial / Commercial Sites ·Retail Complexes · Medical Facilities, ·Educational, · Recreational ·Farm Houses · Correctional Facilities, · Housing Estates, · Residential homes and estates.

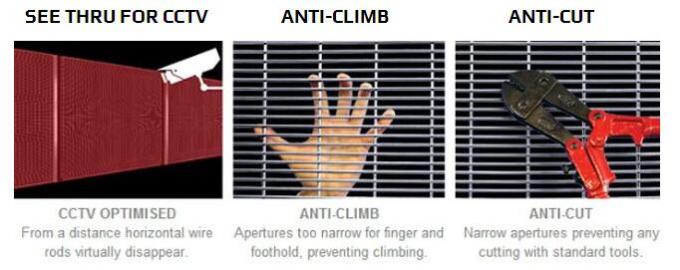

The Clearview fence configuration offers no climbing aids

Panel wires are welded at every intersection

Mitigates attack by hand and powered tools through tight mesh design

High Visibility makes the clearvu weld mesh ideal for use with CCTV cameras

Difficult to cut with bolt croppers

Robust

Can be stepped to allow for installation on uneven ground

Tamper-resistant fasteners



Specification clearview fence

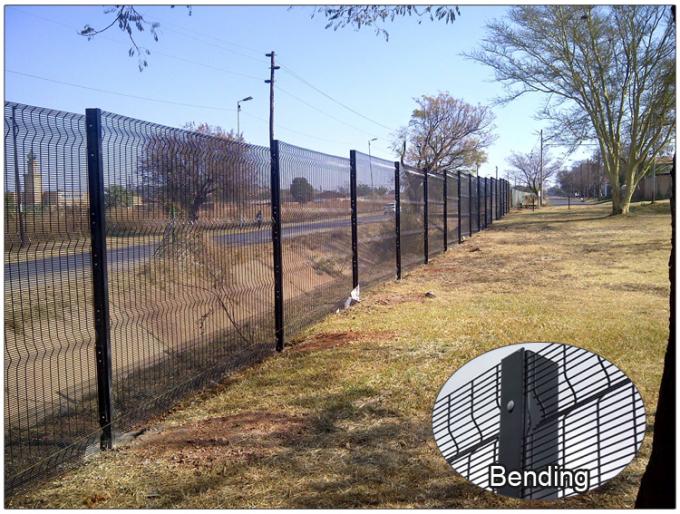

Height Length V-Bends
1800 3000 3
2000 3000 3
2100 3000 3
2400 3000 4
3000 3000 5

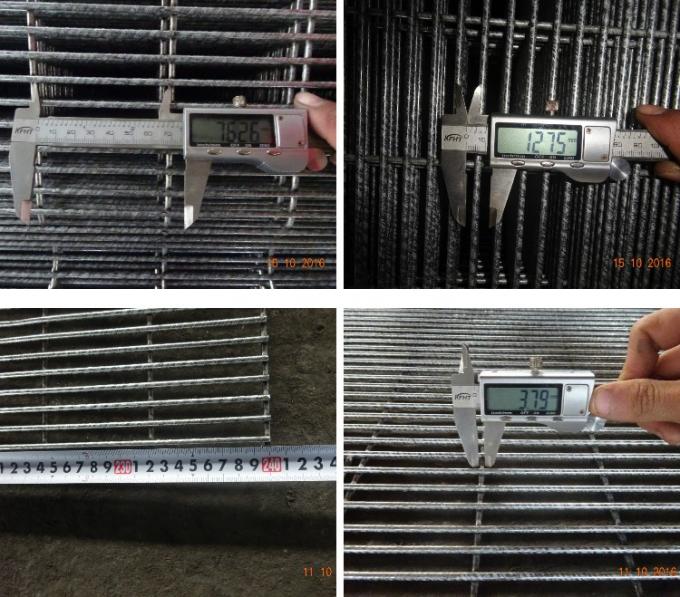

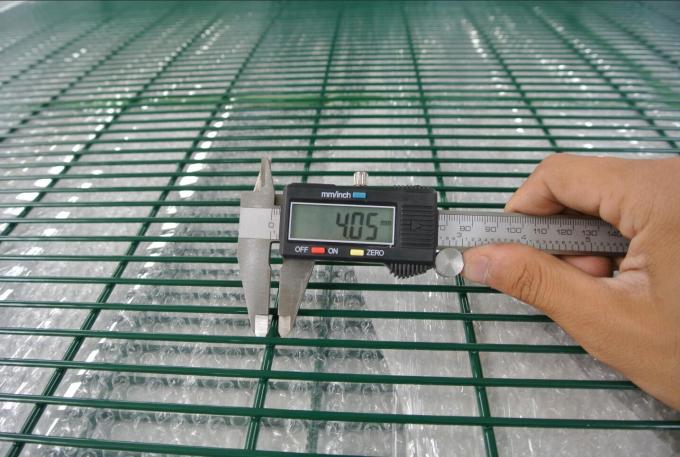

Wire diameter Aperture 75mm Tensile strength Weld strength
4mm (Vertical) x 3mm (Horizontal)
4mm (Vertical) x 4mm (Horizontal)

3mm (Vertical) x 3mm (Horizontal)

12.7mm high security
 25mm medium security
50mm low security
500 - 650 mpa 60% - 80%

clearview fence treatment

Zinc coating
Lightly Galvanised (60g/m²) Fully Galvanised (275g/m²) Galfan Coated (220g/m²)
Lightly Galvanised (50g/m²) Fully Galvanised (255g/m²) Galfan Coated (195g/m²)



Colour coatings
Powder Coating
(60-80 microns)
Thermal Plastic
(250 microns min.)
95%Zinc,
5%Aluminium

clear view fencing prices

 Clear view fencing prices could range from 57.81 USD to 75.18 USD per meter, which will leave out the labour for the setup. Relying on the materials used, the height of the fencing, the degree of protection and any extras.


50mmx75mm

12.70mmx75mm

25mmx75mm

Upgrading your secure border fencing in South Africa, with a high criminal offence price, is essential. Clearview fences are an exceptional selection for a home or organization and provide a substantial barrier with numerous benefits:

  • Increased Protection: The fencing is created with tiny openings that are almost difficult to cut with standard tools, making it almost difficult to climb. On top of that, the fencing can be fitted with spikes or secure electrical fencing.
  • Affordable: Compared to a brick wall or palisade fence, the cost of materials and work for an instalment is much reduced
  • Durability: Fences are made to endure the rough climate condition of South Africa and will last for a long time, with most fencing including a 10-year service warranty.
  • Lots of styles and finishes: Clearview fencings are in numerous styles and also coatings, consisting of galvanizing, powder coatings, different colours and also various plastic layers.'
  • Visually pleasing: Clearview fencings, as the name recommends, do not block the sight, making them as inconspicuous as possible while using exceptional safety and security.

Prices for Clear View Fencing installed Prices per meter

Low Security 75mm – 50mm apertures About 57.79USD per metre
Medium Security 75mm – 25mm apertures About 66.46USD per metre
High Security 75mm – 12.7mm apertures About 75.13USD per metre

Specification Clear View Fencing

Height Length V-Bends
1800 3000 3
2000 3000 3
2100 3000 3
2400 3000 4
3000 3000 5



Wire diameter Aperture& Security 75mm Tensile strength Weld strength
4mm (Vertical) x 3mm (Horizontal)
4mm (Vertical) x 4mm (Horizontal)

3mm (Vertical) x 3mm (Horizontal)

12.7mm high
25mm medium
 50mm low
500 - 650 mpa 60% - 80%



Zinc coating
Lightly Galvanised (60g/m²) Fully Galvanised (275g/m²) Galfan Coated (220g/m²)
Lightly Galvanised (50g/m²) Fully Galvanised (255g/m²) Galfan Coated (195g/m²)



Colour coatings
Powder Coating
(60-80 microns)
Thermal Plastic
(250 microns min.)
95%Zinc,
5%Aluminium


Econo Range 75mm * 50mm Aperture

If the clearview fencing prices are not listed in the following, please feel free to contact us at clearviewfencing@wiremesh.us

1.2 m-- 39.32USD excl shark-teeth spikes leading
1.8 m-- 42.30USD excl shark-teeth spikes top
1.8 m-- 44.91USD with shark-teeth spikes top
2.0 m-- 46.23USD excl shark-teeth spikes top
2.0 m-- 48.95USD with shark-teeth spikes top
2.4 m-- 49.89USD excl shark-teeth spikes leading
2.4 m-- 52.48USD with shark-teeth spikes top


Anti-climb 75mm * 12.5 mm Aperture

If the clear view fencing prices are not listed in the following, please feel free to contact us at clearviewfencing@wiremesh.us

1.2 m-- 45.42USD excl shark-teeth spikes top
1.8 m-- 52.77USD excl shark-teeth spikes leading
1.8 m-- 60.64USD with shark-teeth spikes leading
2.0 m-- 57.22USD excl shark-teeth spikes leading
2.0 m-- 59.76USD with shark-teeth spikes top
2.4 m-- 62.18USD excl shark-teeth spikes top
2.4 m-- 64.68USD with shark-teeth spikes top

358 anti-climb fence

358 anti-climb fence 1

358 anti-climb fence

358 anti-climb fence 3 358 anti-climb fence 4
358 anti-climb fence 5 358 anti-climb fence for sale

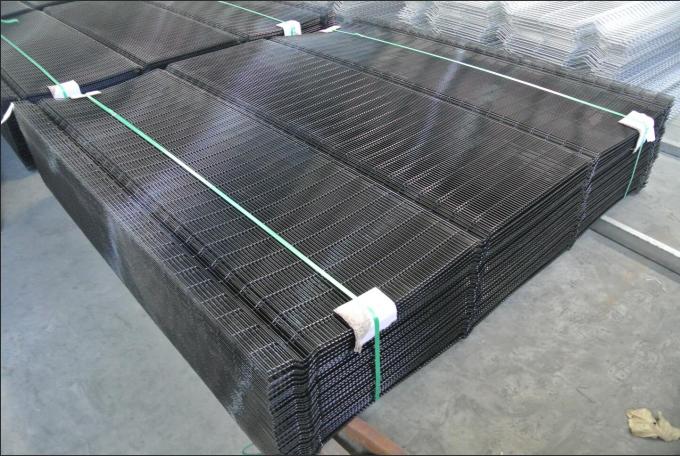

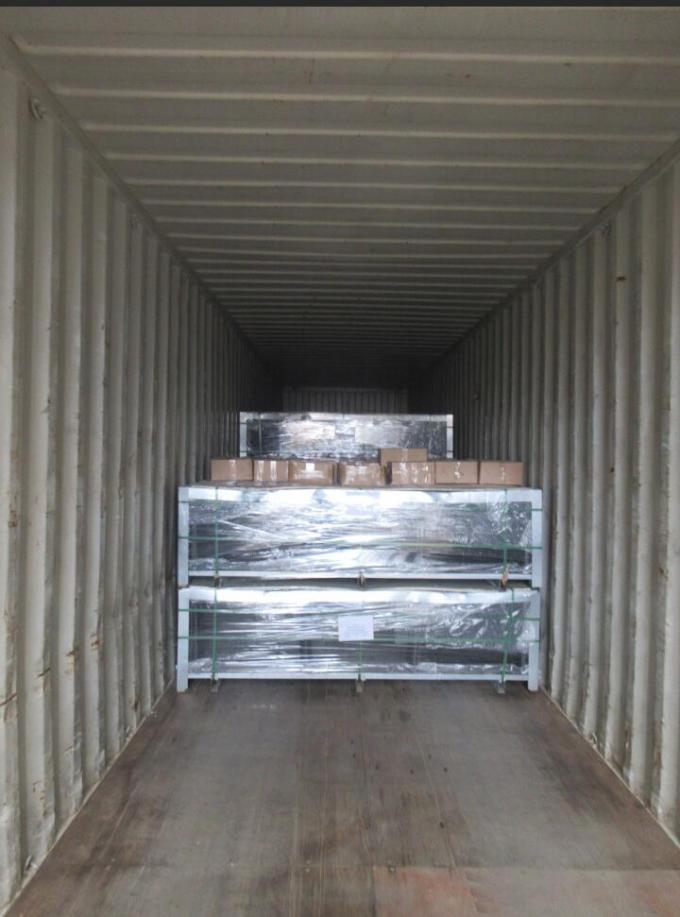

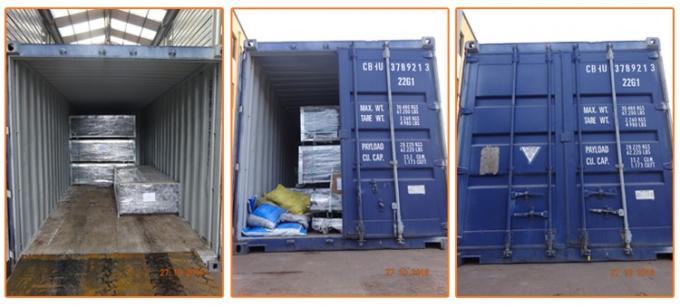

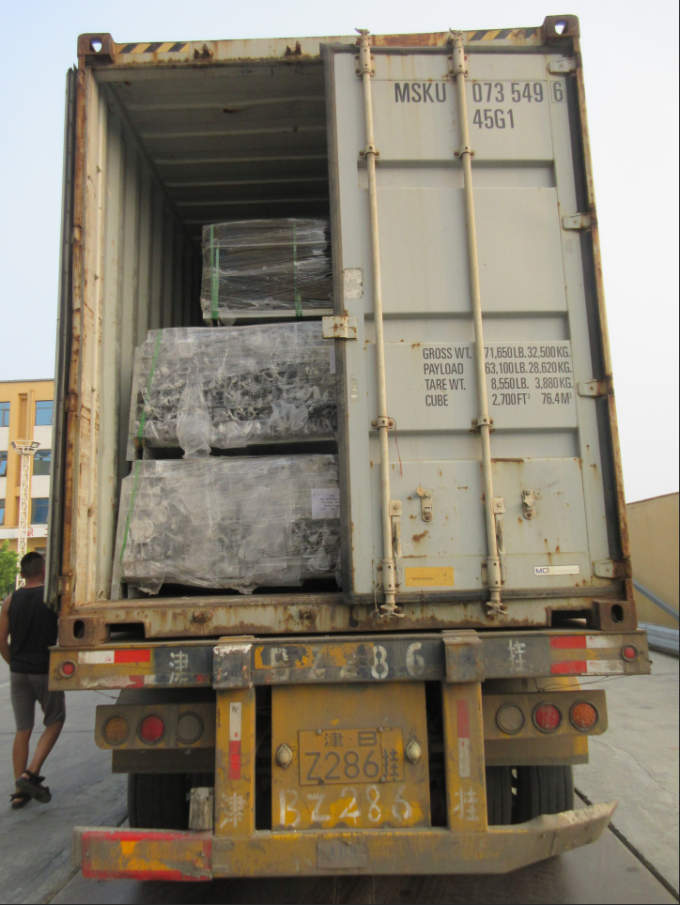

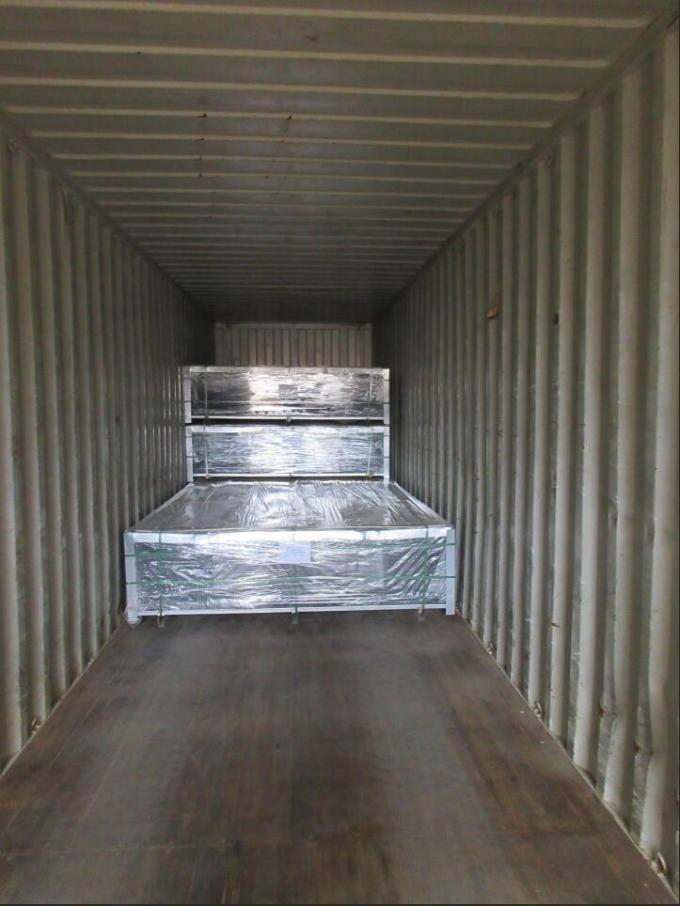

Packing & Loading

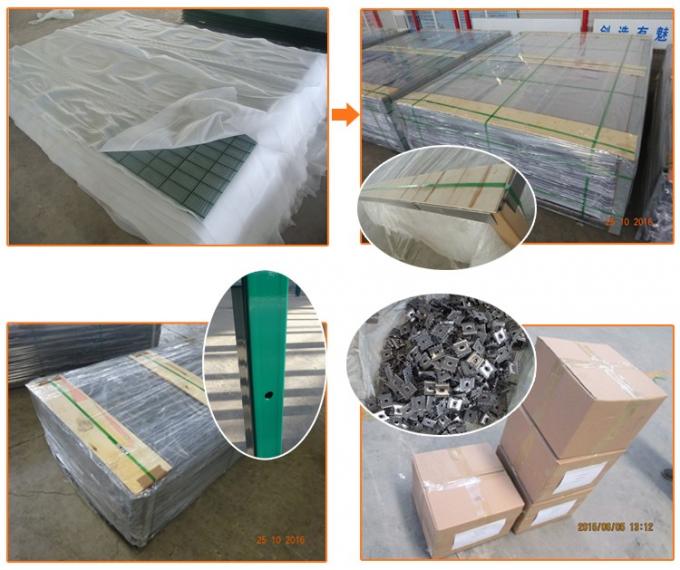

  • 1> There is a piece of plastic film(with tiny bubbles); the first panel can be prevented from damaging the metal pallet
  • 2>Metal plate is fixed at each corner of the panels, keeping the panels together and immovable.
  • 3> there is a plastic film between two fence panels, which will prevent the friction and collision of each fence panel.
  • 4> The wood plate on the Clearview fence panels can prevent the last panel from being damaged by the top pallet
358 anti-climb fence 7 358 anti-climb fence 8 358 anti-climb fence 9

358 anti-climb fence

358 anti-climb fence 11
