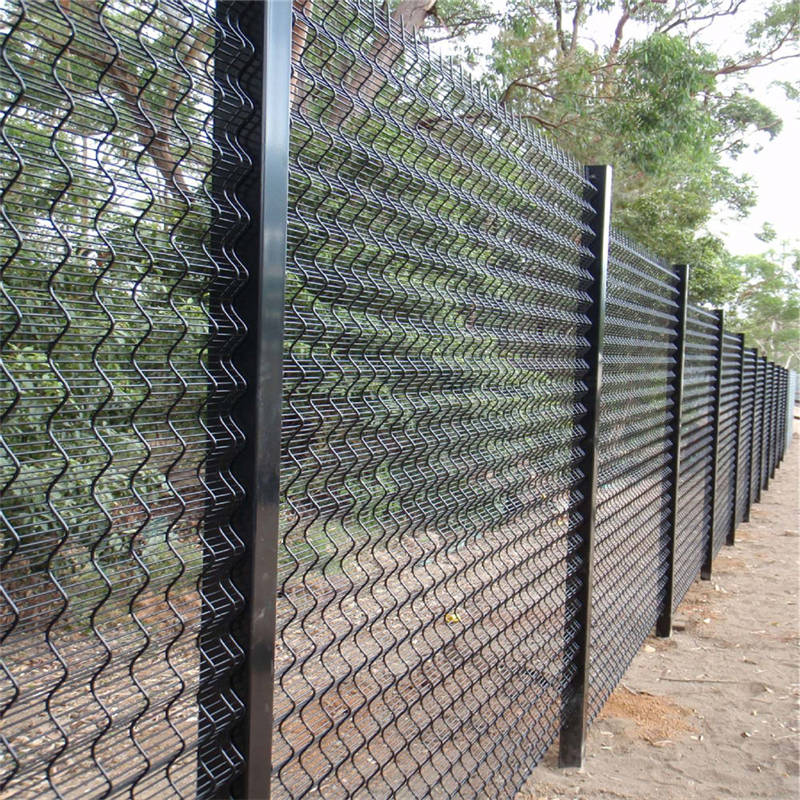

The anti-climb fence is also called clearvu clearview fence or anti-climb fence, and this system is extensively used when defendable space is paramount, used throughout the world in varying applications. The climb-resistant mesh (sometimes referred to as prison mesh or 358 mesh) with its small apertures and welds at each intersection eliminates foot and finger holds, prevents objects from being passed through and is particularly effective against the use of conventional hand-cutting tools.

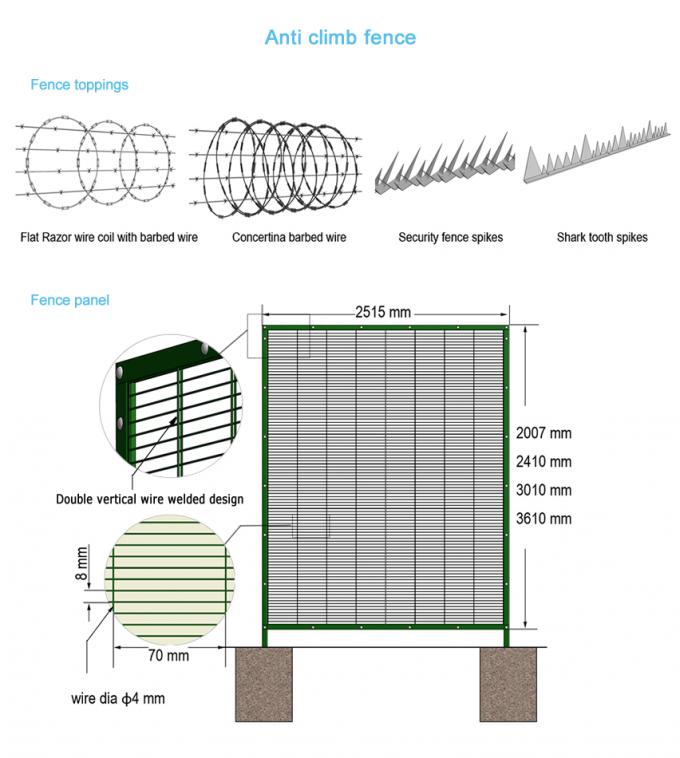

Specifications of clearvu clearview fence

Length: 2000x2200mm
Wire diameter: 4mm
Mesh Size: 12.7x76.2mm
Surface Treatment: electro galvanized wire welded, then PVC coated
Fence Post: 60x60x2x2500mm
Surface Treatment: galvanized pipe PVC coated
Flat Bar:60x5x2000mm
Surface Treatment: Iron flat bar PVC coated

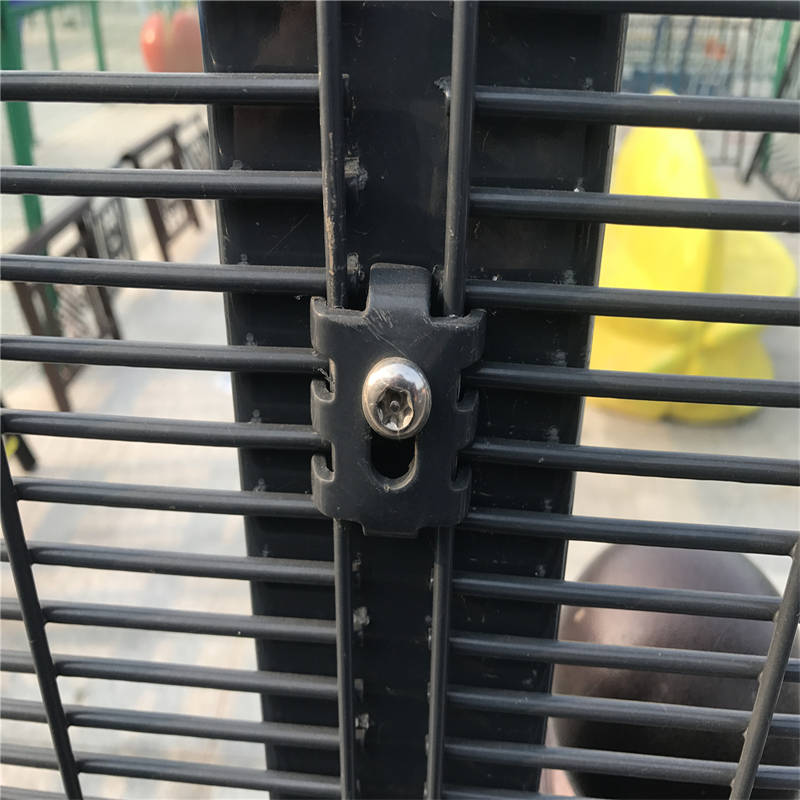

clearvu clearview fence With Plastic caps and bolts and nuts

MESH		PANELS	POST
Wire	Opening	Height*Width	Section	O/A Length	Total Number of Fixings
mm	mm	mm	mm	mm	Inters-1 Clamp Bar	Comers-2 Clamp Bar
4	12.7*76.2(3"*1/2")	2007*2515	60*60*2.5	2700	7	14
4	12.7*76.2(3"*1/2")	2004*2515	60*60*2.5	3100	9	18
4	12.7*76.2(3"*1/2")	2997*2515	80*80*2.5	3800	11	22
4	12.7*76.2(3"*1/2")	3302*2515	80*80*2.5	4200	12	24
4	12.7*76.2(3"*1/2")	3607*2515	100*60*3	4500	13	26
4	12.7*76.2(3"*1/2")	3607*2515	100*100*3	4500	13	26

Features

• 1. clearvu clearview fence Anti-climbing - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays excellent protection against climbing.
• 2. Anti-shear - the wire diameter is large, and the mesh is dense, making the wire cut useless.
• 3. Beautiful appearance - the mesh surface is flat and has a higher perspective.

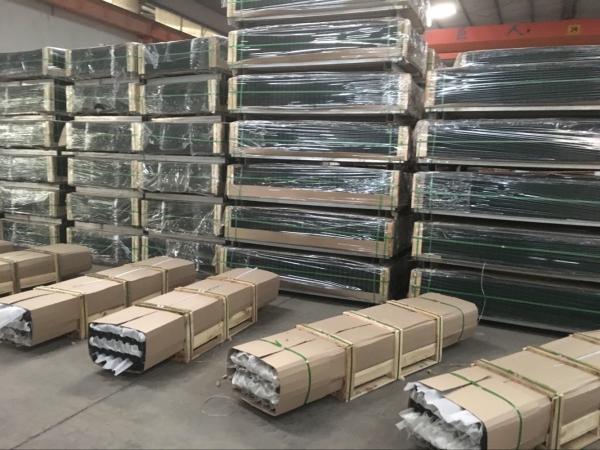

Packing and Shipping clearvu clearview fence

Put the meshes and post on the tray, bound well with the strap, and then packed with plastic film.

The clearvu clearview fence could be custom-made by our factory.

Usage:

• Bridge anti-climb guarding & guard safety screening
• Sub-station Security Fencing
• Psychiatric hospital security fencing
• Prison Security Fencing
• Factory Machine guards
• Walkway security fencing
• Airport security fencing
• 358 wire mesh fence gates
• Shipping Port Security fencing
• Electrical sub-station fencing
• Water Treatment works
• Gas pipelines Security Fence
• High-security window grilles
• Balustrades Security Fence



Application

Psychiatric hospital security fencing
Prison security fencing
Factory machine guards
Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing

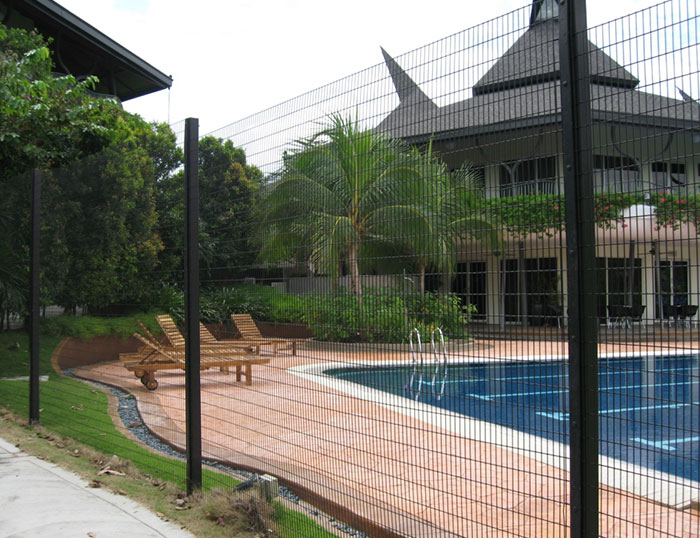

Gas pipelines security fence clearvu clearview fence for High-security living area and private field fence.

• 1. Panel packing of 358 fencing:
• 1›.it has a rubber mat at the bottom of the pallet to avoid the pallet destroying the panels.
• 2›.it has four metal corners to keep the pallet strong.
• 3›.it has a metal plate under the plastic bandage to reduce the pressure of fence panels.
•  4›.wooden plate on top can protect the clearvu clearview fence panels to avoid being crushed by other pallets.
