Products >> razor wire mesh

Razor wire mesh fence is a multi-functional, high-security razor fence made by welding straight blade nettings together. It has been designed as a high-security fencing mesh to protect commercial, industrial and government institutions. The product is virtually impossible to climb or cut with standard tools. The diamond pattern combined with vertical opposing barbs acts as an entrapment, yet it still looks neat.

Razor wire mesh is made of a sharp blade profile welded together, forming a diamond shape throughout the fence. Razor mesh is available in sheets of 1.2m, 1.8m, 2.1m and 2.4m high and 6m in length. High-density diamond razor fence has a diamond pattern of 150mm high x 75mm across. Standard density diamond razor fence is 300mm high x 150mm across the diamond pattern. Hot dipped Galvanized Razor wire mesh is used for high-security applications to protect domestic, commercial, and industrial properties.

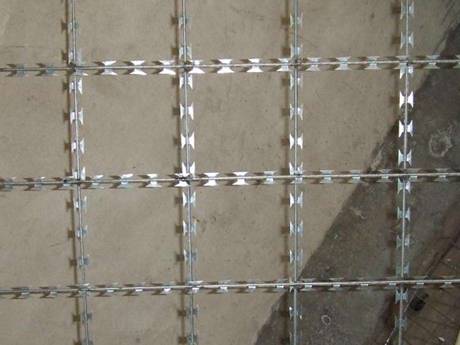

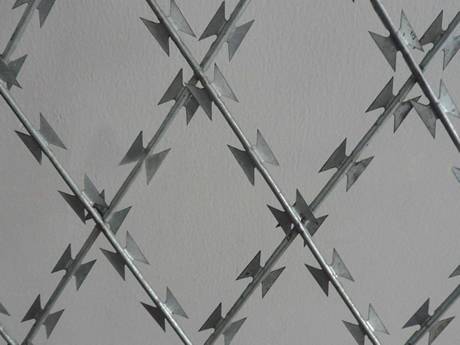

Square opening of welded razor wire screen.	Diamond opening of welded razor wire mesh.	Hot-dipped galvanized welded razor wire mesh.

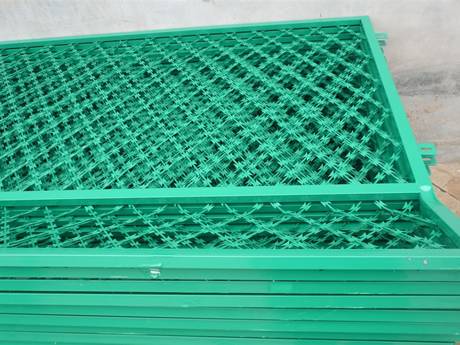

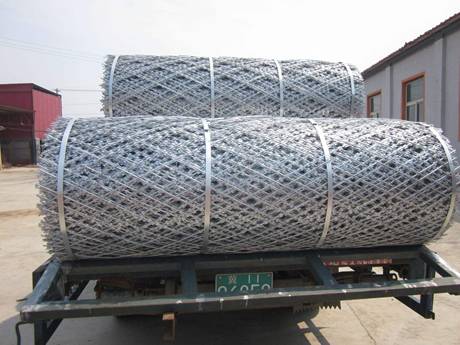

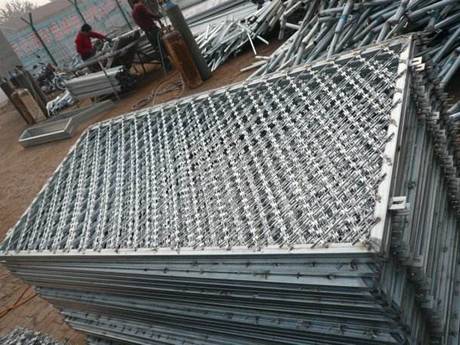

PVC coating galvanized Razor wire mesh	Welded razor wire mesh in panel package.	Welded razor wire fencing in rolls package.

Application Razor Mesh Fencing

Welded Ripper Razor mesh has been designed as a 'high' security free-standing fencing option to protect small holdings / farms / commercial and industrial properties/airports of the world/borders/warehouses/prisons/ mines / military bases / Government institutions, etc. The product is virtually impossible to climb or cut with standard tools. The Diamond pattern combined with vertical opposing barbs acts as an entrapment, yet it still has a neat appearance. Welded Razor mesh is produced exclusively out of reinforced razor wire products. The Ripper blade provides the necessary strength and rigidity, making razor mesh one of the 'most' practical security fences/barriers.

Hesly Welded Razor Mesh

Recommended for:

>> Any space needing additional security from a mesh-type product, such as water reservoirs, military bases, electrical substations, factories, warehouses & construction sites.
The unique characteristics of a razor mesh fence include the following:
>> Good quality vs. price relevant to other security fencing products.
>> Moderately Long Lifetime
>> Anti-cut properties from stan

Specification

Standard Specifications of Welded Ripper Razor Mesh
Name	Mesh Aperture	Blade Style	Core Wire	Height	Width	Finished	Package
Welded Razor Mesh	50X100mm 75X150mm 150X300mm	BTO-22 BTO-30 CBT-60	2.5±0.1mm	1.2m 1.5m 1.8m 2.1m 2.4m	6.0m or more	Galvanised or Powder Coated	In Rolls or Pallet

Photo razor mesh fencing

This kind of razor wire is straightforward to install; features of welded razor wire fence:

1. Non-climbing;

2. Robust welded structure;

3. Zinc coating improve corrosive resistance;

4. Available in square and diamond profiles.

Benefits of welded razor wire mesh fence :

Razor mesh fencing is almost impossible to climb.

The high-strength steel core is tough to cut off.

Powerful security fence barriers neat appearance.

No secondary use, so he will not be stolen.

Extremely simple to install, it needs three to four to install the moulding.

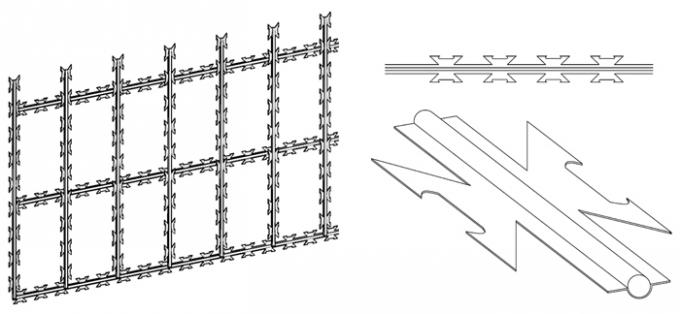

Structure razor fence

(welded)Rhombus Razor Mesh Fencing is made of straight-blade razor wire welded together, and the mesh pattern can be made into DIAMOND, SQUARE or RECTANGULAR. The welded razor mesh is packaged into a roll form for transport. Benefits of Razor Mesh Fence

Advantages

1. razor wire mesh fence is almost impossible to climb
2. high-strength steel core tough to cut off
3. powerful security fence barriers, neat appearance
4. no secondary use, so he will not be stolen
5. extremely simple to install; it needs three to four to install the moulding.

Details

Gauge diameter	Hole shape	Mesh width	Suited blade specifications
100mm×100mm	Square hole, diamond	1.2m ~ 2.4m	BTO-10.12.18.22.28.30, CBT-60.65
100mm×150mm	Square hole, diamond	1.2m ~ 2.4m	BTO-10.12.18.22.28.30, CBT-60.65
100mm×200mm	Square hole, diamond	1.2m ~ 2.4m	BTO-10.12.18.22.28.30, CBT-60.65
150mm×300mm	Square hole, diamond	1.2m ~ 2.4m	BTO-10.12.18.22.28.30, CBT-60.65
(other nets hole can be according to customers' special needs)
