Clear view fencing Gauteng

Product No.：2023224153430
Price：12.38$ -76.88$ per kit
Service Life：5-10 years
Packing：Metal Stillage Wrapped with Plastic Film
Colours：All RAL colours for Vinyl Coated One
MOQ：1x20gp container
Customized：Available
Production Time：14 days
Payment Term：TT 30% deposit balance 70% at sight of finished products photo
Certificate：ISO
Materials：Q195 and Q235
Treatement Surface：Hot dipped galvanized ,powder coated ,pvc coated
Online Inquiry

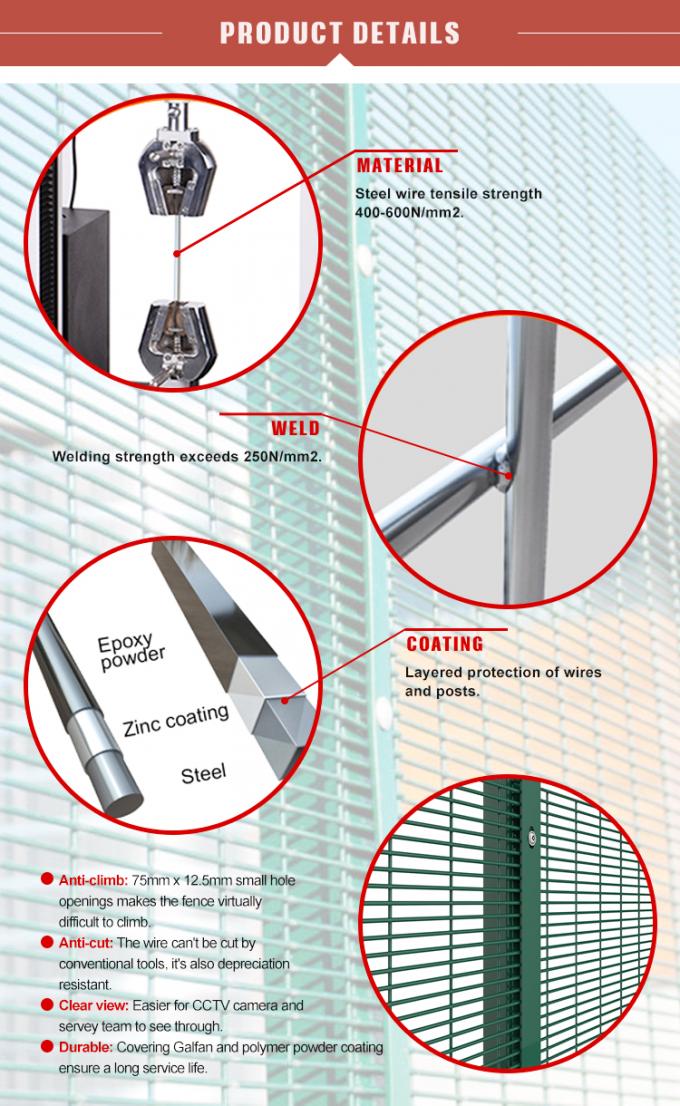

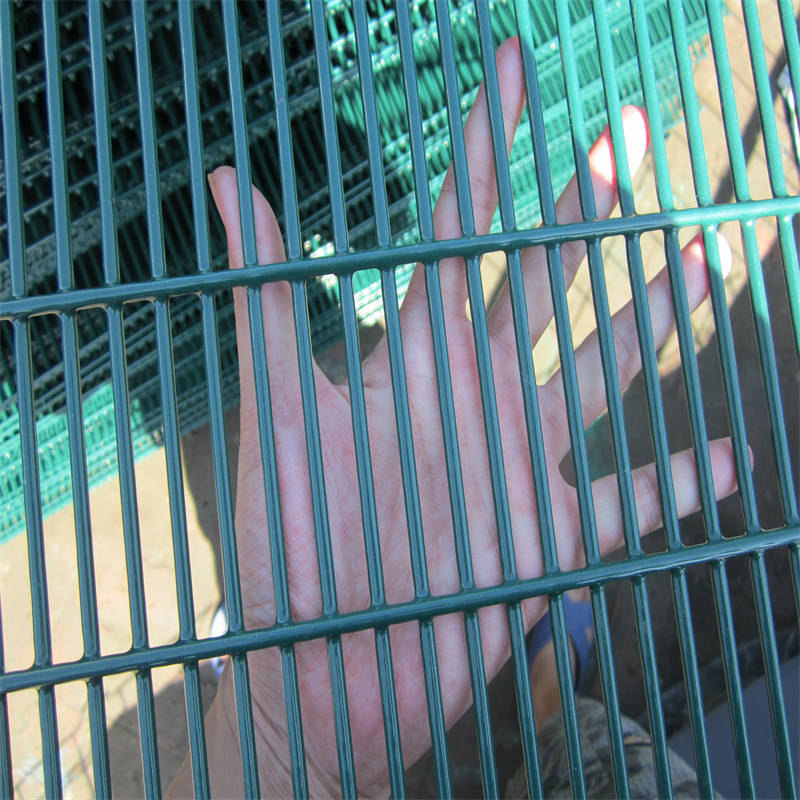

Clear view fencing Gauteng is tough to penetrate, with the small mesh aperture being effectively finger proof and extremely difficult to attack using conventional hand tools.358 Welded Mesh makes the ideal high-security steel fence and safety barrier cladding and is widely adopted across high-security fencing and gate applications, equipment protection, and safety barriers. The narrow high tensile strength wire with high weld strength is cut and climb resistant. The narrow apertures also offer high see-through visibility, so offenders can't hide behind them. This makes it perfect for high-security guards and or video surveillance. Clear view fencing is also non-obtrusive, blends into the architectural and landscaped surroundings, have high airflow, and makes a great anti-throw or safety barrier.

clear view fencing gauteng

clear view fencing Gauteng 1

Specification of clear view fencing Gauteng

♦Panel

Mesh Size

Hight

Width

Line Wire x CrossWire

(Nos. of Curves)

Post Length

Nos of Brackets

76.2x12.7

75x12.5

101.6x12.7

1800

2500/2750/3000

3.0x4.0

3.2x4.0

3.4x4.0

2600

2000

2500/2750/3000

2700

2200

2500/2750/3000

2800

2400-clear view fencing Gauteng

2500/2750/3000

3000

2700

2500/2750/3000

3500

3000

2250/3000

4000

2250

5200

♦The above description is the specifications of Mesh Panel-3D.

The security 358 fence is divided into Mesh Panel-3D, Mesh Panel-2D, and Mesh-2D Plus.

2D panel without curves.

2D plus with one additional horizontal wire every 11 mesh.

The wire thickness, panel height, and panel width are different; please contact us for details.

♦POST

clear view fencing Gauteng		P2-IPE	P3-RHS	P4-C+F
clear view fencing Gauteng	Square post	IPE post	Rectangle post	C post with a flat bar
Popular size A	60x60mm	100x55mm	60x80mm	60x80mm
Popular size B	80x80mm	100x68mm	80x100mm	80x100mm
Popular size C-clear view fencing Gauteng	100x100mm	120x74mm	100x150mm	100x150mm
Wall thickness	1.2-1.5mm	1.2-2.0mm	2.5-5.0mm	2.0-5.0mm

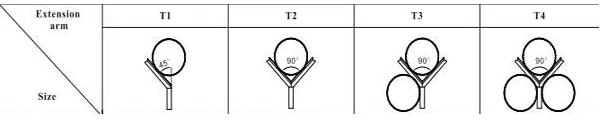

♦Razor wire and Angel's arm

♦The angle arm is unnecessary; you can consider it more secure.

clear view fencing gauteng

♦Surface Treatment

ITEM	ST1	ST2	ST3	ST4	ST5
Mesh	PRE-EDG+PP	PRE-HDG+PP	PRE-GALFAN+PP	HDG	HDG+PP
Post	PRE-HDG-PP			HDG	HDG+PP

clear view fencing Gauteng Anti Corrosion Treatment

♦PP: Polyester powder coated; EDG: Electric dip galvanised; HDG: Hot-dip galvanised;

♦ST2 PRE-HDG,zinc coating have 3classes(Classes one : 40-60g/sqm; Classes two : 80-100g/sqm; Classes three : 200-300g/sqm);

♦ST3 GALFAN ,zinc aluminum(95%ZN5%AL);

♦ST4 HDG, zinc layer thickness 75-100um.

Application

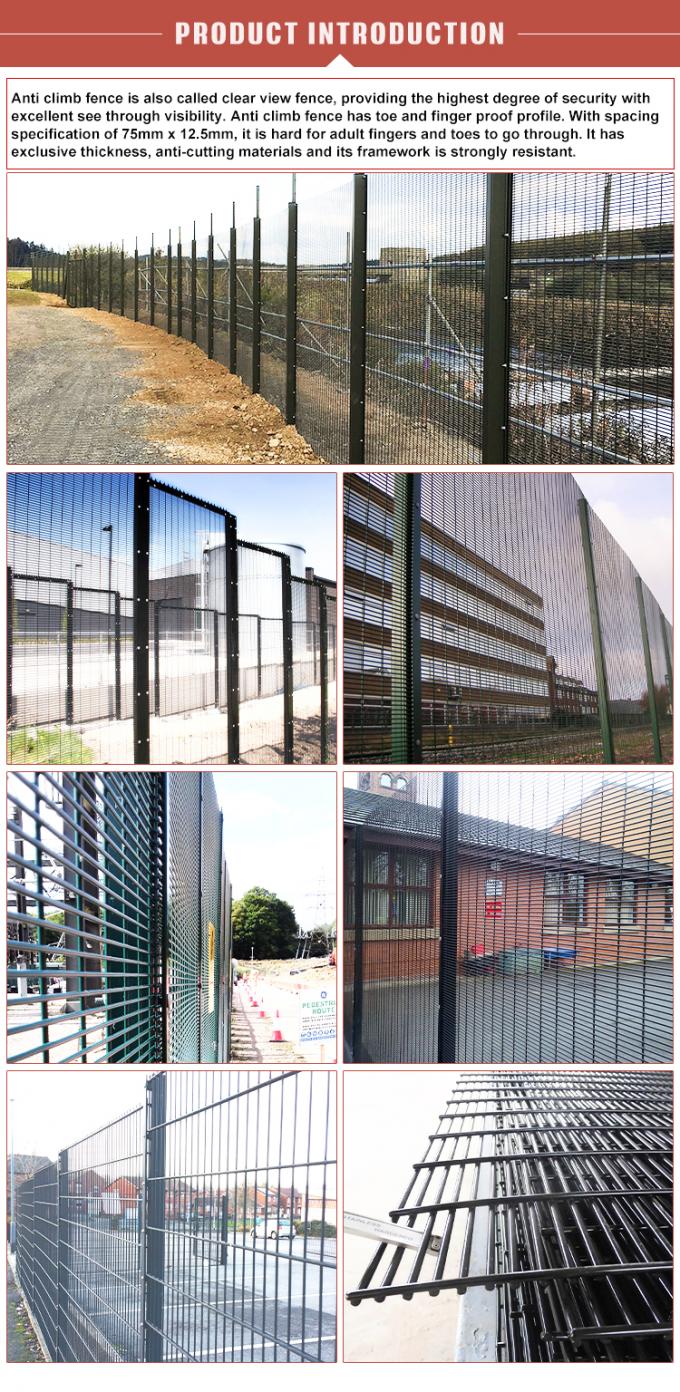

clear view fencing in Gauteng is world-renowned for its performance as an anti-climb & anti-cut through a barrier whilst providing the lowest visual impact to the surroundings. Designed to give attractive, long-lasting and secure perimeter protection for retail, industrial and commercial properties, schools, and public utilities and is ideally suited for electronic alarm and detection systems - no blind spots for CCTV. Military, airports, secure units and prisons.

Colours

clear view fencing Gauteng standard colour is RAL6005 dark green, RAL1021 yellow, RAL 9010 white, RAL9005 black, or your request. Brightly painted and hardly lost its colour.358 High-Security Anti Climb Fence Process And Packing
