Clear View Fencing Low Security

Product No.：LS clear view fence
Price：9.88$ to 22.12$ per pcs
Online Inquiry

What is low security Clear View Fencing?

Low security clear view fencing is an economical solution for those safer areas; 75mmx50 mm clear view fencing is a high-security solution for properties requiring a budget security solution. The fence has a smaller wire arrangement than the EconoSecure fence type, offering high protection at an affordable price. This fence type is ideal for internal fences, residential estates and agricultural holdings.

Production Process

See-through fencing (Security fence) is manufactured with solid black or pre-galvanized low carbon steel wire, then welded in different apertures by a welding machine, and then bent the panels to make it strong and integrity, and finally do a surface treatment like fully hot dipped galvanized, polyester powder coating or plastic (PVC) coating. It comes in various styles with high-security & medium-security fences. The high-quality coating gives the fencing not easily rust and 5-10 years or more service life.

Features

A flat, two-dimensional profile offers good visibility
Anti-vandal fastening
Cost-effective and economical
Sophisticated European style
Finished in plascoat high-quality coating available in 3 standard colours, black 700, Grey 640 and Green 475 or other RAL colours

Fencing Post

The rolled profile post is pre-punched before colour coating applications. The system accommodates uneven ground levels and the most challenging landscape.

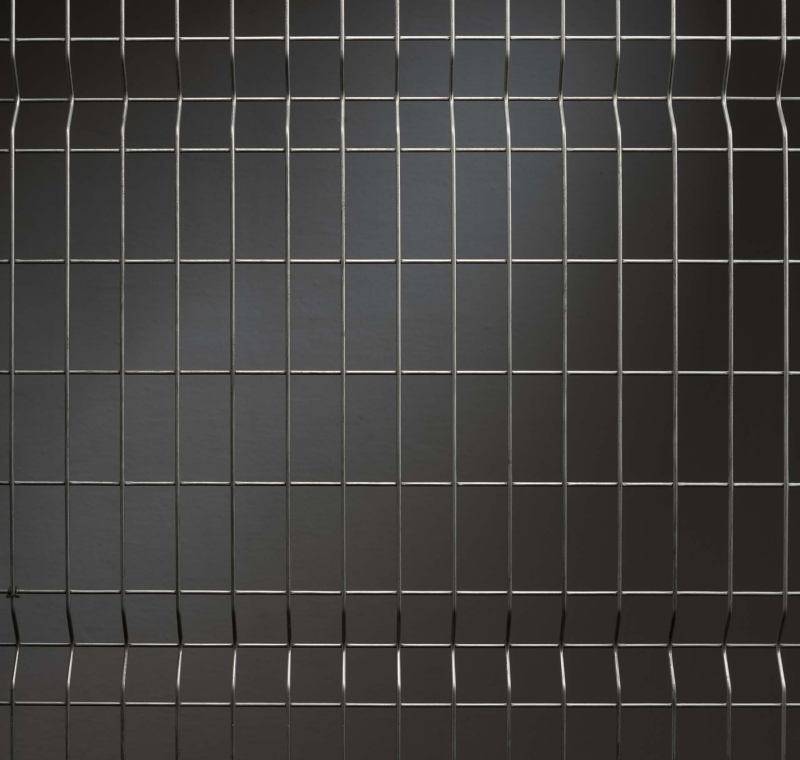

low security clear view fencing Panels

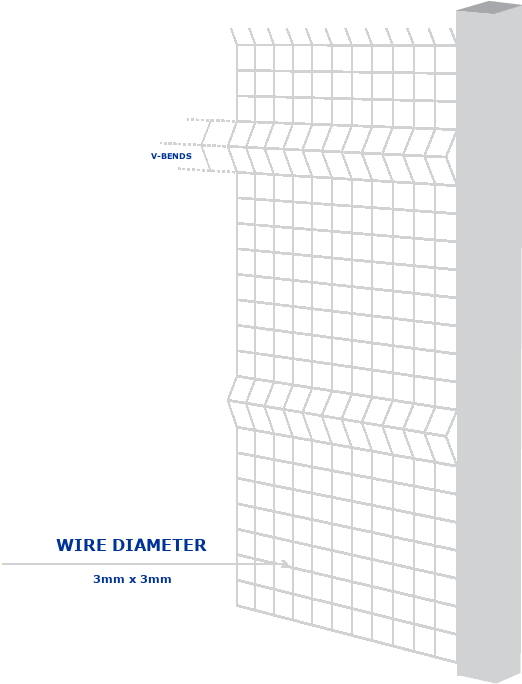

The panel nests securely behind the steel cover plate to form a uniform clamping system with multiple v-bends. The panel is available in 3mm, 4mm or 5.6mm wire and with or without v-bends. Over and above the standard panel, a panel called PRISM MAX with front and back cross wires is also available.

The Fixing low security clear view fencing

The system offers unique fixing detail with no visible fixates.

Tie rod
Stainless steel fixing cleat
Sheer nuts
Washers

The Cap

The low security clear view fencing comes with UV stable Polypropylene cap with a fault line that the caps can remove to extend the front-end cover plate to accommodate additional security options.

Technical Specifications Low Security Clear View Fencing

Height	Length	V-Bends
1800	3000	3
2000	3000	3
2100	3000	3
2400	3000	4
3000	3000	5

Wire diameter	Aperture	Tensile strength	Weld strength
4mm (Vertical) x 3mm (Horizontal) 4mm (Vertical) x 4mm (Horizontal) 3mm (Vertical) x 3mm (Horizontal)	75mm x 12.7mm high security 75mm x 25mm medium security 75mm x 50mm low security	500 - 650 mpa	60% - 80%

Zinc coating
Lightly Galvanised (60g/m²)	Fully Galvanised (275g/m²)	Galfan Coated (220g/m²)
Lightly Galvanised (50g/m²)	Fully Galvanised (255g/m²)	Galfan Coated (195g/m²)

Colour coatings
Powder Coating (60-80 microns)	Thermal Plastic (250 microns min.)	95%Zinc, 5%Aluminium

Finished

Surface treatment of the low security Clear view fence, Surface treatment of the fence is like our clothes to protect our bodies. So we made an excellent surface treatment for the Clearview fence so that the fence can be used for a long time and has no rust.

We have the following types of coating:

Pre galvanized+ powder coating (all colours in RAL available) or alternative optional of PVC coating
Hot Dipped Galvanized(40-60g/m²) + Powder Coating (all colours in RAL available) or alternative optional of PVC coated
Hot Dipped Galvanized after welding (500g/m²)

Free Quote

If you need any low security clear view fencing, please feel free to contact our friendly sales Frank and email is clearviewfence@wiremesh.us; MOQ is 300 meters.
