Hot-Dipped galvanized welded wire mesh

Product No.：Hot-Dipped galvanized welded wire mesh
Price：32.33$ -52.98$ per roll
Service Life：3-10 years
Packing：Plastic film and papers
Colours：Metal Siliver and PVC coated
MOQ：FOB or CIF
Customized：Available
Production Time：7-14 days
Payment Term：TT 30% deposit balance 70% at sight of finished products photo
Certificate：ISO
Materials：Q195 and Q235
Treatement Surface：Hot dipped galvanized ,powder coated ,pvc coated
Online Inquiry

Hot-Dipped galvanized welded wire mesh is one popular material in concrete, construction and industry. It is made of low-carbon and stainless steel wire after welding and surface treatment. Welded wire mesh fabric is widely used in building construction, protection system, filtration, food, agriculture, etc.

Hot-Dipped galvanized welded wire mesh panels/sheets or rolls are generally made of plain steel wire. At the time of processing, it goes through a hot zinc covering process. This type of welded mesh wire with the square opening is ideal for animal cage structuring, fabricating the wire boxes, grilling, partition making, grating purposes and machine protection fencing.


Hot-Dipped galvanized welded wire mesh panels or rolls characteristics: flat and uniform surface, firm structure, good integrity and excellent suitable corrosion resistance.
This type of welded wire has two processing in the manufacturing process, galvanizing welded mesh before or after welding. The galvanized welded wire mesh after welding is better than before for the corner of welding. With hot-dipped galvanizing, the welded wire can prevent corrosion in daily application.

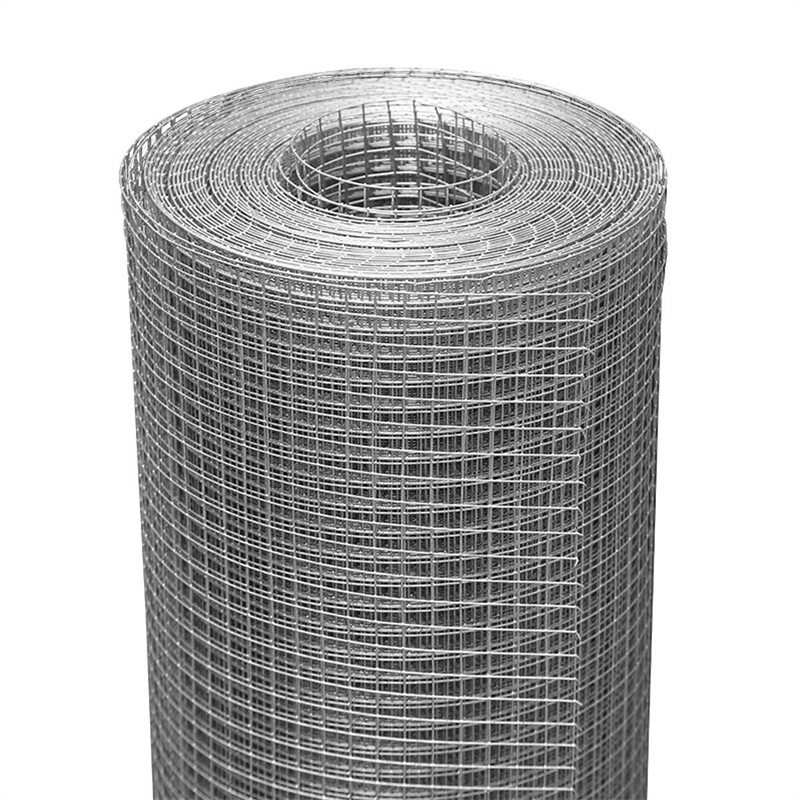

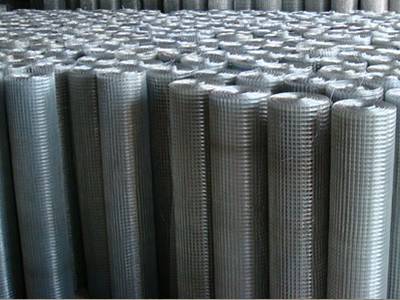

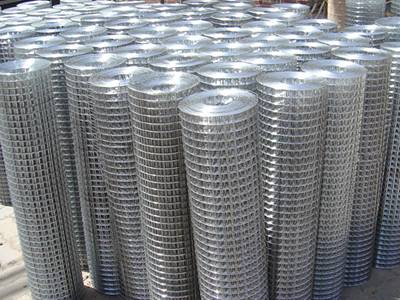

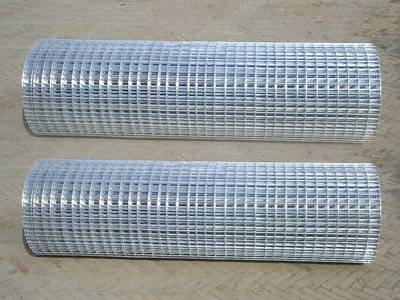

Hot-Dipped galvanized welded wire mesh roll	welded wire mesh rolls.	Hot-Dipped galvanized welded wire mesh rolls in stock

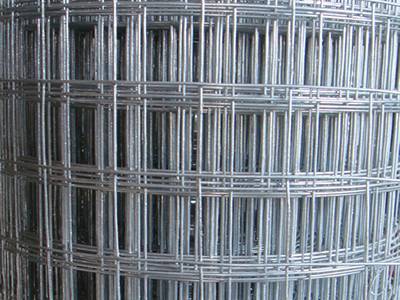

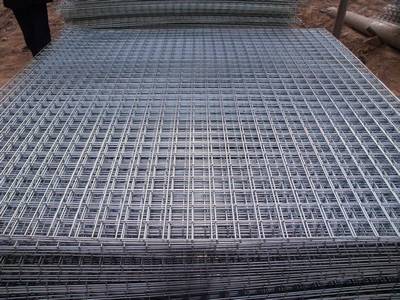

Hot-Dipped galvanized welded wire mesh with bright colour	welded wire mesh panels	Hot-Dipped galvanized welded mesh fence panels/sheets in the plastic film package.

Welded wire mesh specification:

Our Hot Dipped galvanized welded wire mesh is available for many specifications but also other options

Hot dip galvanized welded mesh + PVC coating (Green 6005): 12.7 mm × 12.7 mm / wire diameter internal 0,.65 mm - coated 0.90 mm / roll height 100 cm / roll length 5 m.
Hot dip galvanized mesh (galvanized after welding): 12.7 mm × 12.7 mm / wire diameter 0.65 mm / roll height 50 cm / roll length 5 m.
Hot dip galvanized mesh (after weaving) + PVC coating (Green 6005): mesh 25 mm / wire diameter internal 0.80 mm - coated 1.00 mm / roll height 50 cm / roll length 10 m.
Hot dip galvanized mesh (galvanized after weaving): mesh 13 mm / wire diameter 0.70 mm / roll height 50 cm / roll length 10 m.

Technology info:

Please find out the following standard information of Hot Dipped galvanized welded wire mesh

Diameter: 0.65 +/- 0.025 mm.
Zn-coating: min. 20 g/m².
Tensile strength: 300-450 N/mm².
Elongation: min. 15%.
Carbon: max. 0.10%.
Make-up: 150 kg coils with an internal dia. of +/- 270 mm and an external dia. of +/- 450 mm.

Mesh size		Wire gauge diameter
in mm	in inch	BWG No.	mm
6.4	1/4	24-22	0.56- 0.71
9.5	3/8	23-19	0.64 - 1.07
12.7	1/2	22-16	0.71 - 1.65
15.9	5/8	21-16	0.81 - 1.65
19.1	3/4	21-16	0.81 - 1.65
25.4 × 12.7	1 × 1/2	21-16	0.81 - 1.65
25.4	1	21-14	0.81 - 2.11
38.1	1 1/2	19-14	1.07 - 2.11
25.4 × 50.8	1 × 2	17-14	1.47 - 2.11
50.8	2	16-12	1.65 - 2.77
50.8 to 305	2 to 12

GI square wire mesh specification:

Mesh	Width length	Weight
16 × 16	Three ft. × 100 ft.	24.75 kg/roll
16 × 16	Four ft. × 100 ft.	33 kg/coil
16 × 16	Four ft. × 100 ft.	41.25 kg/coil
16 × 16	5 ft. × 100 ft.	18 kg/coil
40 × 40	One mtr × 100 ft.	20 kg/coil

We have hot galvanized welded wire mesh in large stock:

Hot zinc welded wire mesh	Hot-dip Galvanized welded wire mesh
20 mm × 20 mm × 1.0 mm × 1 m × 30 m 6 kgs	20 mm × 20 mm × 1.0 mm × 1 m × 30 m 16 kg
25 mm × 25 mm × 1.8 mm × 1 m × 30 m	20 mm × 20 mm × 1.00 mm × 1 m × 30 m 16 kg
50 mm × 50 mm × 1.80 mm × 1.5 m × 30 m 30 kgs	50 mm × 50 mm × 1.80 mm × 1.5 m × 30 m 30 kg
50 mm × 25 mm × 1.60 mm × 1 m × 30 m 21 kgs	50 mm × 25 mm × 1.60 mm × 1 m × 30 m 21 kg
50 mm × 25 mm × 1.80 mm × 1.5 m × 30 m 48 kgs	50 mm × 25 mm × 1.80 mm × 1.5 m × 30 m 48 kg

Technical Specification of Hot dipped Galvanized Welded Wire Mesh

Hot Dipped galvanized welded wire mesh differs from other welded wire mesh for its super big wire diameter, opening size, or width. It is welded by special heavy-duty welding machinery.
Galvanized Welded Fencing Mesh is widely used in many fields, mainly for construction, fences for zoo mesh and poultry, safety guards on machines, fencing mesh on highways, sports grounds, guard mesh on the road and so on. It can also be used as a concrete reinforcement bar in construction, road and bridge to strengthen them.

	Mesh	Thickness	Height
	mm	mm	cm
A	06 × 06	0.65	50-150
	13 × 13	0.90
	13 × 25	1.45
	19 × 19	1.45
	25 × 25	1.75
B	13 × 13	1.40	50-200
	13 × 25	1.50
	19 × 19	1.50
	75 × 13	1.90
	50 × 25	1.90
	50 × 50	1.90, 2.80
C	13 × 13	1.20	50-200
	19 × 19	1.20, 1.40
	25 × 25	2.30
