What is Clear View Fence ?
What is Clear View Fence? Is kinds of weld mesh fence include low security 50mmx75mm, and medium security 25mmx75mm worth to mentioned that high-security 12.70mmx75mm, also called ’358 FENCE,' ’3510 fence,' 'anti finger fence,' and 'clear fence'. It is a high-cost version of a steel fence.
The panel is welded with low carbon steel wire, Material Grade: Q195, Surface treatment by Electrostatic polyester powder stray coating(Powder-coated) over galvanized materials. And then, connect the fence panels with posts by suitable clamps(Clips). Due to High-Security Level Clear View Fencing, the 12.7*76.2mm small mesh size is anti-cut & and finger climb.
If you are interested in getting a clear view fencing prices, please, feel free to contact us at clearviewfence@wiremesh.us
Specification Clear View Fencing
Height | Length | V-Bends |
1800 | 3000 | 3 |
2000 | 3000 | 3 |
2100 | 3000 | 3 |
2400 | 3000 | 4 |
3000 | 3000 | 5 |
Wire diameter | Aperture | Tensile strength | Weld strength |
4mm (Vertical) x 3mm (Horizontal) 4mm (Vertical) x 4mm (Horizontal) 3mm (Vertical) x 3mm (Horizontal)
|
75mm x 12.7mm high security 75mm x 25mm medium security 75mm x 50mm low security |
500 - 650 mpa | 60% - 80% |
Zinc coating | ||
Lightly Galvanised (60g/m²) | Fully Galvanised (275g/m²) | Galfan Coated (220g/m²) |
Lightly Galvanised (50g/m²) | Fully Galvanised (255g/m²) | Galfan Coated (195g/m²) |
Colour coatings | ||
Powder Coating (60-80 microns) |
Thermal Plastic (250 microns min.) |
95%Zinc, 5%Aluminium |

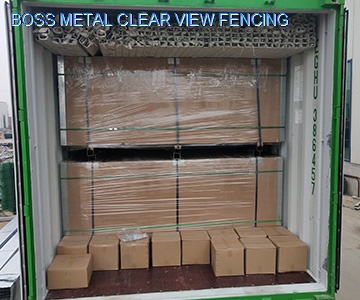

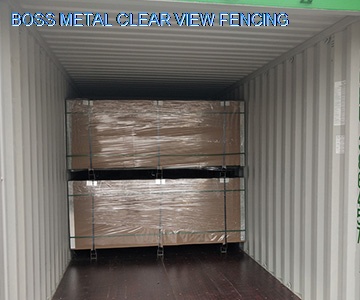

PACKAGE
Accessories Package |

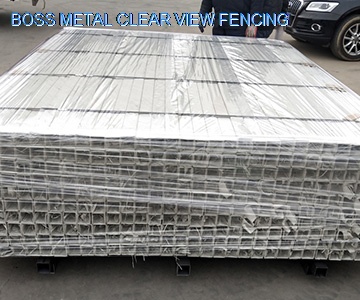

Panel Package |
Post Package |
Features of Clear View Fence?
Lower budget
See-through panel
Anti-rust, Long Service Life
Fast Installation
Customer specs available
Rigidity
COLORS AVAILABLE Clear View Fencing
High-security fence papular colours
High-security fence available colours
Clear-view fence pictures
High-security fence with spikes |
Green colour high-security fence |
Hot dip galvanized high-security fence |
Blue colour high-security fence |
Vertical mesh high-security fence |
clear view fencing with razor wire |
Clearvu fence for Warehouse |
Gates |
1
HEIGHT:1700mm / 1800mm / 2000mm / 2200mm/2400mm
The heavy wires guarantee strength and rigidity.
2
WIDTH: 2300mm/2400mm / 2500mm / 2900mm
2900mm option can reduce installation & post cost by approx 20% when compared with a 2.5m wide panel.
If the panel is higher than 2300mm, we suggest a 2300mm wide panel to suit the container size.
3
WIRE THICKNESS: 3.0mm/4.0mm / 4.5mm / 5.0mm
358 fence=3" × 0.5" ×8 gauge wire(4.0mm)
3510 fence=3" × 0.5" ×10 gauge wire(3.1mm)
A thicker wire can offer stronger rigid
4

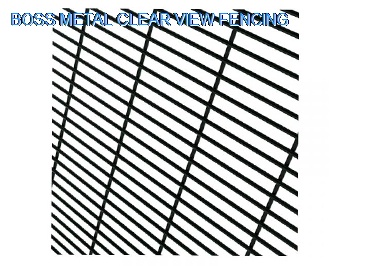

MESH SIZE (Aperture)
A: 50*76.2mm(Basic Option)
B: 25*76.2mm(Standard Option)
C: 12.7*76.2mm(Premium Option)
A Basic Option |
B Standard Option |
C Premium Option |
Three opinions for rigid.
A: 3D OPTION
B: 2D OPTION
C: 2D with additional wire
A: 3D OPTION |
B: 2D OPTION |
C: 2D with additional wire |

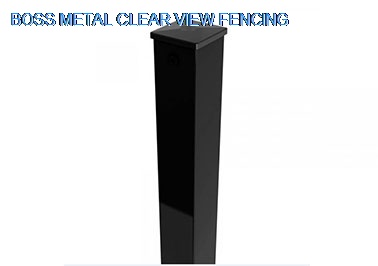

Clear View Fencing POST:
A: Square post: 60*60mm
B: Round post: φ60mm
C: "I " post: 70*44mm
D: IPE POST:100*55MM
A Square post |
B Round post |
C "I" post |
D IPE POST |
CONNECTION
- A: Spider Clamp with square post
- B: Spider Clamp with IPE post (Double quantity clamps)
- C: FLAT BAR with Square post
A: Metal Spider Clips |
B |
C |
Clear View Fencing Spider Clamp
A |
B |
C |
8

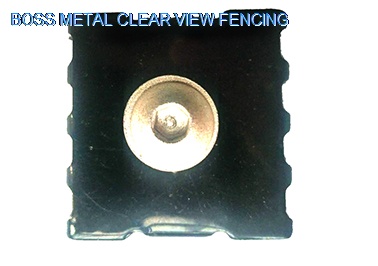

POST CAP:
- A: anti-UV plastic cap
- B: metal cap
Anti-UV plastic cap |
Metal cap |
9
Surface Treatment(Anti-Rust Treatment):
- Electric Galvanized(8-12g/m²) + Polyester Powder Coated (All colors in Ral)
- Electric Galvanized(8-12g/m²) + PVC Coated
- Hot Dipped Galvanized(40-60g/m²) + Polyester Powder Coated (All colors in Ral)
- Hot Dipped Galvanized(40-60g/m²) + PVC Coated
- Hot Dipped Galvanized after welding (505g/m²)
- Galfan(200g/m²) + Polyester Powder Coated (All colours in Ral)
- Galfan(200g/m²) + PVC Coated
NOTE:
Be manufactured using galvanized steel wire.
Be coated with an exclusive Architectural Grade Powder Coat.
This coating is super-durable and environmentally sound. Our powder coating provides the industry's Highest Weather ability and Gloss Retention in U.V. Exposure.
Up to 3 times longer than competitor's powder coatings
Hot Dipped Galvanized |
Powder Coating |
PVC Coating |
RELATED ACCESSORIES Clear View Fencing
Barbed Wire |
Bolts with Sheer-nut |
Bolt with Rivet Nut |
Concertina Razor Wire |
Spike B |
Flat Wrap Razor Wire |
V Arm A for Square Post |
Spike A |
V Arm B for IPE Post |
What We Need To Prepare
GOODS:
One panel.
One post with a rain hat.
Clips(4-7 clips for 2m high fence).
1. Clamp |
2. Clear View Fencing POST |
3. Clear View Fencing Panels |

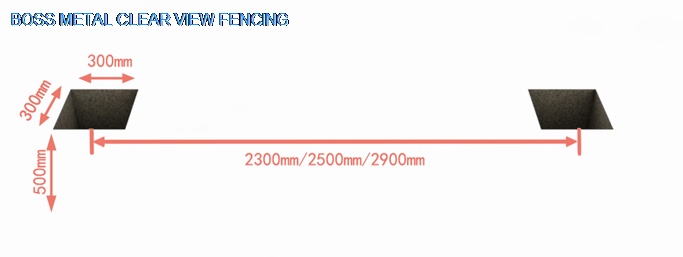

Measure and mark the post location as per the panel width. Dig holes for posts. In common, the post is 500mm longer than the panel. So 300*300*500mm is ok. |
|

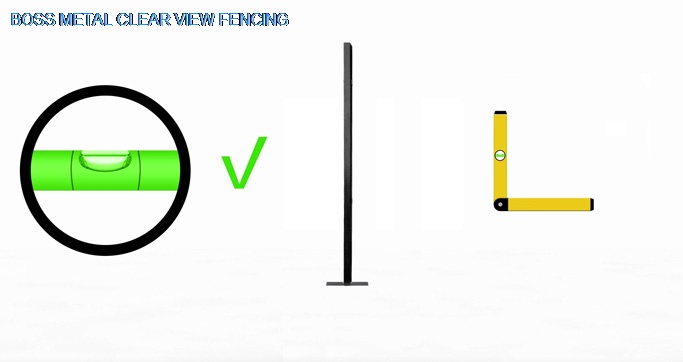

Install the post with concrete. Each post must be set perfectly plum in the concrete. |
|

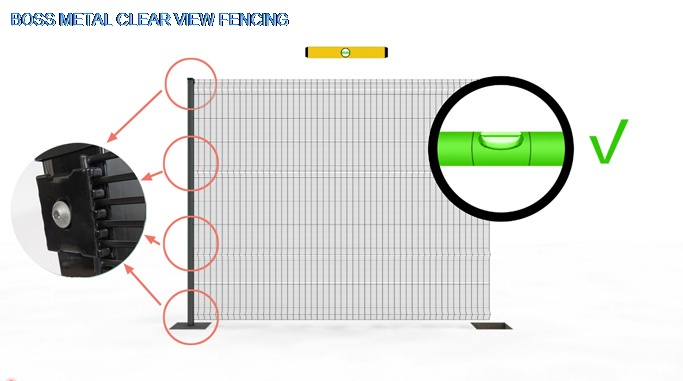

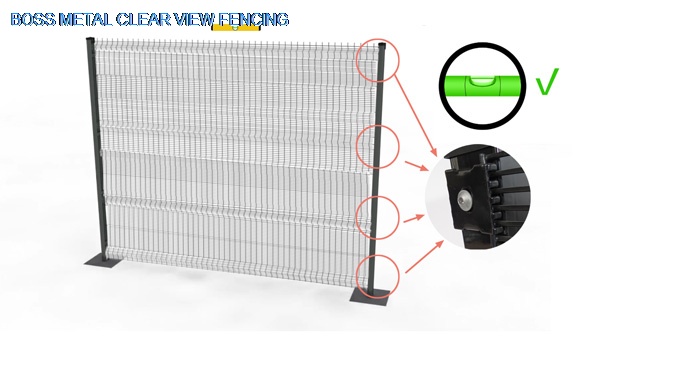

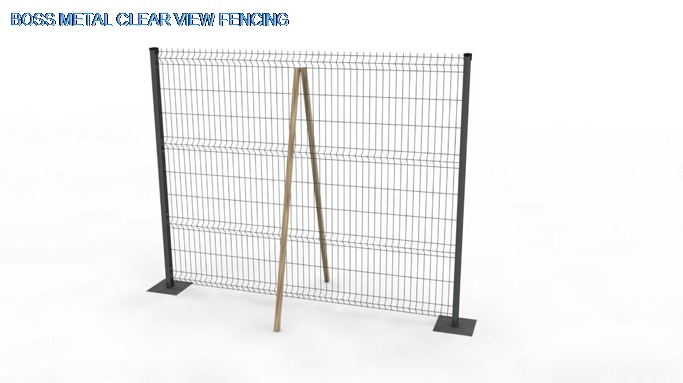

Install one panel to post with clips. |
|
Install the second post with concrete. Each post must be set perfectly plum in the concrete. |
|
Fix the fence; The cement will set in a few hours |
