ClearVu fencing for government buildings military bases correctional facilities

ClearVu fencing for government buildings military bases correctional facilities

Product No.：2023227103710
Price：12.14$ to 97.23$ per meter
Service Life：5-10 years

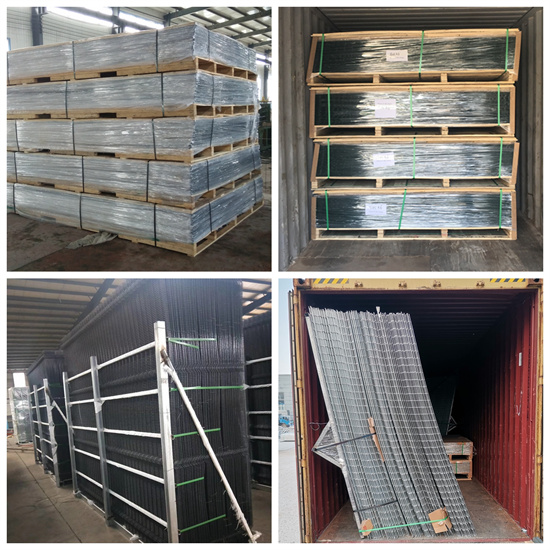

Packing：Metal Stillage
Colours：All RAL colours
MOQ：300 meters
Customized：Available
Production Time：14 days
Payment Term：TT 30% deposit balance 70% at sight of finished products photo
Certificate：ISO
Materials：Q195 and Q235
Treatement Surface：Hot dipped galvanized ,powder coated ,pvc coated
Online Inquiry

Clearvu fencing is a type of fencing that consists of panels made of vertical steel bars that are evenly spaced apart. These panels are attached to horizontal steel posts that are embedded in the ground or attached to a concrete base. The result is a fence that is transparent and offers an unobstructed view of the area it encloses.

When installing clear view fencing, it's important to ensure that the posts are properly anchored to the ground to prevent the fence from toppling over or being easily breached. This may involve digging holes for the posts and filling them with concrete, or using specialized base plates to anchor the posts to a concrete surface.

In addition to providing visibility, clear view fencing panels are also valued for its durability and low maintenance requirements. The steel panels and posts are typically galvanized to prevent rust and corrosion, and may also be coated with a layer of powder paint to add further protection and enhance the aesthetic appeal of the fence.

Overall, clear view fencing is a popular choice for a range of applications, including securing industrial and commercial sites, public areas, and residential properties.

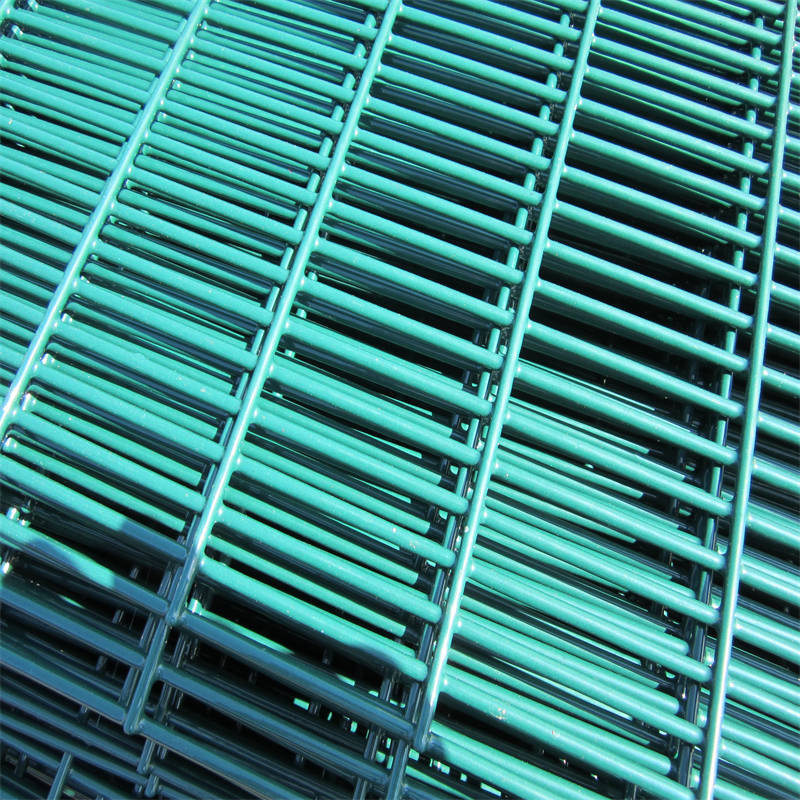

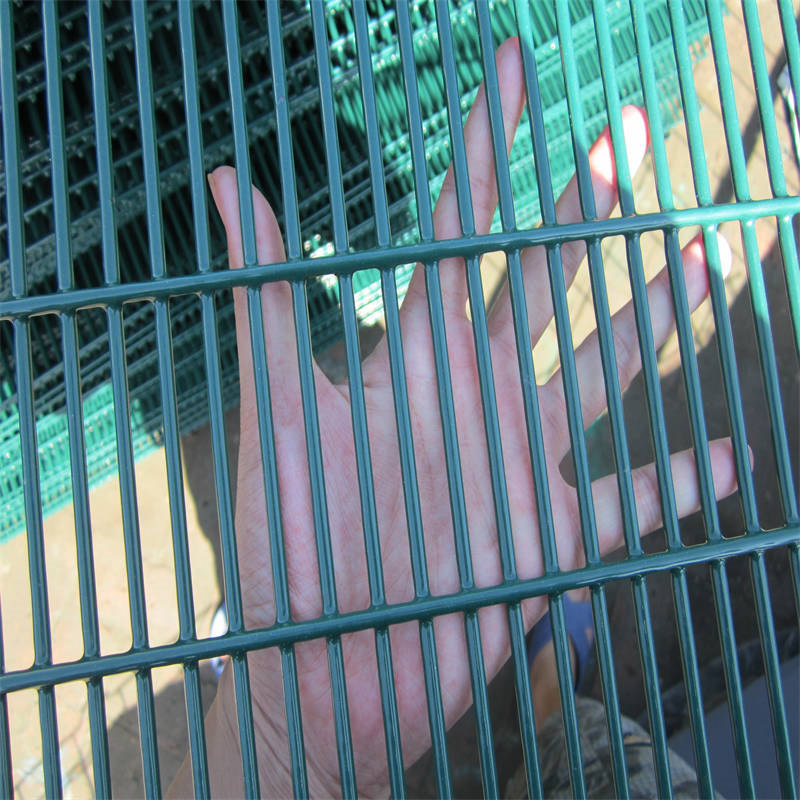

High Security Level Clearvu Fencing Panels

Height (mm)	Length (mm)	V-Bends	Wire Diameter (mm)	Aperture (mm)	Tensile Strength (mpa)	Weld Strength (%)	Zinc Coating	Color Coating
1800	3000	3	4 (vertical) x 3 (horizontal)	12.7 x 75	500 - 650	60 - 80	Lightly Galvanized (60g/m²) / Fully Galvanized (275g/m²) / Galfan Coated (220g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
2000	3000	3	4 (vertical) x 3 (horizontal)	12.7 x 75	500 - 650	60 - 80	Lightly Galvanized (60g/m²) / Fully Galvanized (275g/m²) / Galfan Coated (220g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
2100	3000	3	4 (vertical) x 3 (horizontal)	12.7 x 75	500 - 650	60 - 80	Lightly Galvanized (60g/m²) / Fully Galvanized (275g/m²) / Galfan Coated (220g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
2400	3000	4	4 (vertical) x 3 (horizontal)	12.7 x 75	500 - 650	60 - 80	Lightly Galvanized (50g/m²) / Fully Galvanized (255g/m²) / Galfan Coated (195g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
3000	3000	5	4 (vertical) x 3 (horizontal)	12.7 x 75	500 - 650	60 - 80	Lightly Galvanized (50g/m²) / Fully Galvanized (255g/m²) / Galfan Coated (195g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum

Medium Security Clearvu Fencing Panels

Height (mm)	Length (mm)	V-Bends	Wire Diameter (mm)	Aperture (mm)	Tensile Strength (mpa)	Weld Strength (%)	Zinc Coating	Color Coating
1800	3000	3	4 (vertical) x 3 (horizontal)	25 x 75	500 - 650	60 - 80	Lightly Galvanized (60g/m²) / Fully Galvanized (275g/m²) / Galfan Coated (220g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
2000	3000	3	4 (vertical) x 3 (horizontal)	25 x 75	500 - 650	60 - 80	Lightly Galvanized (60g/m²) / Fully Galvanized (275g/m²) / Galfan Coated (220g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
2100	3000	3	4 (vertical) x 3 (horizontal)	25 x 75	500 - 650	60 - 80	Lightly Galvanized (60g/m²) / Fully Galvanized (275g/m²) / Galfan Coated (220g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
2400	3000	4	4 (vertical) x 3 (horizontal)	25 x 75	500 - 650	60 - 80	Lightly Galvanized (50g/m²) / Fully Galvanized (255g/m²) / Galfan Coated (195g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
3000	3000	5	4 (vertical) x 3 (horizontal)	25 x 75	500 - 650	60 - 80	Lightly Galvanized (50g/m²) / Fully Galvanized (255g/m²) / Galfan Coated (195g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum

Low Security Clearvu Fencing Panels

Height (mm)	Length (mm)	V-Bends	Wire Diameter (mm)	Aperture (mm)	Tensile Strength (mpa)	Weld Strength (%)	Zinc Coating	Color Coating
1800	3000	3	4 (vertical) x 3 (horizontal)	50x75/100/200	400 - 500	50 - 75	Lightly Galvanized (50g/m²) / Fully Galvanized (255g/m²) / Galfan Coated (195g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
2000	3000	3	4 (vertical) x 3 (horizontal)	50x75/100/200	400 - 500	50 - 75	Lightly Galvanized (50g/m²) / Fully Galvanized (255g/m²) / Galfan Coated (195g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
2100	3000	3	4 (vertical) x 3 (horizontal)	50x75/100/200	400 - 500	50 - 75	Lightly Galvanized (50g/m²) / Fully Galvanized (255g/m²) / Galfan Coated (195g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
2400	3000	4	4 (vertical) x 3 (horizontal)	50x75/100/200	400 - 500	50 - 75	Lightly Galvanized (50g/m²) / Fully Galvanized (255g/m²) / Galfan Coated (195g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum
3000	3000	5	4 (vertical) x 3 (horizontal)	50x75/100/200	400 - 500	50 - 75	Lightly Galvanized (50g/m²) / Fully Galvanized (255g/m²) / Galfan Coated (195g/m²)	Powder Coating (60-80 microns) / Thermal Plastic (250 microns min.) / 95% Zinc, 5% Aluminum

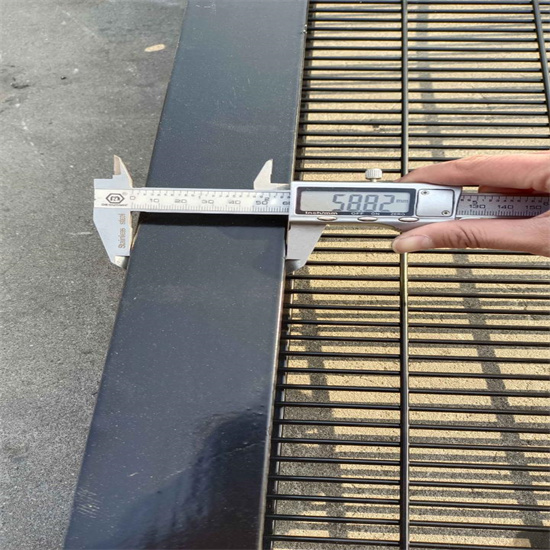

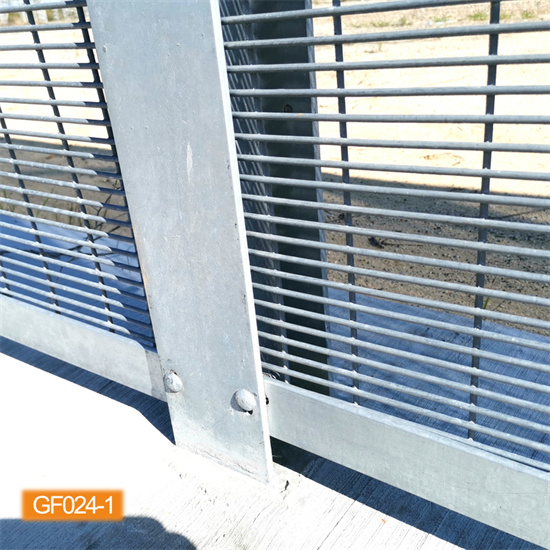

Specifications of Clearvu Fencing Post

Post Type	Shape	Dimensions (mm)	Material	Post Thickness (mm)
RHS pipe	Rectangular Hollow Section	60 x 80	Galvanized tube (40-600g zinc), black tube	1.5, 1.8, 2, 2.5, 3
SHS pipe	Square Hollow Section	60 x 60, 75 x 75	Galvanized tube (40-600g zinc), black tube	1.5, 1.8, 2, 2.5, 3
H post	H-shaped	55 x 100	Galvanized tube (40-600g zinc), black tube	1.5, 1.8, 2, 2.5, 3
C post	C-shaped	60 x 80	Galvanized tube (40-600g zinc), black tube	1.5, 1.8, 2, 2.5, 3
CHS	Circular Hollow Section	60, 76	Galvanized tube (40-600g zinc), black tube	1.5, 1.8, 2, 2.5, 3

Applications

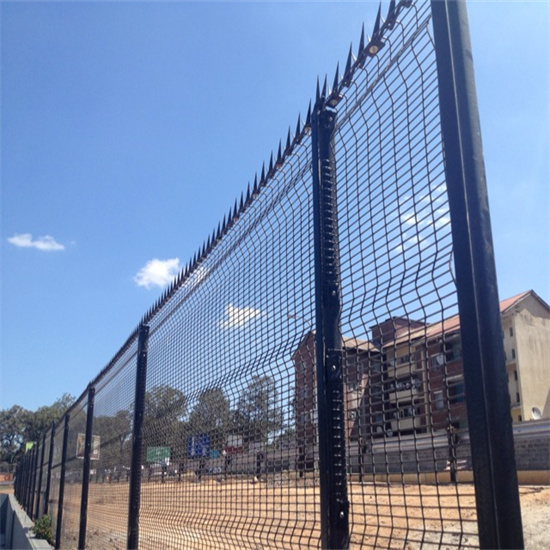

ClearVu fencing is a type of high-security fence made of high-quality steel and designed with narrow apertures and anti-climb features. It has several applications in various industries, including:

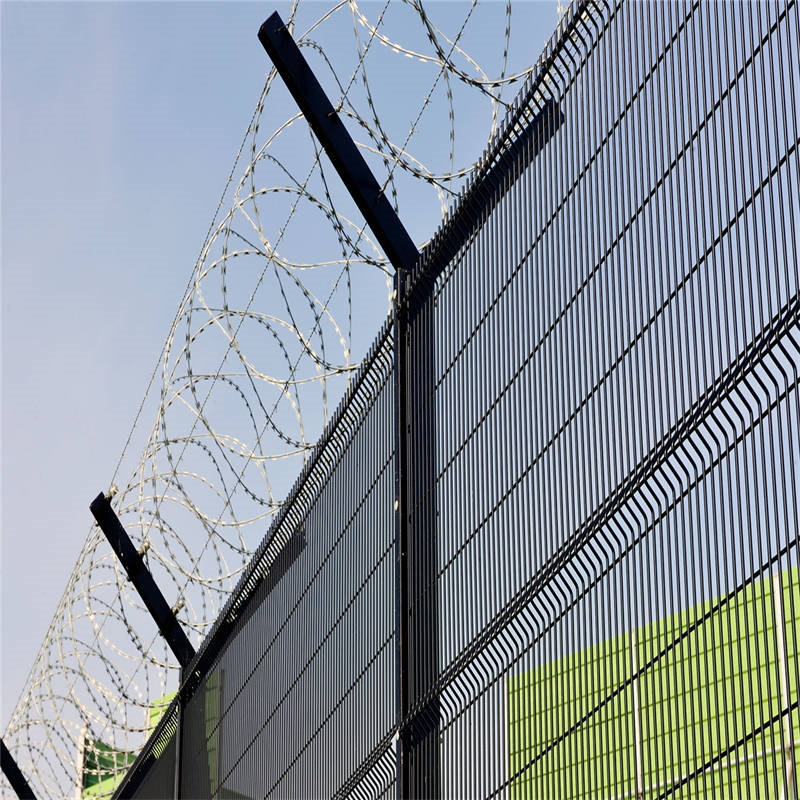

Perimeter security: ClearVu fencing is widely used for perimeter security in commercial and industrial properties, government buildings, and military installations. Its anti-climb features and narrow apertures make it difficult for intruders to breach the fence, making it an ideal choice for high-security areas.
Border security: ClearVu fencing is also used for border security to prevent illegal crossings and protect national borders. Its clear visibility feature allows border patrol agents to monitor activities on the other side of the fence, making it easier to detect any attempted breaches.
Critical infrastructure protection: ClearVu fencing is also used to protect critical infrastructure such as power stations, water treatment plants, and telecommunication facilities. Its high-security features make it an ideal choice for protecting these vital facilities against vandalism, theft, and sabotage.
Public safety: ClearVu fencing is also used for public safety applications such as in schools, hospitals, and public parks. It helps to create a safe and secure environment for people, especially children and vulnerable groups.

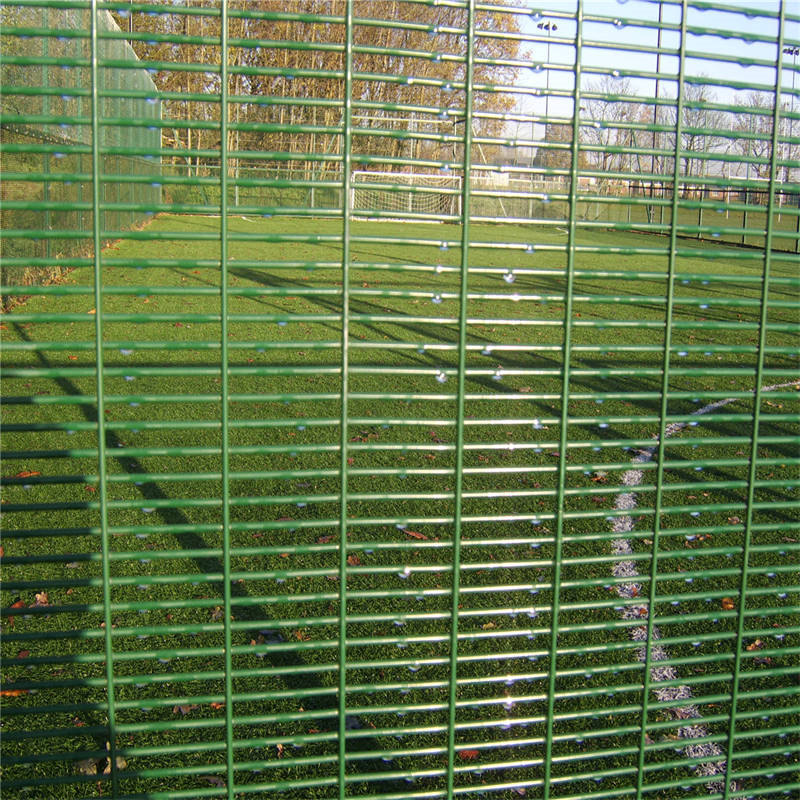

Sports and recreation: ClearVu fencing is used in sports and recreation facilities such as tennis courts, football fields, and swimming pools. It helps to prevent unauthorized access, vandalism, and theft of equipment, making these facilities safe and secure for users.

Overall, ClearVu fencing is a versatile high-security fence that can be used in various applications where safety and security are a top priority. Its unique design and features make it an ideal choice for protecting critical infrastructure, borders, commercial properties, and public spaces.

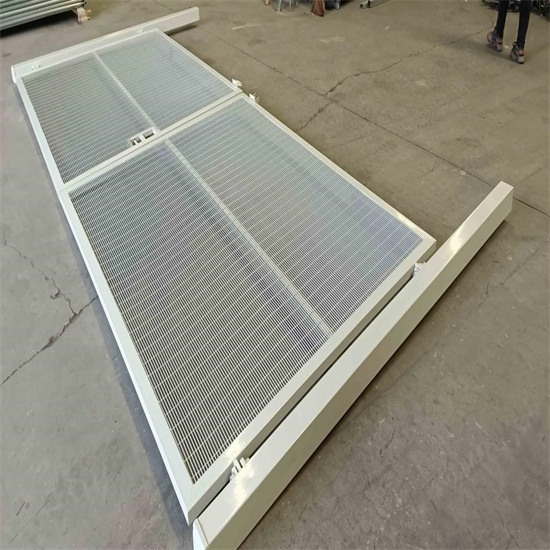

Types of Clearvu Fencing Gates

ClearVu fencing gates are designed to provide secure access to areas protected by ClearVu fencing. These gates are typically made of the same high-quality steel as ClearVu fencing panels and are designed to match the look and security features of the fence.

There are several types of ClearVu fencing gates, including:

Pedestrian gates: These gates are designed for foot traffic and are typically installed at entrances to buildings, parks, or other public areas. They are usually small and narrow, making them difficult to climb or breach.
Vehicle gates: These gates are designed to allow vehicles to pass through the fence, such as at a parking lot or a checkpoint. They can be manual or automated and can be equipped with various security features, such as access control systems or surveillance cameras.
Sliding gates: These gates slide horizontally on tracks and are often used in areas with limited space or where a swing gate is not practical. They are also useful for areas where the ground is uneven or sloped.
Swing gates: These gates swing open and closed like a door and are typically used for larger openings. They can be single or double gates and are often equipped with locking mechanisms to ensure security.

ClearVu fencing gates are designed to work seamlessly with ClearVu fencing panels, providing a complete high-security perimeter solution. They are available in various sizes and styles to match the specific needs of the application and can be customized to meet specific security requirements.
