clearvu fencing for sale

Product No.：clearvu fencing for sale
Price：12.9usd to 32.33usd per meter
Service Life：15 years -20 years
Packing：Metal Stillage Wrapped with Plastic Film
Colours：All RAL colours for Vinyl Coated One
MOQ：Hot dipped Galvanized ,Powder Coated
Customized：Available
Production Time：14 days
Payment Term：TT 30% deposit balance 70% at sight of finished products photo
Certificate：ISO
Materials：Q195 and Q235
Treatement Surface：Hot dipped galvanized ,powder coated ,pvc coated
Online Inquiry

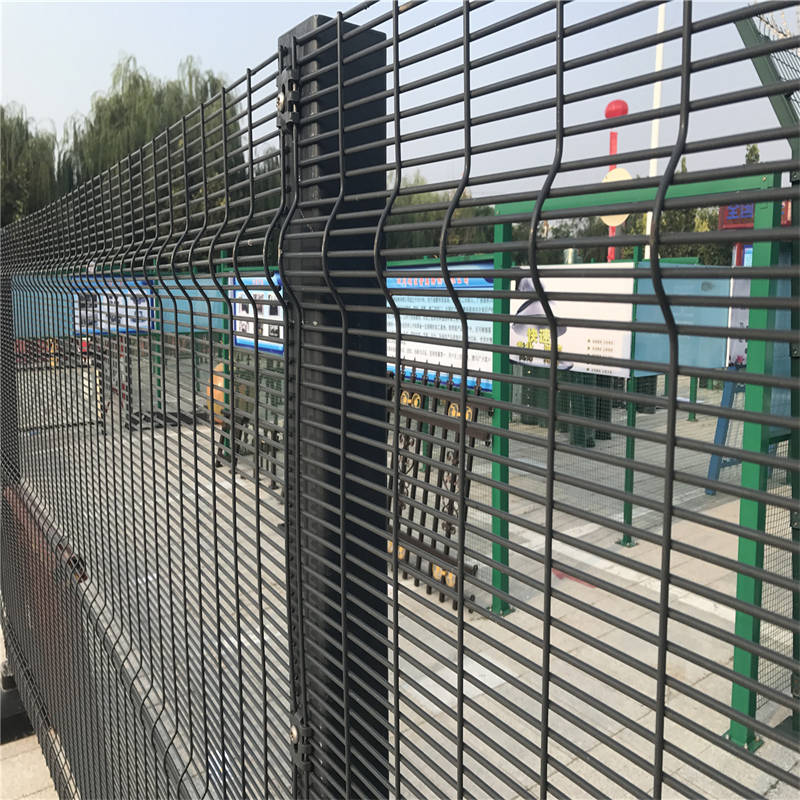

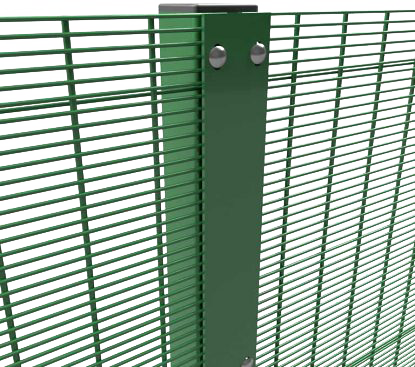

clearvu fencing for sale, the ultimate heavy-duty welded mesh panel providing the highest degree of security with excellent see-through visibility, is also called an anti-climb fence for sale. 358 security fence has toe and finger proof profile. With a spacing specification of 75mm x 12.5mm, fingers and toes can't go through.

Our clear view fencing is perfect as a guarded fence system because of its exclusive thickness anti-cutting materials, and its framework is robust, resistant and hard to uninstall. With our excellent anti-climb fence supply, clients can enjoy the most significant relaxation and secured protection from the inside of their own.

clearvu fencing for sale to penetrate, with the small mesh aperture being effectively finger-proof and extremely difficult to attack using conventional hand tools. clearvu fencing for sale is recognized as one of the most difficult to break through the barrier because it is difficult to climb. It is called security fencing and high-strength fencing. 358 security fencing panels can be bent to enhance the aesthetic effect.

high-security clearvu fencing for sale
	Material	Low carbon steel wire, Al-Mg alloy wire
	Machining	Braiding and welding
	Standard length	2m,2.5m
	Height	1.8m,2m,2.4m,2.7m,3.0m,4.0m,5.2m
	Mesh	75mm x 12.5mm
	Weft	4mm x 12.5mm
	Diameter wire	4mm x 75mm
	Pipe diameter	2.5mm

Factory Direct Supply High Security Anti climb 358 Fence

358 fence Panel Features

High-Density weld configuration provides a finger-proof, anti-climb barrier.
High delay factor
Extremely difficult to cut using conventional wire cutters
Excellent through visibility due to 4.00mm* wire diameter & rectangular mesh configuration
Compatible with most electronic alarm and detection systems

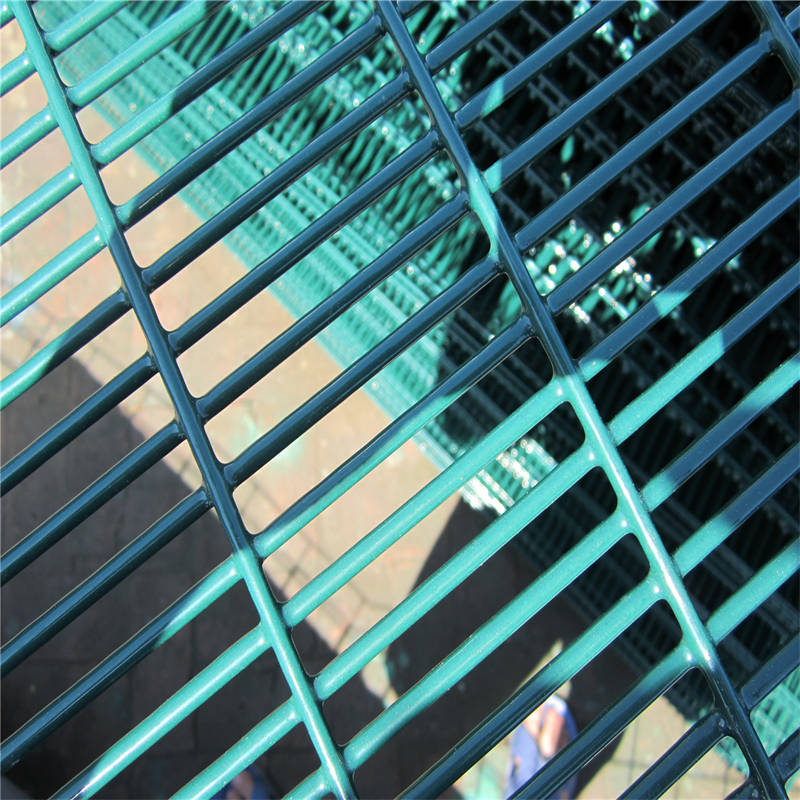

76.2mm x 12.7mm (3” x ½”) mesh aperture, wire centre to wire centre
Range of heights available from 1207mm to 5207mm
358 fence Weld strength is a minimum of 70% of wire strength before welding
The solidity of 36%

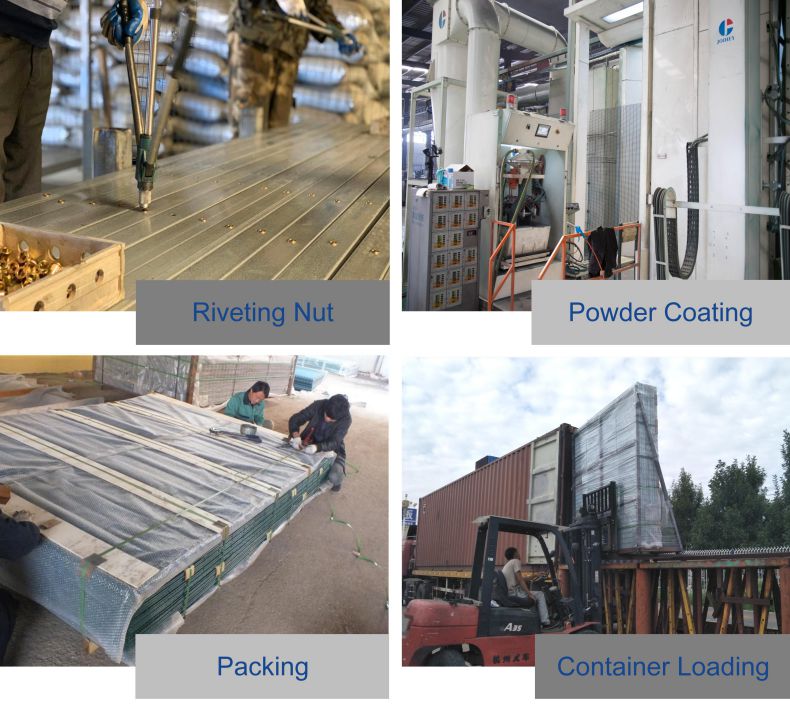

clearvu fencing for sale Packing

1>it has a rubber mat at the bottom of the pallet to prevent the pallet from destroying the panels;

2>it has 4 metal corners to keep the pallet more strong;

3>it has a metal plate under the plastic bandage to reduce the pressure of fence panels;

4>it has a wooden plate at the top of the fence panel, protecting the fence panels from being crushed by other pallets.

Fence Post:

A cap covers each fence post (save your installing time and cost of labour), then with plastic film, then metal pallet.

Fence Accessories:

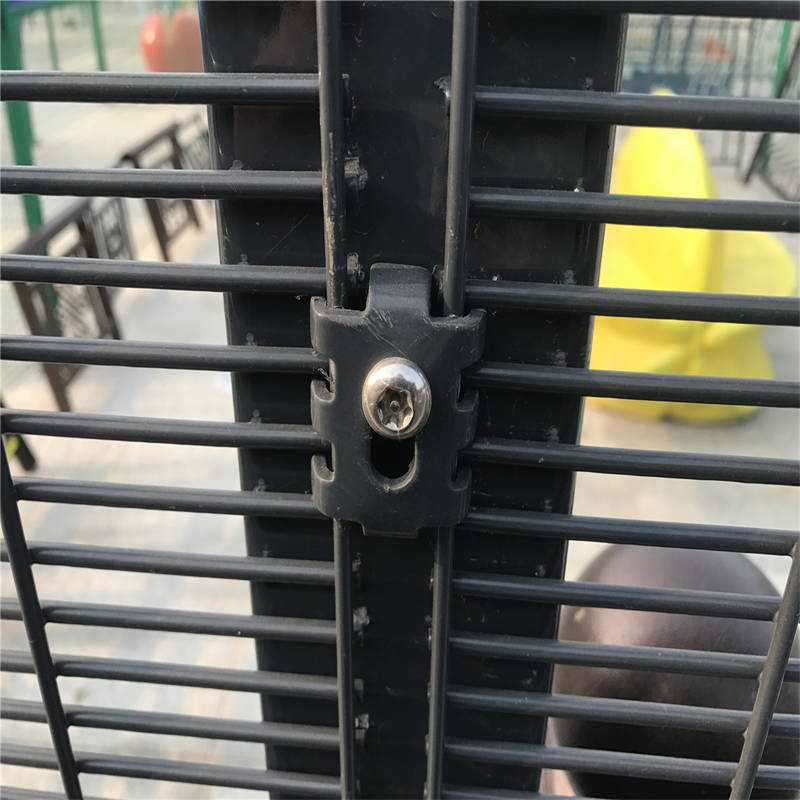

Clips and screws are packed in sets, plastic film, + carton boxes.

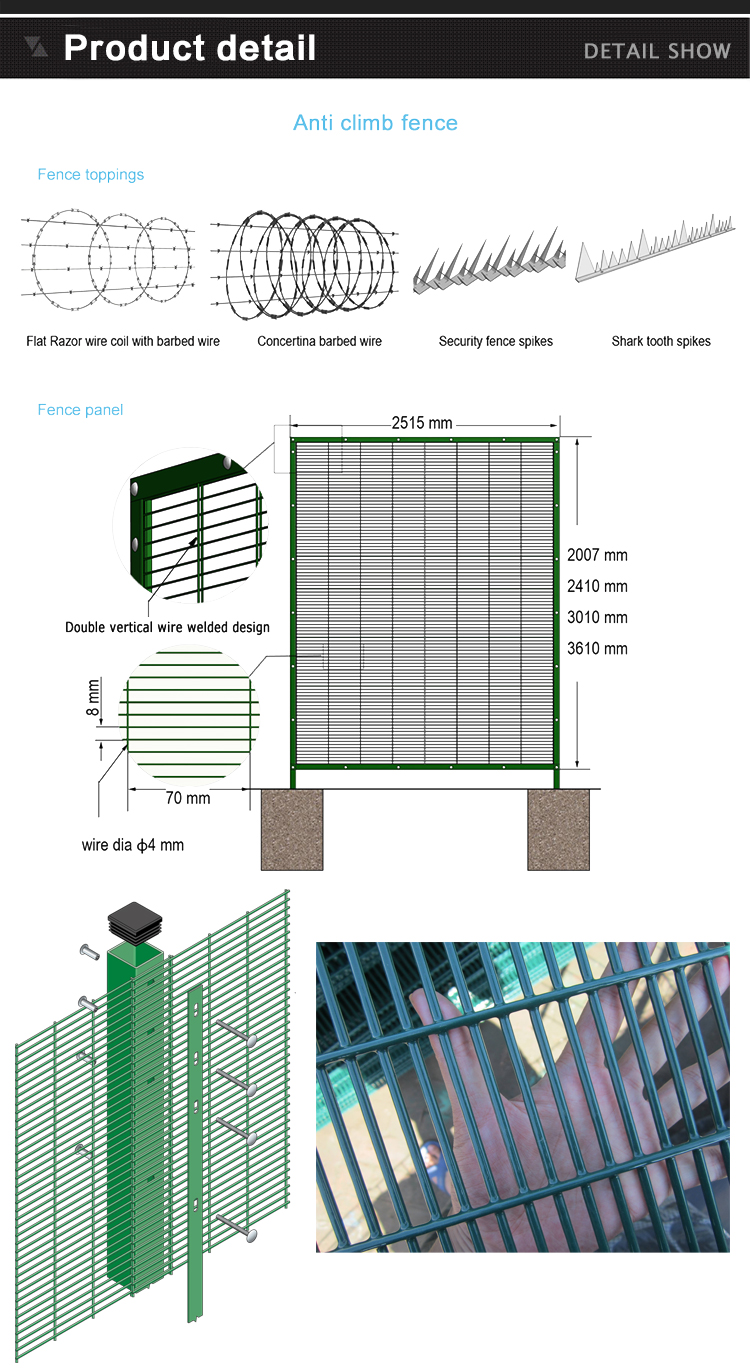

Specification clearvu fencing for sale


Fence Height (m)	Panel size (Height×Width)	Fence Post (Height ×Size × Thick )	Clamp Bar (Height ×Width × Thick )	Clamp No (PCS)
2.0	2007×2515mm	2700×60×60×2.5mm	2007×60×5.00mm	7 or 14
2.4	2400×2515mm	3100×60×60×2.5mm	2400×60×5.00mm	9 or 18
3.0	2997×2515mm	3800×80×80×2.5mm	2997×80×6.00mm	11 or 22
3.3	3302×2515mm	4200×80×80×2.5mm	3302×80×6.00mm	12 or 24
3.6	3607×2515mm	4500×100×60×3.0mm	3607×100×7.00mm	13 or 26
3.6	3607×2515mm	4500×100×100×3.0mm	3607×100×7.00mm	13 or 26
4.2	4204×2515mm	5200×100×100× 4.0mm	4204×100× 8.00mm	15 or 30
4.5	4496×2515mm	5500×100×100× 5.0mm	4496×100×8.00mm	16 or 32
5.2	5207×2515mm	6200×120×120×5.0mm	5207×100×8.00mm	18 or 36

Clear View Panel Finish Options

Standard Galvanised wire finish (typically 80-100g/m² of Zincprior to Welding / fabrication)
clearvu fencing for sale made of Galfan wire finish (typically 275-300g/m2 of Zn/Al alloy before Welding / fabrication)
All 358 fence panels can be offered with a triple coat anti-corrosion architectural finish consisting of Galvanised / Galfan wire + zinc phosphate pre-treatment + 100-micron Polyester coating to give long-lasting protection against the elements.

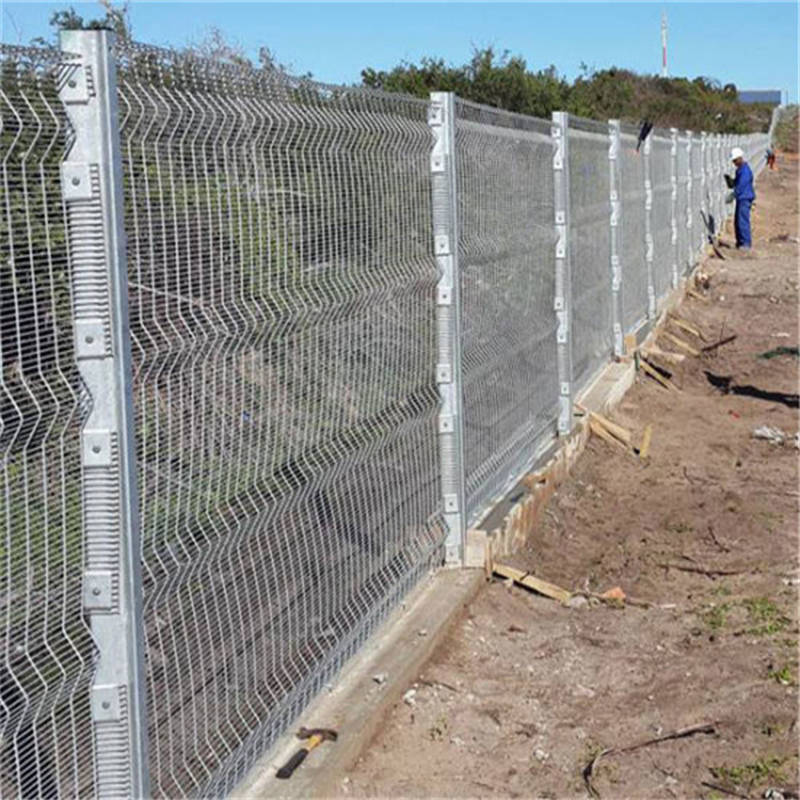

Where the application specifically demands a heavy-duty security mesh design to meet specifications, including the use of CCTV, or where a visual deterrent is a primary consideration, our 358 Security Mesh system provides an ideal solution for a wide variety of high-security perimeter and access control applications.

358 Anti Climb Security Fence
