Clear Vu fence

Product No.：Clear Vu fence
Price：12.88$ to 42.33$ per kits
Service Life：5 years -15 years

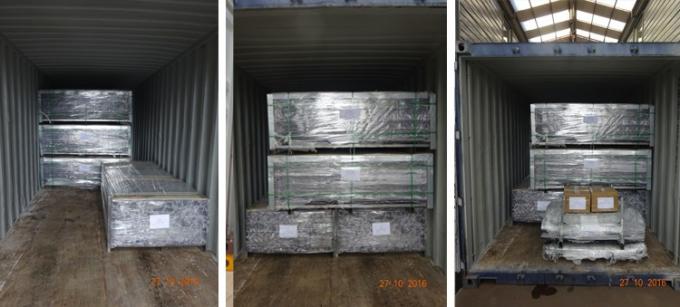

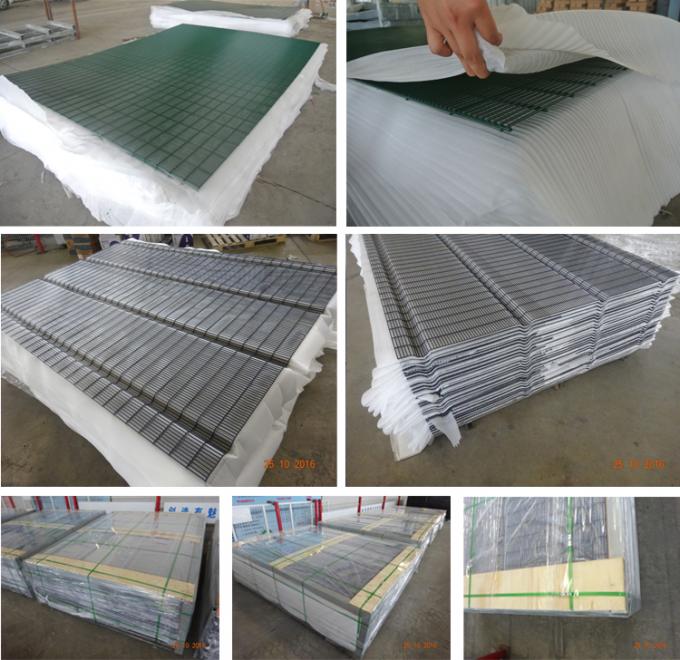

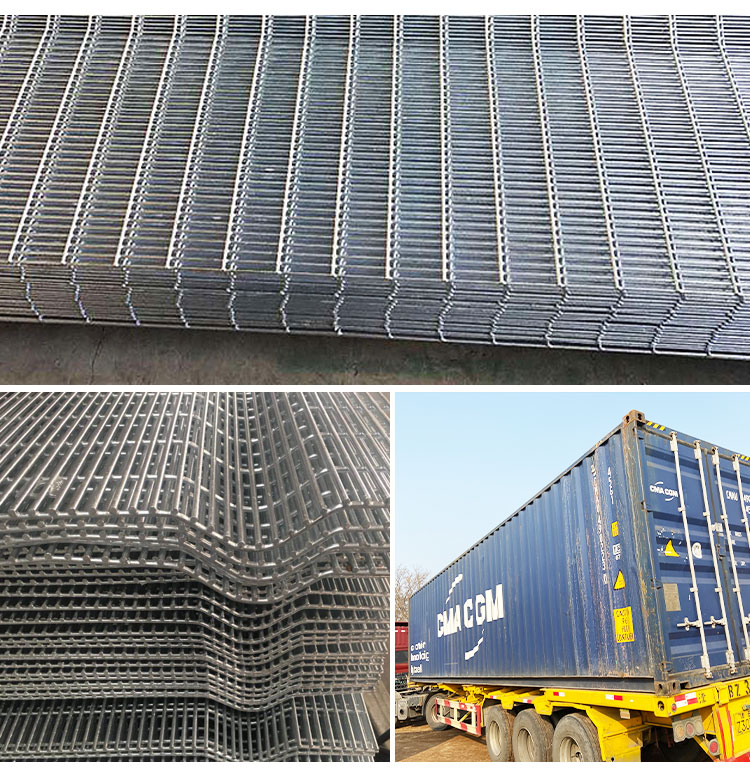

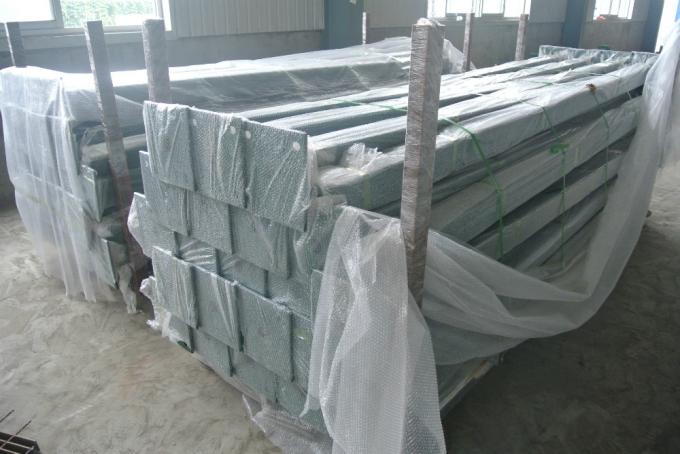

Packing：Metal Stillages
Colours：All RAL colours for Vinyl Coated One
Customized：Available
Production Time：14 days
Payment Term：TT 30% deposit balance 70% at sight of finished products photo
Certificate：ISO ASTM CE
Materials：Q195
Treatement Surface：Hot dipped galvanized ,powder coated ,pvc coated
Online Inquiry

Clear Vu fence is a beautiful yet seriously secure fencing solution popular among many applications thanks to its excellent strength, erection simplicity, and intrusion-resistant anti-climb properties. Proven in prison environments, 358 anti-climb rigid mesh fencing is virtually impossible to climb or break through. Contact us today to see if 358 rigid mesh fencing suits your property.

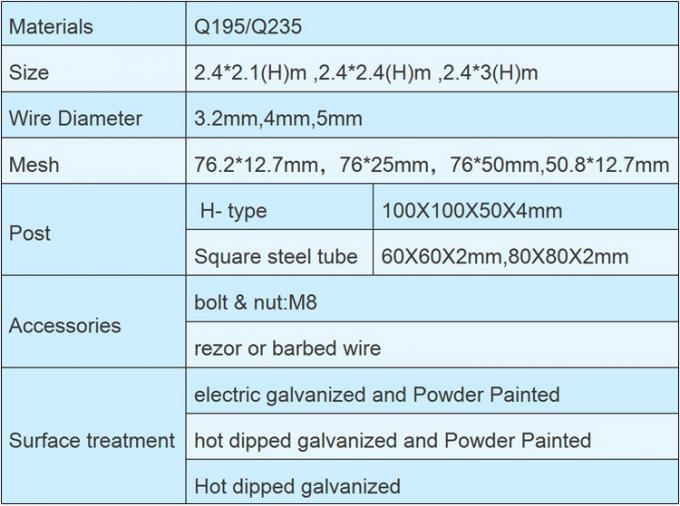

Clear View Fencing specification

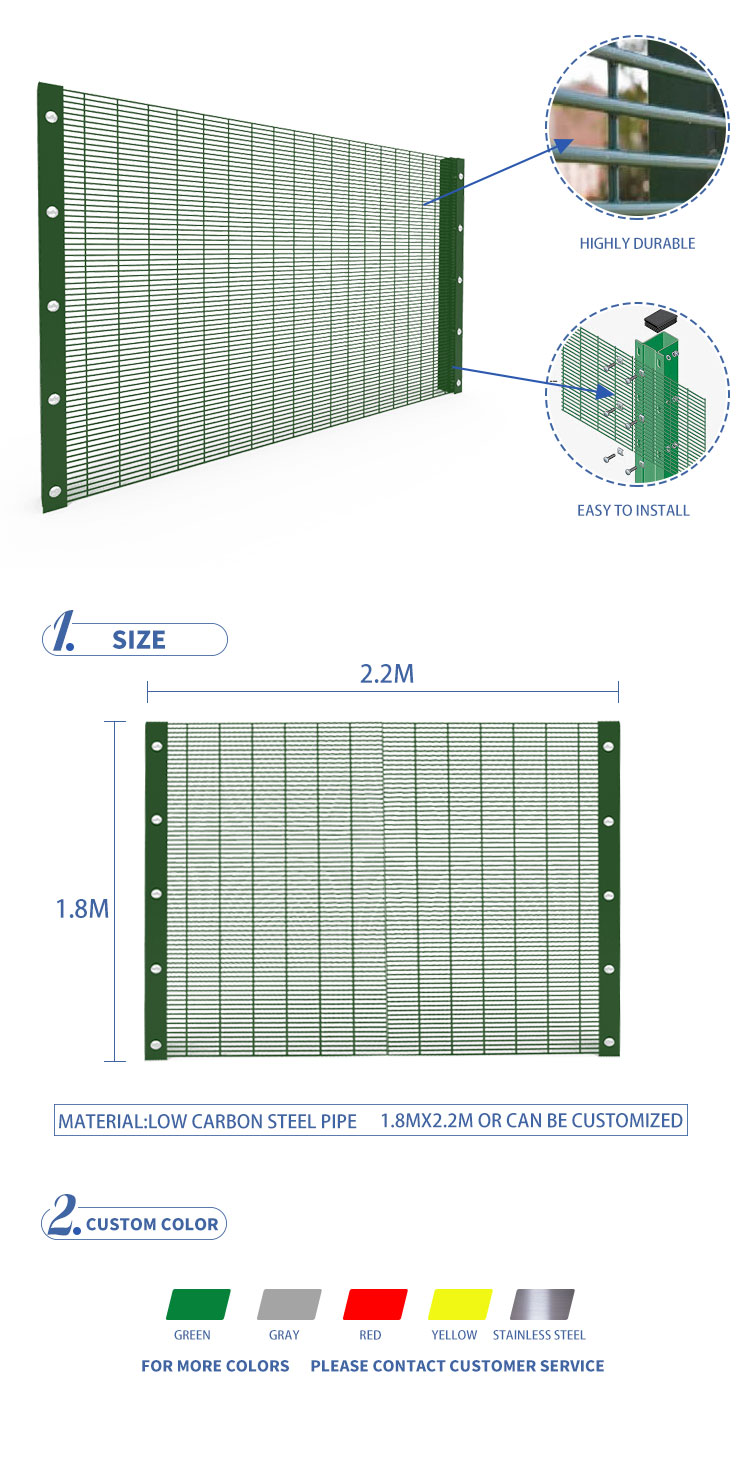

Mesh panel heights: 1.8 m, 2.0 m, 2.2 m, 2.4 m, 3.0 m, larger sizes by special request.
Mesh panel width: 2.515 m.
Coatings: Hot dipped galvanized before welded, then polyester coated black, green, or white colour.
Panel bends: 45 mm rigidity bends.
Post with the plastic top cap.

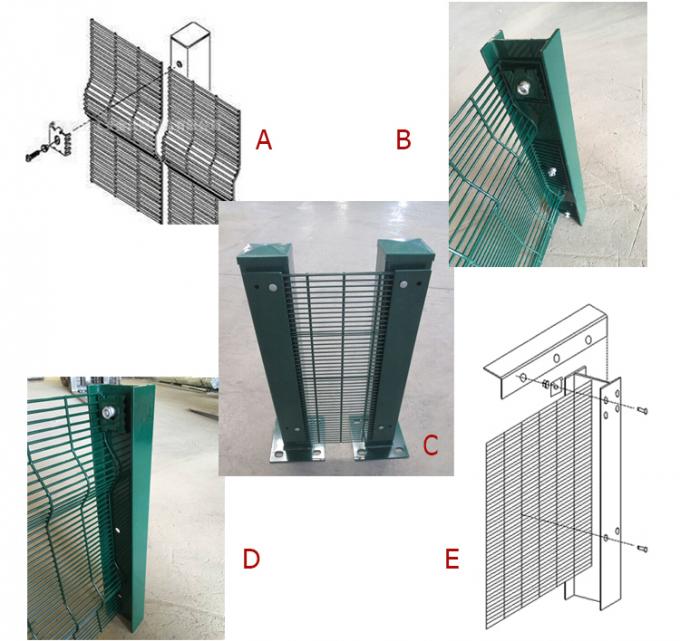

Fixing: clamps and blot.
Security fencing toppings: fence spikes, razor wire, electrified fencing.
Clear-view fencing panel options are high, medium, and low.

Parameters -1 clear view fencing


Security options	Aperture	Vertical Wire Thickness	Horizontal Thickness	Features
High Security	76 mm × 12.5 mm	4 mm	3.5 mm	most secure, anti-cut, anti-climb, highly visible
Medium Security	76 mm × 25 mm	4 mm	4 mm	anti-cut, and highly visible
Low Security	76 mm × 50 mm	4 mm	4 mm	anti-cut, and highly visible, cost-effective

Table 2: Clear view fencing installation posts and clamps
Fence height	Panel size height × width	Posts section	Post length	No.of bends	No. of clamps
1800 mm	1800 mm × 2515 mm	60 × 60 × 2 mm	2400 mm	4	16
2000 mm	2000 mm × 2515 mm	60 × 60 × 2 mm	2600 mm	4	16
2200 mm	2200 mm × 2515 mm	60 × 60 × 2 mm	2800 mm	4	16
2400 mm	2400 mm × 2515 mm	80 × 80 × 3 mm	3000 mm	4	16
3000 mm	3000 mm × 2515 mm	80 × 80 × 3 mm	3600 mm	5	20

Parameters Clear Vu fence

Panel Dimensions wire centre to wire centre	Mesh Configuration wire centre to wire centre	Wire diameter	Approx Panel Weight	Pallet Quantities	Galvanised Wire Panels (class D*) Standard Sizes	Galfan Coated Wire Panel (Class A**) Standard Sizes
2515 x 1207mm	76.2 x 12.7mm	3.95mm	27.2kg	50	Y	Y
2515 x 1270mm	76.2 x 12.7mm	3.95mm	28.6kg	50	Y	Y
2515 x 1829mm	76.2 x 12.7mm	3.95mm	41.1kg	25	Y	Y
2515 x 2134mm	76.2 x 12.7mm	3.95mm	47.8kg	25	Y	Y
2515 x 2438mm	76.2 x 12.7mm	3.95mm	54.6kg	25	Y	Y
2515 x 2705mm	76.2 x 12.7mm	3.95mm	60.6kg	25	Y	Y
2515 x 2997mm	76.2 x 12.7mm	3.95mm	67.1kg	20	Y	Y
2515 x 3302mm	76.2 x 12.7mm	3.95mm	73.9kg	20		Y
2515 x 4204mm	76.2 x 12.7mm	3.95mm	94.0kg	15		Y
2515 x 5207mm	76.2 x 12.7mm	3.95mm	116.4kg	10		Y

Application:

Clear Vu Fence is anti-climb & anti-cut through the barrier; 358 welded wire extra high-security fence is designed with maximum security. It is ideally suitable for electronic alarm and detection systems, fencing in prisons, military sites, airports, industrial and commercial properties, warehouses, power plants, offshore petrochemical facilities, seaport Perimeter, laboratories, secure hospitals, schools, parks, and leisure and recreational areas. Clear Vu Fence will give them long-lasting and secure perimeter protection with an attractive appearance. Generally, a 3.60 m height fence is used in schools, parks, leisure and recreational areas, 5.20 m height fence is widely used in prison and military establishments.

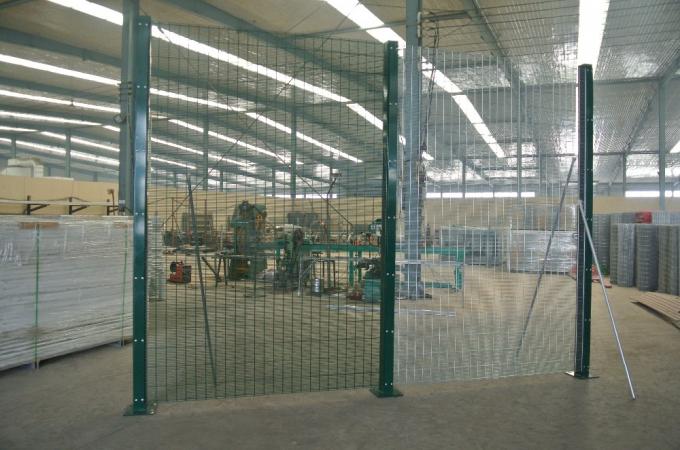

Anti Resistant Clear Vu Fence Panels / Clearvu Fencing Highly Attractive 0

Anti Resistant Clear Vu Fence Panels / Clearvu Fencing Highly Attractive 1

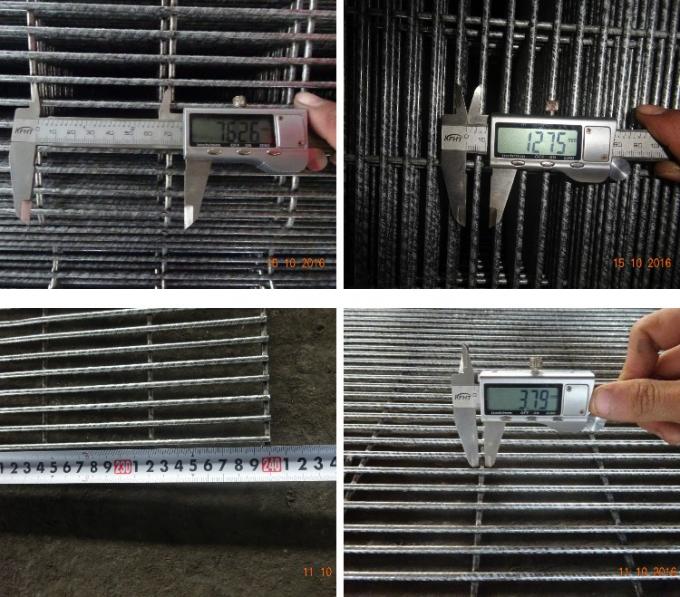

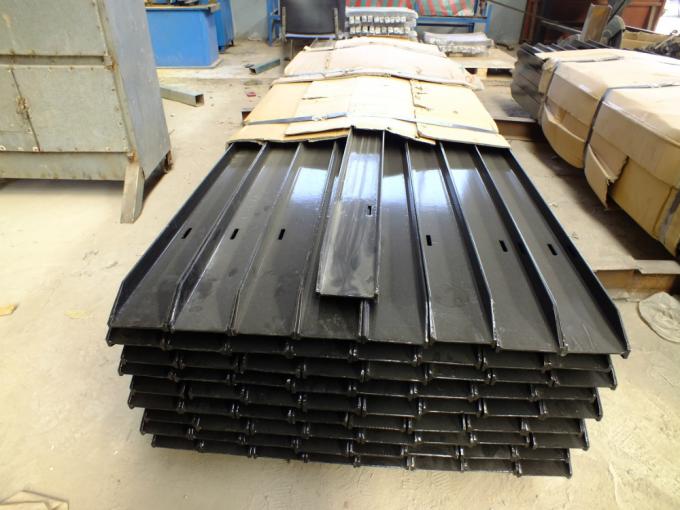

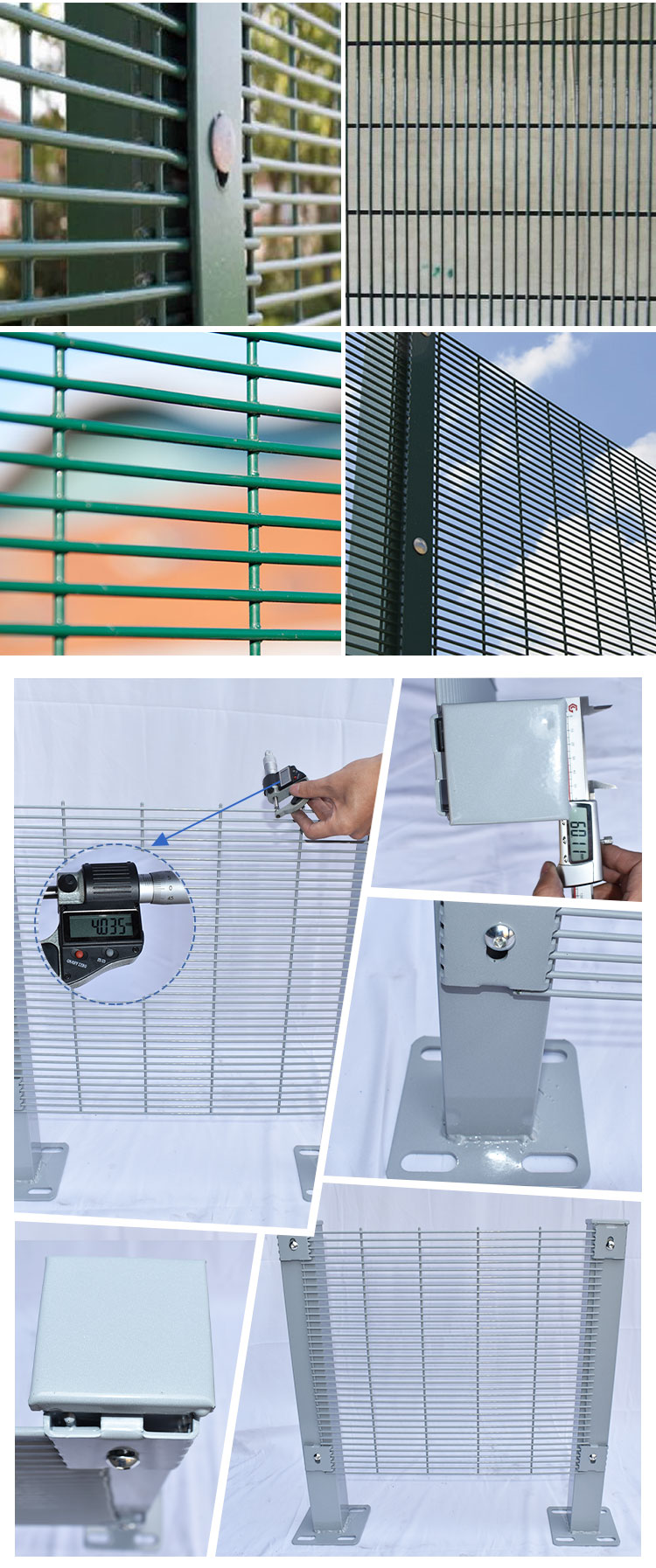

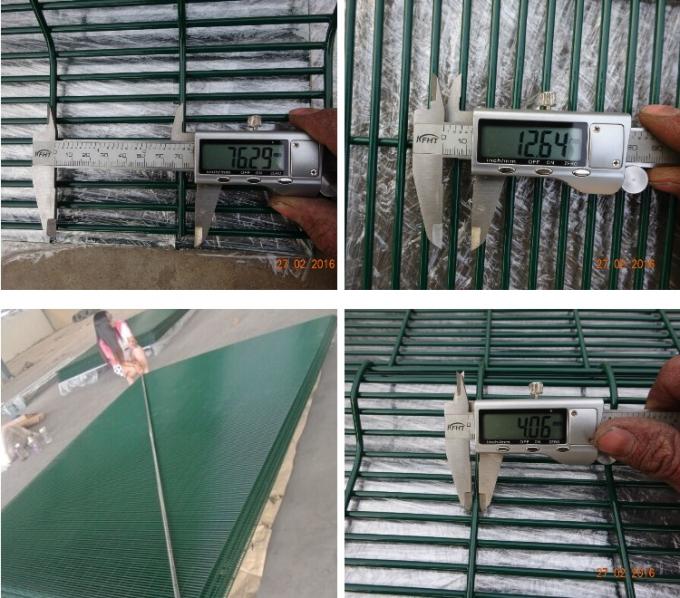

Details Images Clear Vu Fence

Anti Resistant Clear Vu Fence Panels / Clearvu Fencing Highly Attractive 2

Anti Resistant Clear Vu Fence Panels / Clearvu Fencing Highly Attractive 3

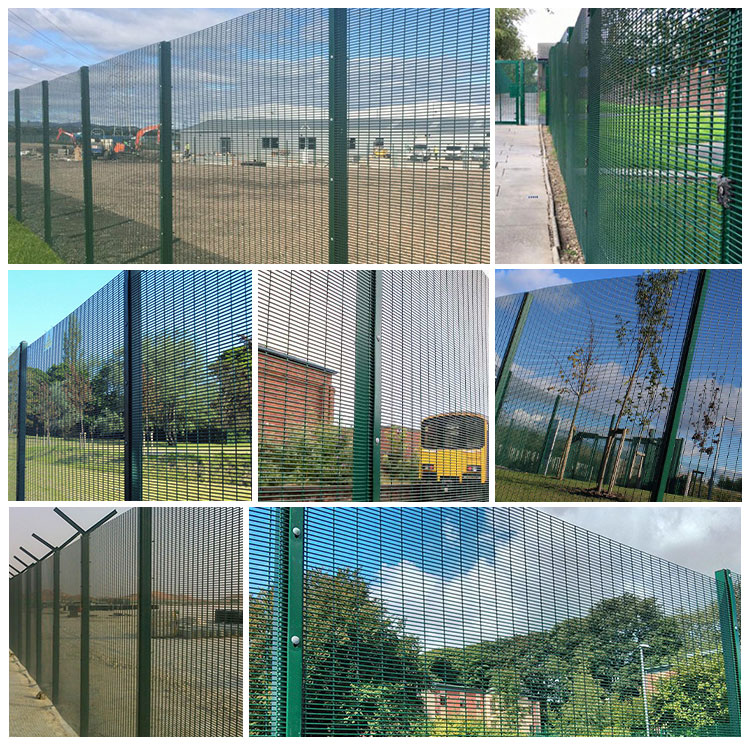

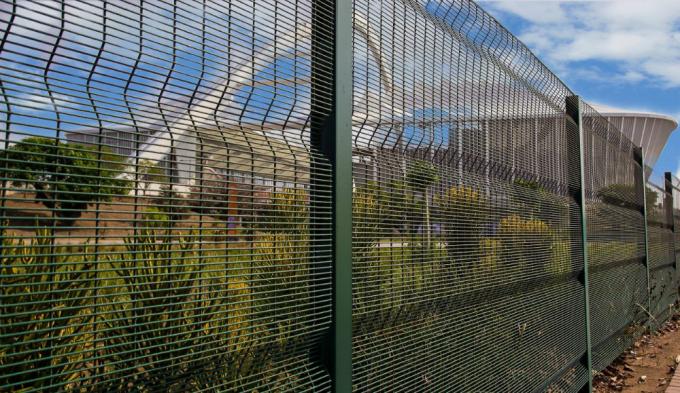

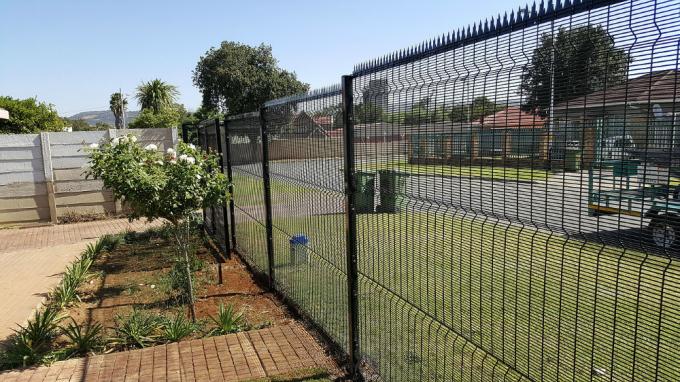

Applications clear vu f

Anti Resistant Clear Vu Fence Panels / Clearvu Fencing Highly Attractive 4

Anti Resistant Clear Vu Fence Panels / Clearvu Fencing Highly Attractive 5

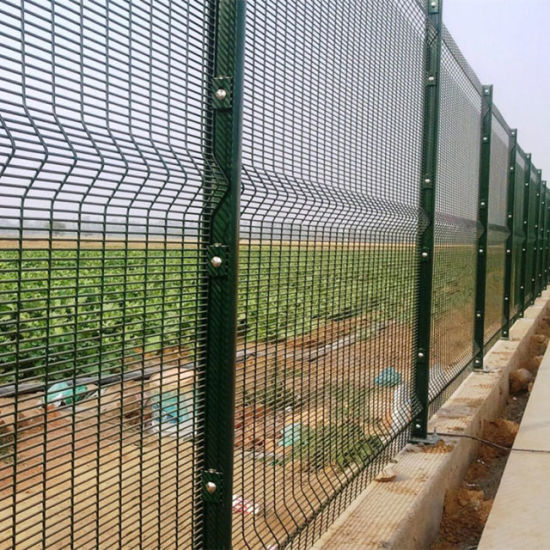

Clear Vu Fence is widely used for places that need high-security protection, such as borders, prisons, military areas, or other places has lower security protection.
