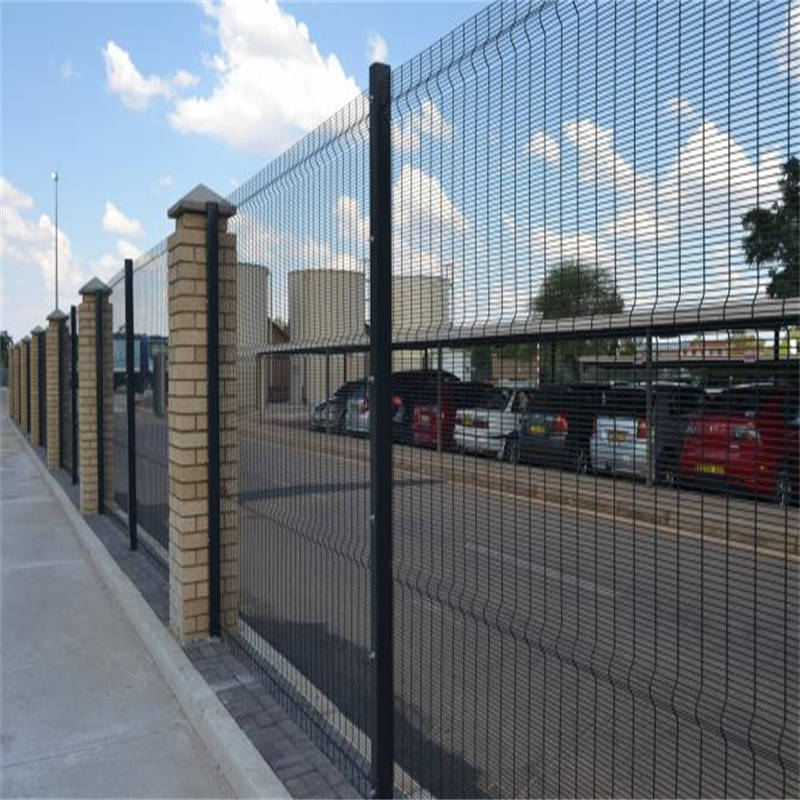

The mesh size of clearvu fencing is 76.2*12.7mm(centre to centre), the horizontal wire distance is 12.7mm, and the vertical wire is 76.2mm; it is trendy in US Market and South African Market. clearvu fencing has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.

• Material: Low Carbon steel wire Q195
• Type: Welded mesh
• MOQ:100 kits
• Clearvu Fencing Surface Treatment: Electric galvanized, hot dipped galvanized, spray, PVE coated, PE coated
• Technique: Welded
• Usage: Used for garden,road, playground,park etc
• Fencing Packaging Details: Packed with plastic film on the pallets and then in a wooden box

Clearvu Fencing Panel Specifications:

Clearvu Fencing Post Specifications:

Clearvu Fencing Clamp Specifications:

These specifications may vary depending on the exact version of Clearvu fencing you choose, and it's always a good idea to confirm specifications with the supplier before purchasing or installation.

Features

• 1. Anti-climbing - Due to the high-density mesh of the clearvu fencing, it is impossible to grasp the hands and feet, which plays excellent protection against climbing.
• 2. Anti-shear - the wire diameter is large, and the mesh is dense, making the wire cut useless.
• 3. Beautiful appearance - the mesh fencing surface is flat, and the perspective is higher.

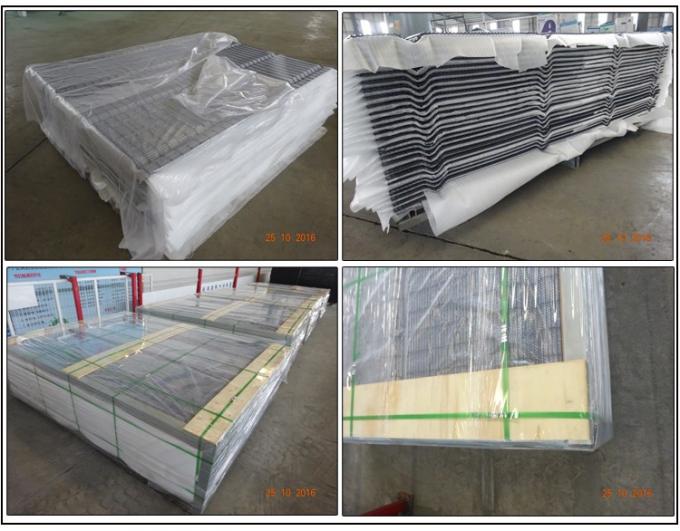

Fence Panel Packing:
1. Plastic film at the bottom to avoid the panel being destroyed.
2. 4 metal corners to ensure the panel is solid and uniform.
3. wood plate at the top of the pallet.
4. clear view fence pallet tube size:40*80mm tubes at the bottom vertical position.

Technology:

·The welding strength of the clearvu fence is 75% of the minimum tensile strength of welding wire (tensile range 540-690 n / m2).
·The system combines anti-climbing and anti-cutting fences, which has good penetration visibility and anti destruction.
·Combined with steel mesh, various aesthetic images can be obtained.
·Clearvu Fence can be painted in the required color or galvanized.
·Additional panel length may be provided for burial at 300 mm underground to prevent excavation.

Clearvu Fence Metal column information

Clear View fencing uses a column design that leverages either an RHS profile or a C column. These columns have dimensions of 50 × 50 mm, 60 × 60 mm or 60 × 80 mm, and come with internal hot-dip galvanization, which offers 40-60 g/m2 protection.

These fencing columns form an integral part of the strong and sturdy panels that Clearvu fencing is known for. The common heights of these safety fence columns range from 80 cm to 240 cm.

Coating on these columns varies between an 80-120 micron polyester-based coating, or a thermoplastic powder coating that's PVC-based and measures around 200 microns thick. The columns with a thermoplastic coating carry a ten-year guarantee, whereas those with an electrostatic coating have a five-year guarantee.

While the standard color for Clearvu fencing is green, there's flexibility to choose different colors based on your preferences. The coating process ensures the color remains bright (up to 90%) and isn't impacted by ultraviolet rays, preventing fading.

A UV-additive plastic cover is applied on each column, protecting it from water and potential damage.

For installation, there are several methods available. You can mount the columns on concrete using steel pins, with the column flange placed underneath for direct application on the concrete floor. For soil application, there's no need for polishing; instead, you can use long piles when creating a base.

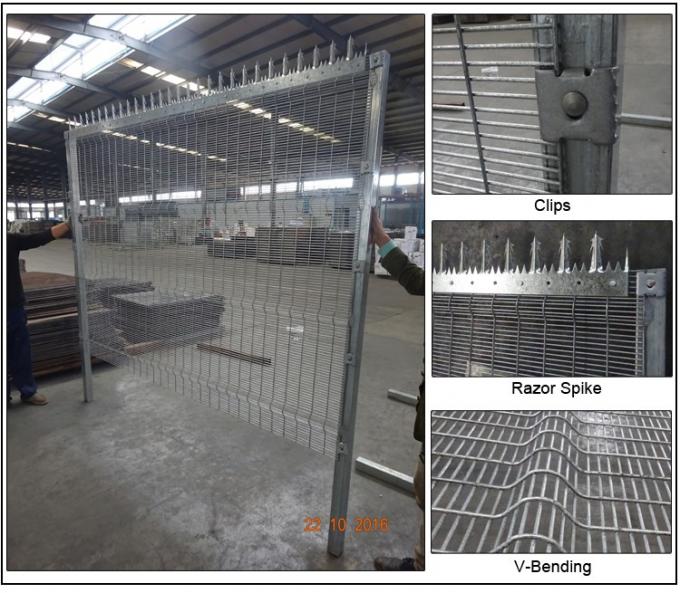

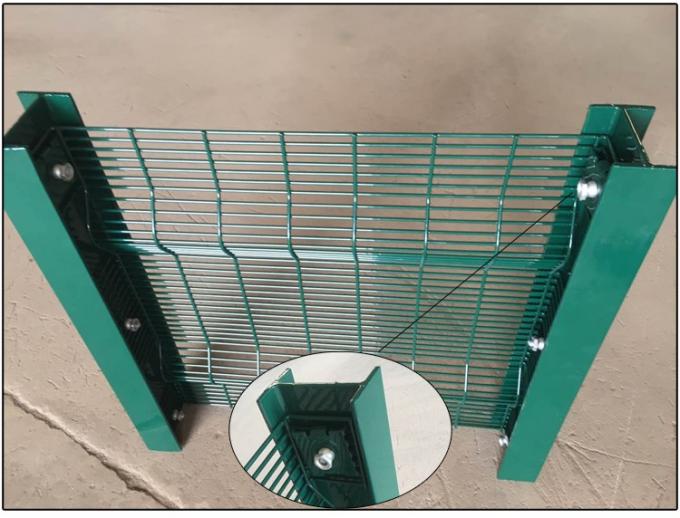

The fencing columns can be designed with a single or double-curved neck, if a shaving thread is applied. Finally, the Clearvu Fence Panel gets attached to the column using clips. You can choose either plastic or metal accessories for these applications.

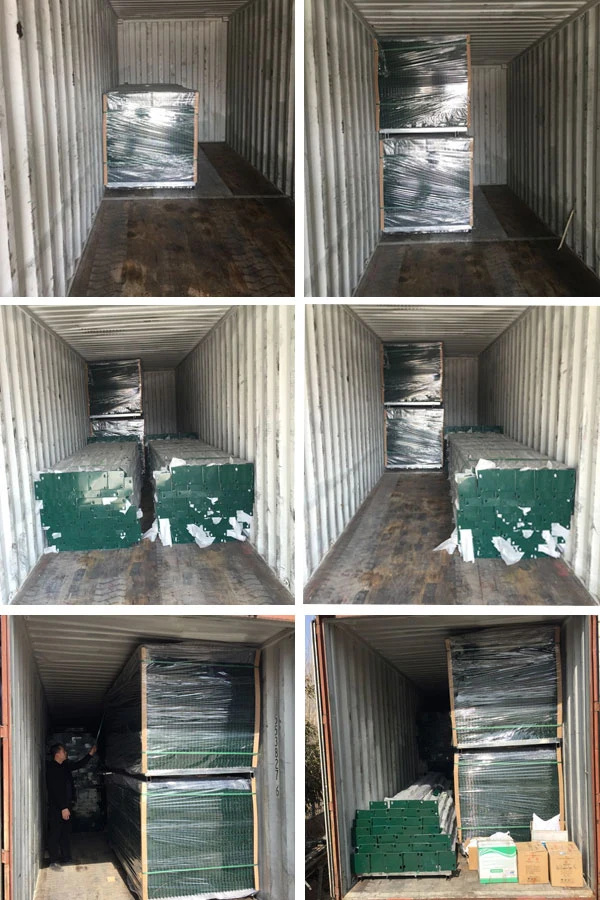

Clearvu Fencing Post Packaging:

For the Clearvu fencing posts, the packing process is as follows:

1. Each post is capped with a plastic cover. This is done to ensure the protection of the post during transit, preventing any damage to the top.

2. After the caps are secured, the posts are then wrapped in a protective plastic film. This layer helps guard the posts against scratches and any potential damage from moisture or dust.

3. The wrapped posts are then carefully loaded onto a metal pallet. This ensures the secure and stable positioning of the posts during transportation.

ClearVu Fencing  Packaging for Accessories:

When it comes to packaging accessories, the process is straightforward:

First, we gather stainless steel nuts and screws, which will be used alongside the clips.

Next, we pack five sets of clips along with their corresponding screws and nuts into one plastic bag. This helps organize all the necessary components for each fencing section and makes the installation process more efficient.

Following this, we place twelve of these plastic bags into a single sturdy carton box. This extra layer of protection ensures all the components reach their destination in perfect condition, without any loss or damage during transit.

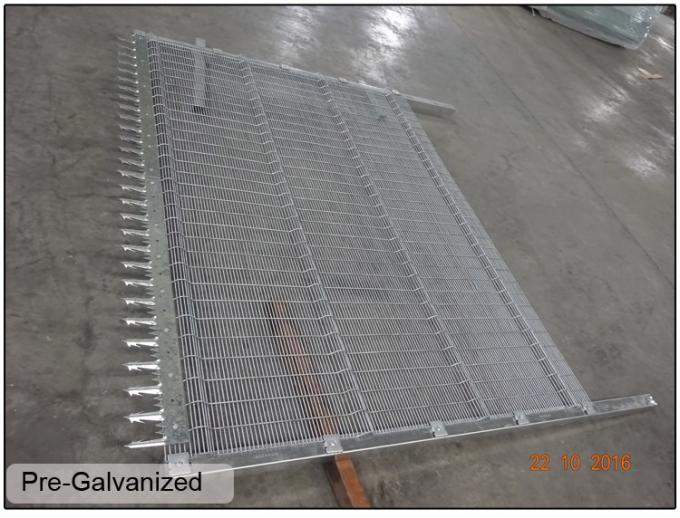

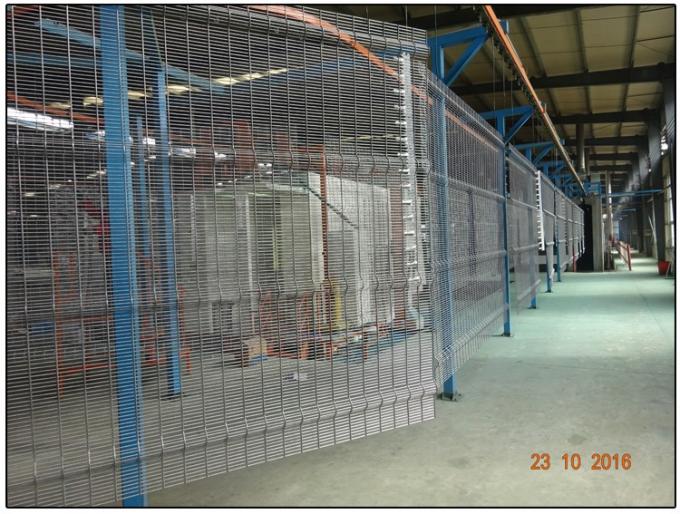

Production Process of Fencing:

Turning to the fencing production process, it follows a detailed and carefully controlled routine. This starts with crafting the panel design and welding the mesh structure. After this, we apply the finishes to complete the fence.

Our experienced quality control team carefully inspects each stage of the process. This attention to detail ensures a high standard of security and durability in our fencing products. We don't send any product out for packaging and delivery until it passes this strict quality control process. Our aim is to provide our customers with reliable and efficient fencing solutions that meet their high expectations.



FAQ

What is your payment term? A: Payment: T/T 30% as deposit, the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight
What is your delivery time? A: Delivery:15 - 20 days after we receive the deposit.
What can you do if the quality fencing does not meet my request? A: Refund all your money and compensate for your additional loss.
Can you design and make customers' requests? A: Yes, we will do clearvu fencing per the detailed specifications, and professional recommendations will be offered to customers.
