The clear view fence in South Africa is made from a strong welded mesh panel with a small mesh opening. It is challenging to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening of 3" × 0.5" × eight gauge - approximately 76.2 mm × 12.7 mm × 4 mm mesh opening.

Clear view fence south Africa Features:

• Anti-climbing: more small openings, no toe or finger holds.
• Anti-cut: robust Wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
• High-strength welded at each intersection.
• Durable: covering Galfan and polymer powder coating ensure long service life.
• Mesh fencing is specially configured to provide maximum visibility, primarily used for emergency and electronic detection systems.

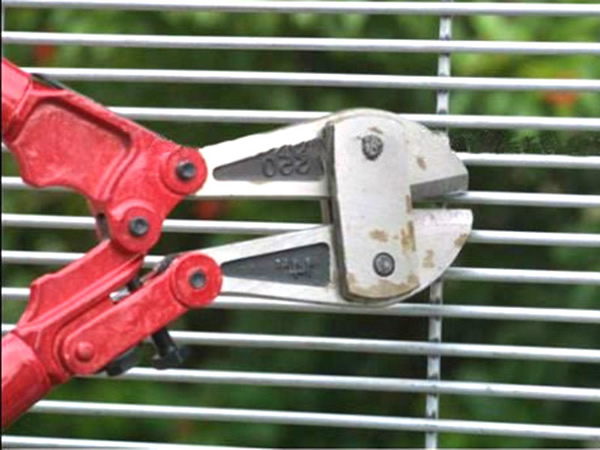

358M-01: Anti-cutting 358 mesh fencing

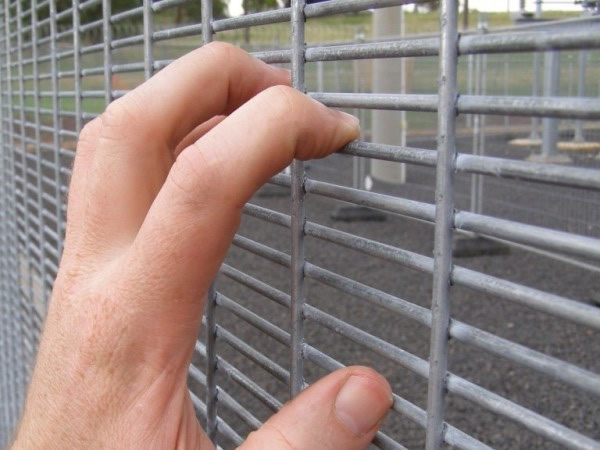

358M-02: Anti-climbing 358 mesh fencing

The panels are made of heavy mesh with a high level of security in a width of 2515 mm and a height of 2007 mm to 3302 mm. Several panels can be installed on top of each other. This may be achieved a total height of 6300 mm.

358 mesh panel size

• Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
• Wire diameter: 4 mm horizontal Wire and vertical Wire.
• Weld strength: range 540–690 N/m².
• Surface treatment: clear view fence south Africa panels made from Galvan Wire, PVC powder coating (Min. 100 microns), or PVC powder painting. It provides additional protection and increases the potential life span.
• Colours: Green RAL 6005 or Black RAL 9005.
• Installation: Overlapped 75 mm minimum at each post (See pictures 358M-05 and 358M-06) for securing with slotted clamp bars and M8 diameter bolts.

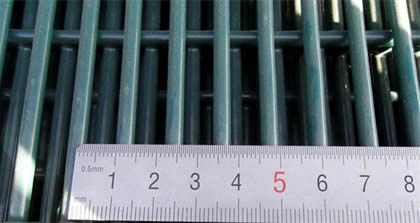

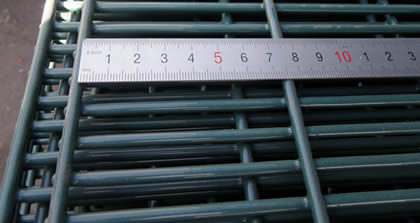

358M-03: 358 fence panel with mesh size length 76.2 mm

358M-04: 358 fence panel with mesh size height 12.6 mm

Fence posts

• Material: high-grade steel for maximum strength and rigidity.
• Post section: 60 × 60 mm, 80 × 80 mm, 100 × 100 mm or 120 × 120 mm.
• Post Plate thickness: 2.5/3.0/4.0/5.0 mm.
• Finish: inside and outside galvanized (Min. 275 g/m²), subsequently covered with a polymer powder (Min. 60 microns).
• Colours: Green RAL 6005 or Black RAL 9005.
• Post cap: metal caps or plastic caps.
• Metal clips and clamps are galvanized hot dips and powder coated in green or black.

Table 1: clear view fence south Africa Specifications

Fence height (m)	Panel size (Height × Width) (mm)	Fence Post (Height × Size × Thick) (mm)	Clamp Bar (Height × Width × Thickness) (mm)	Middle or corner Clamp No. (pcs)
2	2000 × 2515	2700 × 60 × 60 × 2.5	2000 × 60 × 5.00	7 or 14
2.4	2400 × 2515	3100 × 60 × 60 × 2.5	2400 × 60 × 5.00	9 or 18
3	3000 × 2515	3800 × 80 × 80 × 2.5	3000 × 80 × 6.00	11 or 22
3.3	3300 × 2515	4200 × 80 × 80 × 2.5	3300 × 80 × 6.00	12 or 24
3.6	3600 × 2515	4500 × 100 × 100 × 3.0	3600 × 100 × 7.00	13 or 26
4.2	4200 × 2515	5200 × 100 × 100 × 4.0	4200 × 100 × 8.00	15 or 30
4.5	4500 × 2515	5500 × 100 × 100 × 5.0	4500 × 100 × 8.00	16 or 32
5.2	5200 × 2515	6200 × 120 × 120 × 5.0	5200 × 100 × 8.00	18 or 36

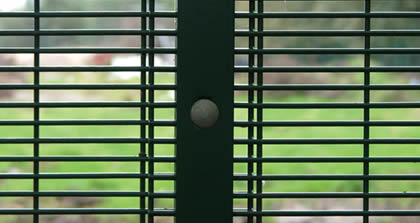

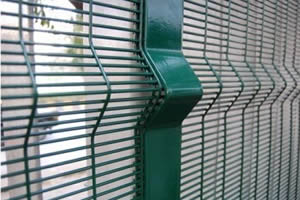

358M-05: When installing 358 fences on posts, need to overlap 75 mm minimum at each post

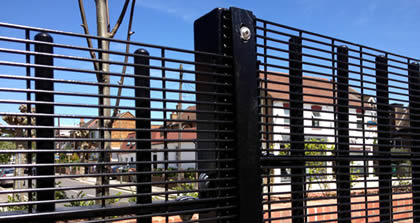

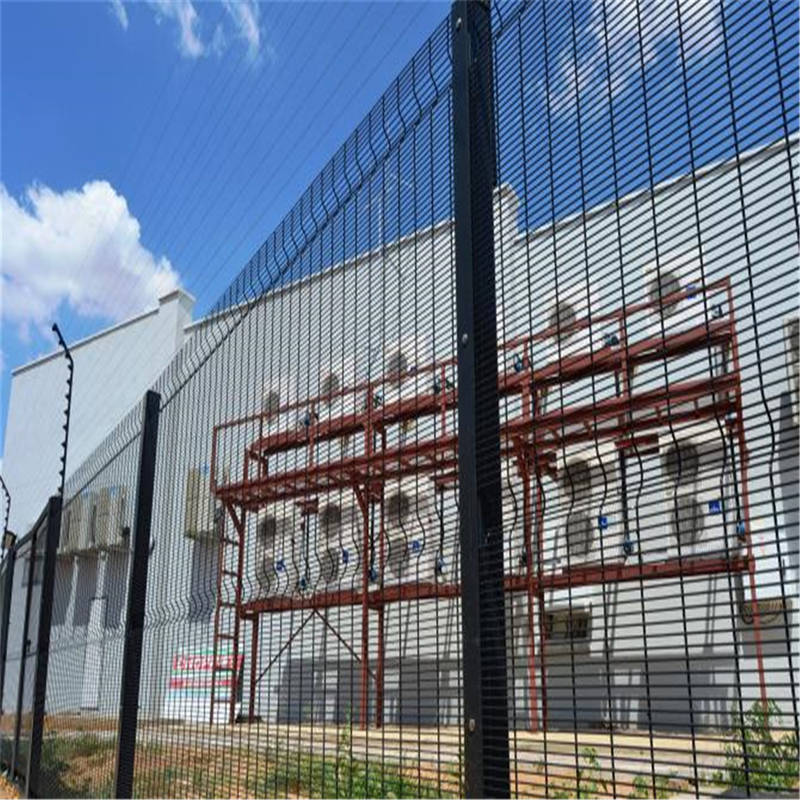

358M-06: Black 358 mesh fencing used for protection of residential.

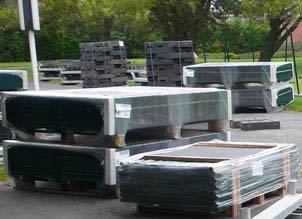

358M-07: 358 security mesh panels package

358 high-security fences are packaged in plastic film, then stored and transported on wooden pallets. Each package is firmly attached to the pallet by a special type of tape.

Application:

As an anti-climb & anti-cut through barrier, 358 welded wire extra high-security fence is designed with maximum security. It is ideally suitable for electronic alarm and detection systems, fencing in prisons, military sites, airports, industrial and commercial properties, warehouses, power plants, offshore petrochemical facilities, seaport Perimeter, laboratories, secure hospitals, schools, parks, and leisure and recreational areas. 358 fence will give them long-lasting and secure perimeter protection with an attractive appearance. Generally, a 3.60 m height fence is used in schools, parks, leisure and recreational areas, 5.20 m height fence is widely used in prison and military establishments.

2D Security Fencing with 4 mm double horizontal and 6 mm vertical wires for greater strength.

These panels increase strength by 6 mm vertical wire and additional 4 mm wires at 152.4 mm centres on the inside face. So it has double horizontal wires at 152.4 mm centres. This structure makes the fence panel very rigid and has a higher level of strength and security than the standard clear-view fence in south Africa. 2D Security Fencing is widely used for schools, industrial sites, infrastructure, and high-security areas.

•

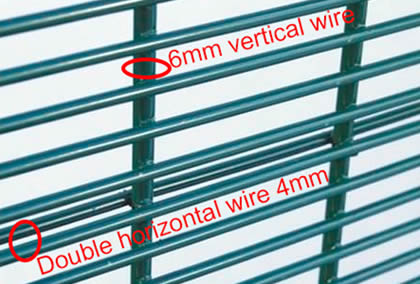

  358M-08: Green colour powder coating 2D security fencing with 6 mm vertical wire and 4 mm double horizontal Wire

•

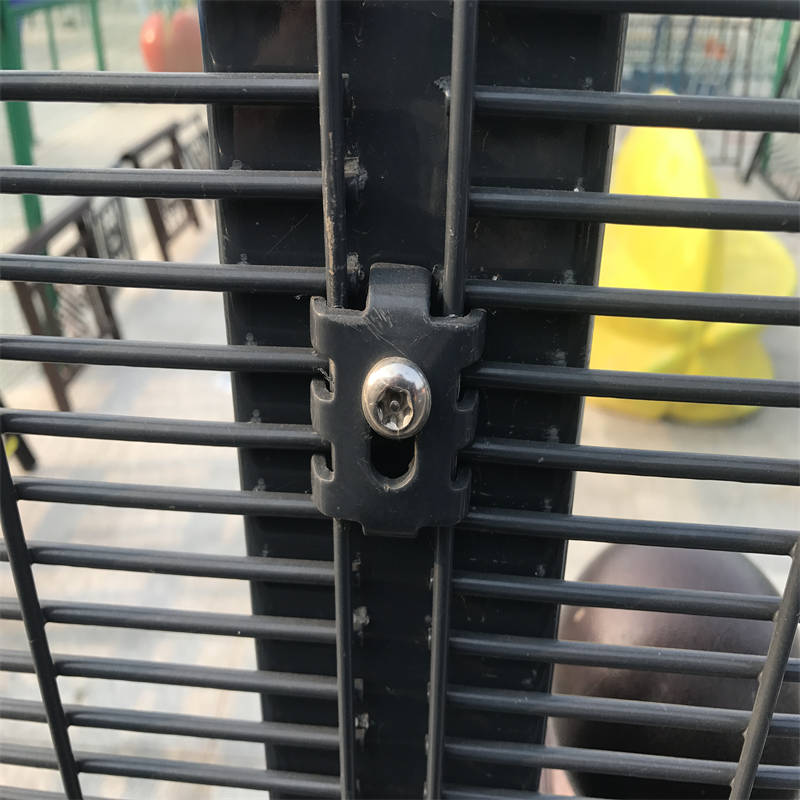

  358M-09: Details of 2D security fencing panel installed on post

2D security fencing Specifications

• Mesh opening: 76.2 mm × 12.7 mm welded at each intersection.
• Horizontal wires: 4 mm diameter at 12.7 mm centres on the attack face and intermittent 4 mm double wires at 152.4 mm centres on the inside face.
• Vertical wires: 6 mm diameter at 76.2 mm centres.
• The post has a single row of M8 threaded inserts, which allow the panels to be fitted with specialized pressed steel brackets and are pitched at 2.55 m centres.
• Panel width, height, finish, fence post and clamps are the same as clear view fence in south Africa; please see Table 1.

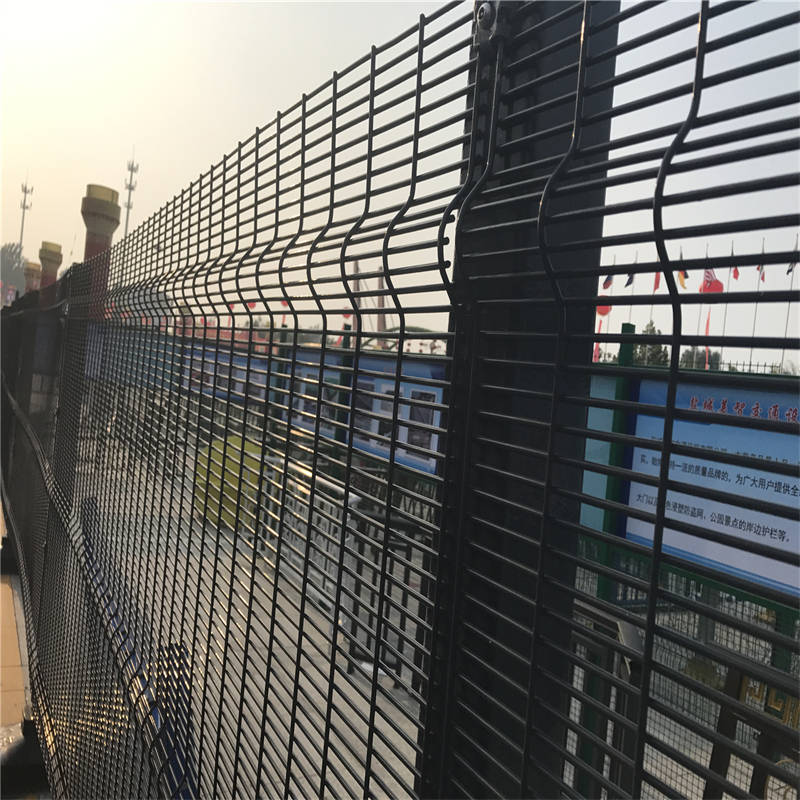

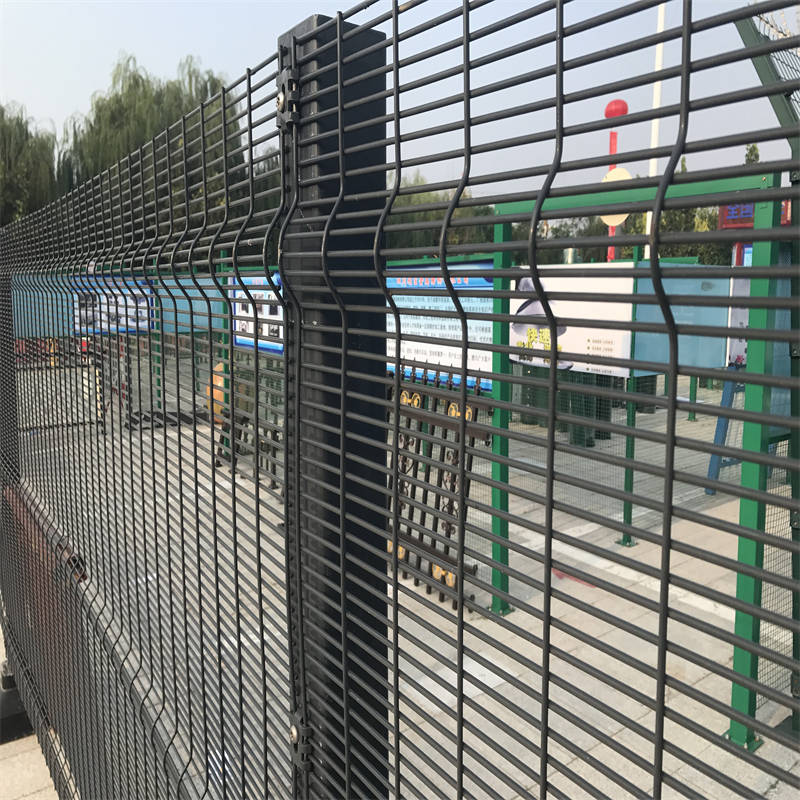

358M-10: 3D security mesh panel with a V beam installed on a post with a V beam

Clear view fence south Africa enhanced its appearance with pressed horizontal 'V-shaped beams.

The 3D security fence is similar to the clear view fence in South Africa, and they are both made from 4.0 mm wire in a 12.7 × 76.2 mm mesh pattern. But the 3D security fence enhanced its appearance with pressed horizontal 'V-shaped beams. It is a unique barrier solution that combines high safety and aesthetic appearance. Usually, 3D security fencing is usually recommended for schools, recreational areas, hospitals, railways, ports, airports, warehouses and industrial facilities or commercial facilities.

Table 2: 3D security fence system specifications

Panels			Posts
Fence height	Panel Size Height/Width	Number of Beams	O/A Length	Material and fixing clamps
				Middle		Corners
m	mm		mm	Material mm	Clamps No.	Material mm	Clamps No.
2.0	2000 × 2515	2	2700	80 × 60 × 2.0 RHS	6	80 × 80 × 2.5 SHS	12
2.4	2400 × 2515	3	3100	80 × 60 × 2.0 RHS	7	80 × 80 × 2.5 SHS	14
3.0	3000 × 2515	3	3800	80 × 80 × 2.5 SHS	10	80 × 80 × 2.5 SHS	20

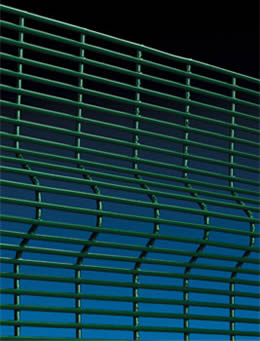

358M-11: 3D security fencing panel

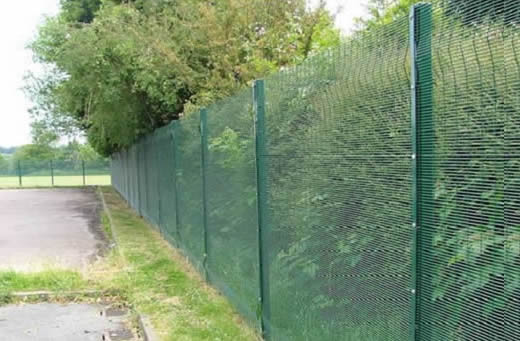

358M-12: 3D security fencing offers a high level of safety and aesthetic appearance barrier solution for trees area.
