Nylofor 3D Fencing: Anti-Theft with a Great View

Nylofor 3D Fencing: Anti-Theft with a Great View

Product No.：202421693611
Price：9.68-48.88$ Per kit
Service Life：5-10 years

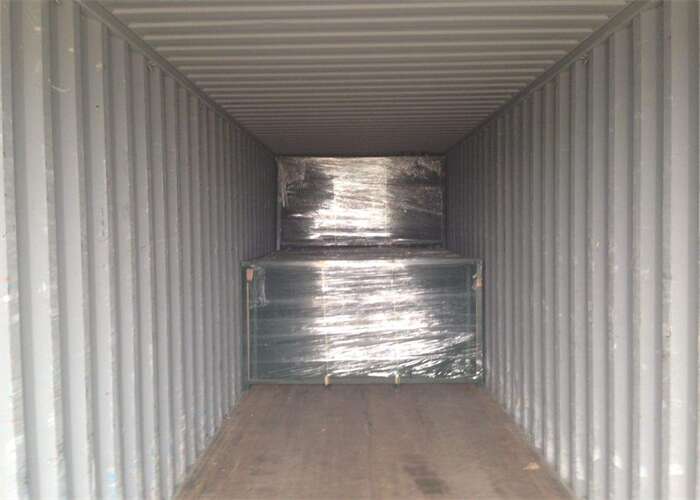

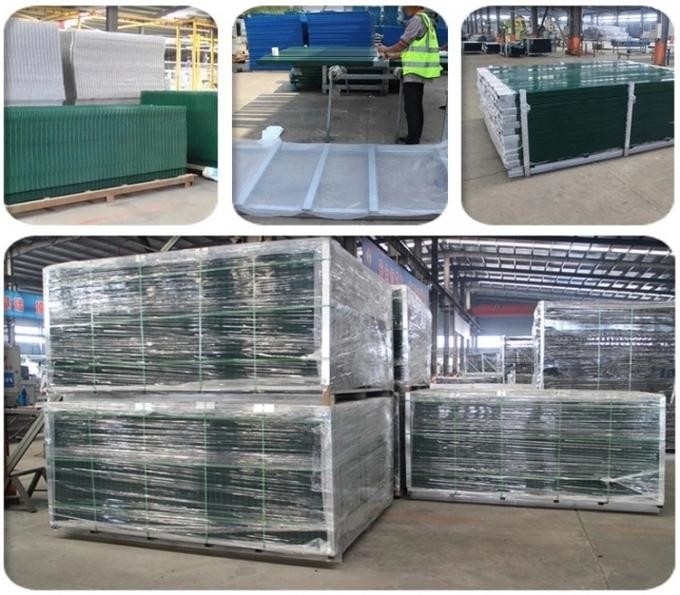

Packing：Metal Stillage Wrapped with Plastic Film
Colours：All RAL colours for Vinyl Coated One
Customized：Available
Production Time：14 days
Payment Term：TT 30% deposit balance 70% at sight of finished products photo
Certificate：ISO
Materials：Q195 and Q235
Treatement Surface：Hot dipped galvanized ,powder coated ,pvc coated
Online Inquiry

Nylofor 3D fencing is a type of welded steel wire mesh made from high-quality, low carbon steel wire, galvanised steel wire, and metal columns. This 3D guardrail is strong, sturdy, and looks great. It offers a wide view, is easy to install, and has a great anti-theft feature to keep the fence safe. The welded mesh fence is a budget-friendly option, made from a panel with welded mesh and longitudinal profiles to make it rigid. We make the panel by welding it with high-quality, low carbon steel wire and then coat it with electrostatic polyester powder over galvanised material. You then attach the Nylofor fencing to a post using suitable clips. Its simple structure, easy installation, and nice look make it a popular choice for a protective fence among many customers.

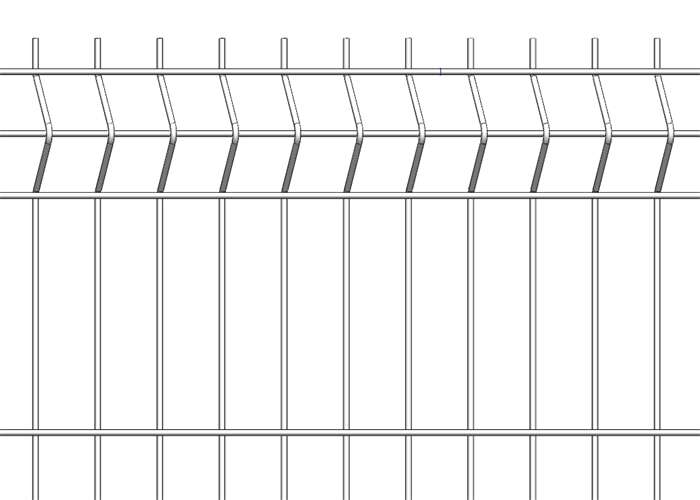

PVC coated Wire Mesh Fencing Panels NYLOFOR 3D Brand 0

Features:

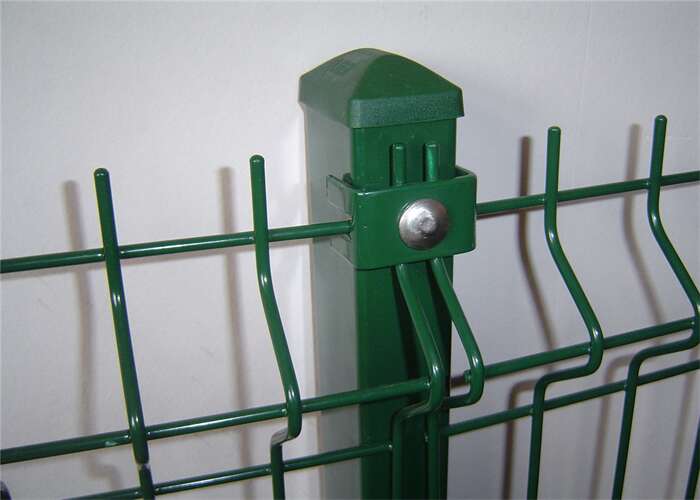

Nylofor 3D fencing connects directly to the mesh without any buckles, effectively preventing theft and disassembly. It looks good, lasts long, has a simple design, and you can install it quickly and easily.

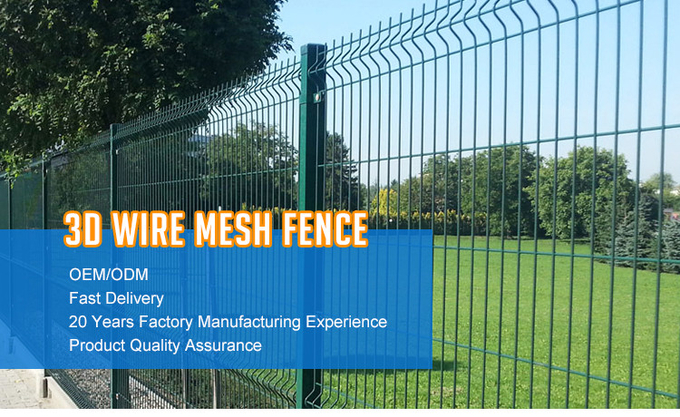

PVC coated Wire Mesh Fencing Panels NYLOFOR 3D Brand 1

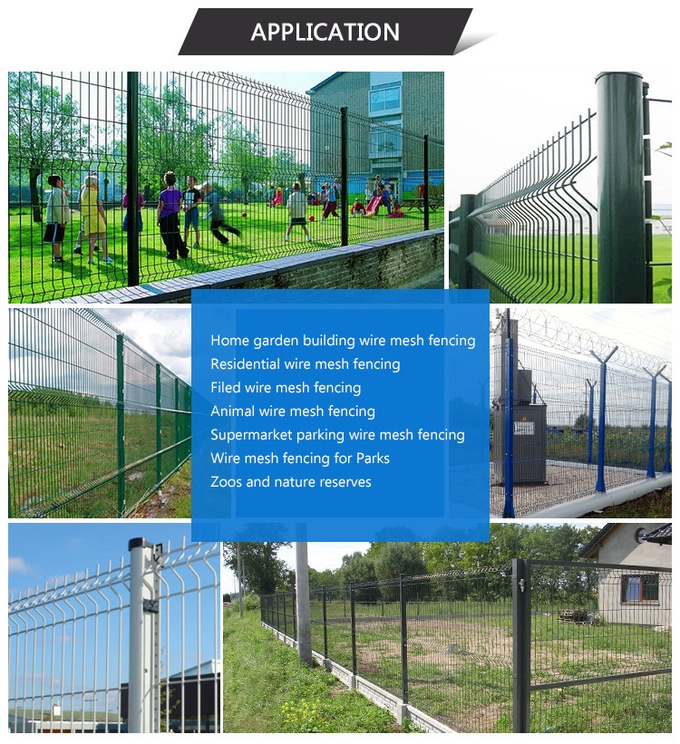

Applications of Nylofor 3D Fencing:

Fences for industrial sites.
Fences for airports and railway station service areas.
Highway barriers.
Fences for warehouse protection.
Fences for school sports fields and stadiums.
Security fences for gardens and parks.
Fences for residential areas.
Fences for agricultural protection.
Fences for animal enclosures.

Nylofor 3d Fencing

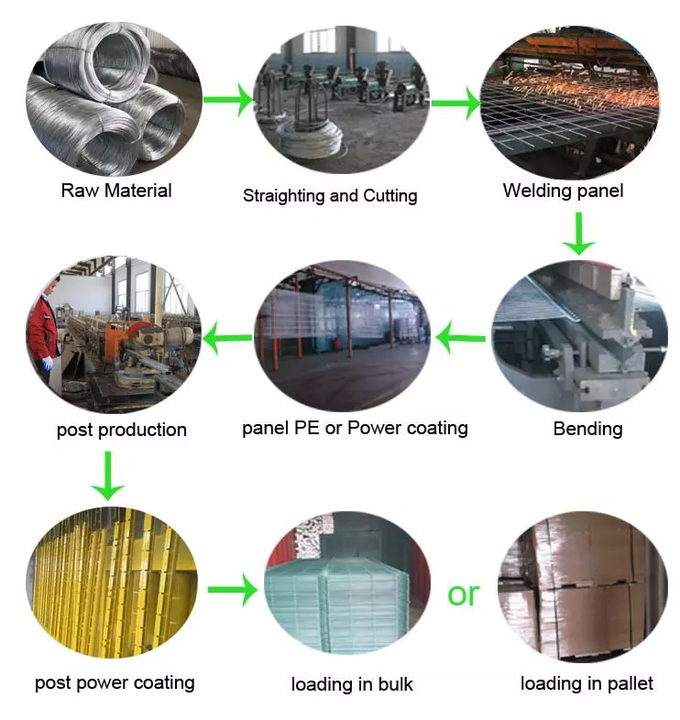

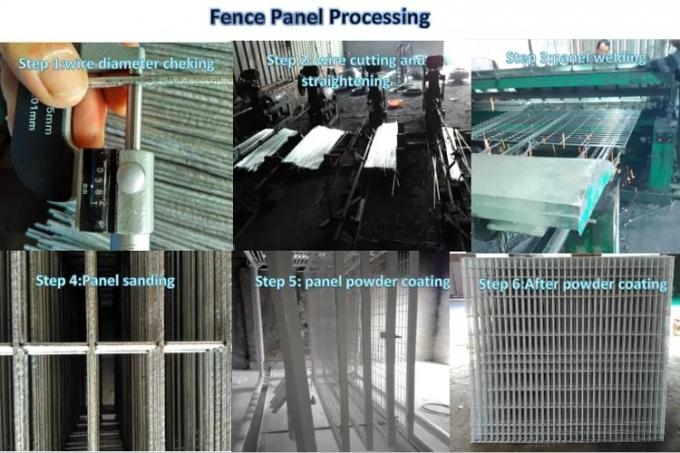

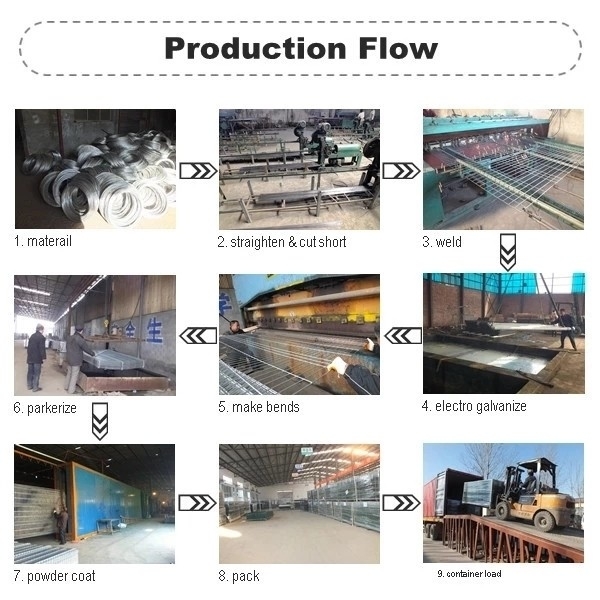

Production Process of Nylofor 3d fencing

We start with the raw material, which is usually coils of steel wire.
Next, we straighten and cut the wire to the right length.
Then, we weld the wire to create the fencing panel.
After that, we work on the posts needed to support the fence.
We coat the panels with either polyethylene (PE) or apply a power coating to protect them from the weather.
We also bend the panels to give them their 3D shape.
Then, we apply a power coating to the posts to match the panels.
Finally, we load the finished Nylofor 3D Fencing panels and posts either directly in bulk or onto pallets for shipping.

PVC coated Wire Mesh Fencing Panels NYLOFOR 3D Brand 2

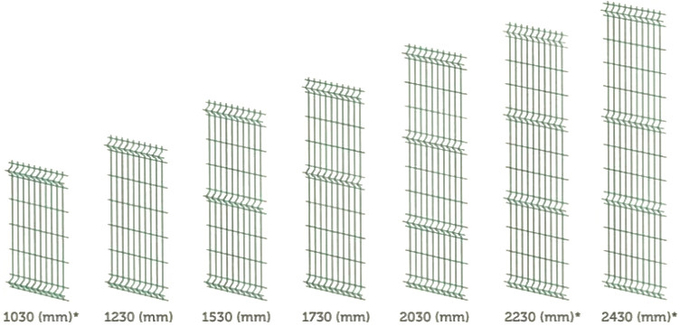

Wire Dia.	Mesh Size	Panel Width	Panel Height	Fold No.	Post's height		Post Model
Wire Dia.	Mesh Size	Panel Width	Panel Height	Fold No.	Fix Ⅰ	Fix Ⅱ	Post Model
4.0mm 4.5mm 5.0mm 5.5mm 6.0mm	20050mm 20055mm 20060mm 20065mm	2.0m 2.255m 2.5m 3.0m	830mm	2	1200	900	XLFP-04
			1.30mm	2	1400	1200
			1230mm	2	1600	1400
			1530mm	3	2000	1700
			1730mm	3	2200	1900
			1830mm	4	2300	2000
			2030mm	4	2500	2200
			2230mm	4	2700	2400
			2530mm	5	3000	2600

PVC coated Wire Mesh Fencing Panels NYLOFOR 3D Brand 3

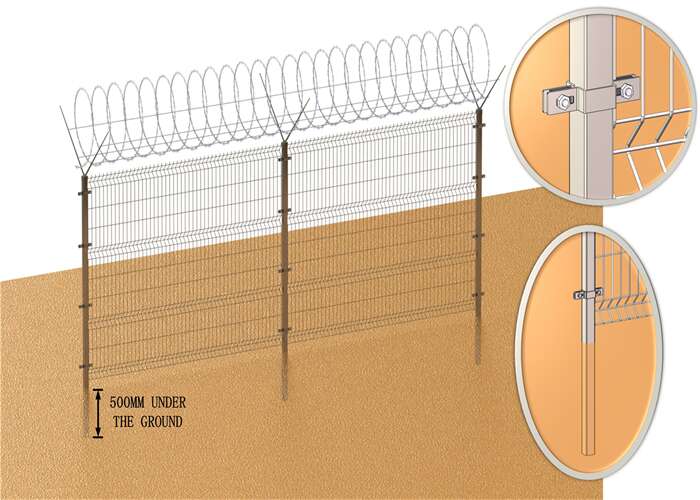

Fix Ⅰ:Buried in the ground. Fix Ⅱ: Installed with bottom base or feet.

Peach Post :

Nylofor 3D Fencing Peach Post
Size	100mmx70mm; 60mmx90mm;50mmx70mm
c	0.8mm; 1.0mm; 1.2mm
Length	0.65m;1.0m;1.5m;2.0m;2.5m;3.0m;3.5m;4.0m
Material	Hot dipped galvanised roll steel plate
Finished	Hot dipped galvanised, polyester painting
Single Arm Or Double arm	On request

Square post :

Square Post
Size	60mmx40mm; 60mmx60mm; 60mmx80mm; 80mmx80mm
Thickness	1.5mm-5mm
Length	0.65m-5m
Material	Square steel pipe
Finished	Hot dipped galvanised, polyester painting
Single-arm or double arm:	On request

Round Post :

Nylofor 3D Fencing Round Post
Diameter:	60mm;48mm
Thickness	2.5mm
Length	2.1m-4.0m
Material	Round steel plate
Finished	Hot dipped galvanised, polyester painting
Single Arm Or Double arm	On request

You can choose any RAL color you want for Nylofor 3D fencing, like colors that match your company's style. Some popular colors include:

Dark Green (RAL6005)
Pure White (RAL9010)
Stone Grey (RAL7030)
Jet Black (RAL9005)
Anthracite Grey (RAL7016)
You can also pick from other RAL colors.

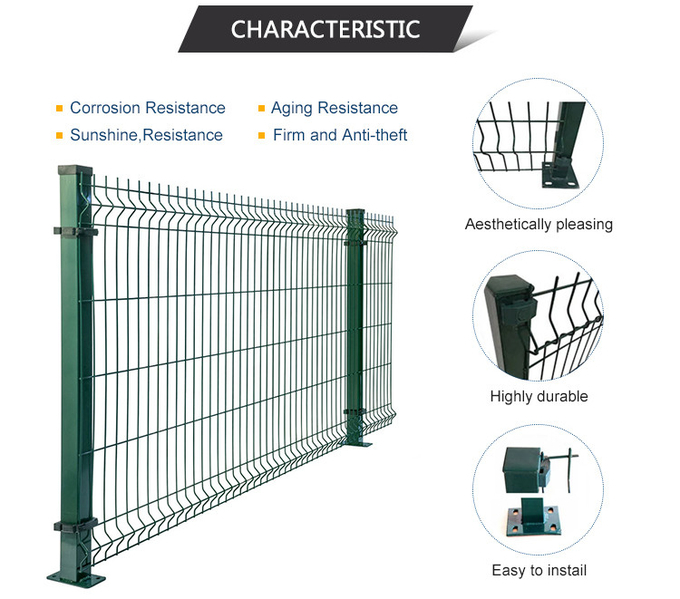

Nylofor 3D Fencing Panel Features:

Strong Panels: The wire fence panels have rectangle shapes and horizontal ribs that make them strong and rigid.
Lasts a Long Time: The anti-rust coating keeps dirt out and makes the product last much longer.
Easy to Put Up: We design all parts to make sure the finished product is easy to put together fast.

Nylofor 3D Fencing Panels Details:

Panel Wire Material: We use low carbon steel wire or iron wire, and hot dipped galvanized wire.
Diameter: The wire can be from 3mm to 6mm thick.
Mesh Size: The common sizes are 50x50mm, 50x100mm, 50x150mm, 50x200mm, but we can make the size you need.
Surface Treatment: We offer hot dipped galvanized, powder coating, or PVC coating for the fences.

PVC coated Wire Mesh Fencing Panels NYLOFOR 3D Brand 11

Conclusion

Nylofor 3D fencing is a strong and long-lasting option that is easy to set up. It comes in a range of colors to match any style, including popular options like dark green and pure white. With reinforced panels and a protective coating, it stands up well against rust and dirt, making it a great choice for a secure fence that also looks good. Whether for a business, home, or public area, Nylofor 3D fencing is a reliable and attractive choice.
