welded wire mesh fencing is a type of fencing that is constructed using welded wire mesh. There are different variations of welded wire mesh fencing, including 3D welded wire mesh fence, twin wire fence (also known as 868 656 fencing), 358 fencing, and other types as well.

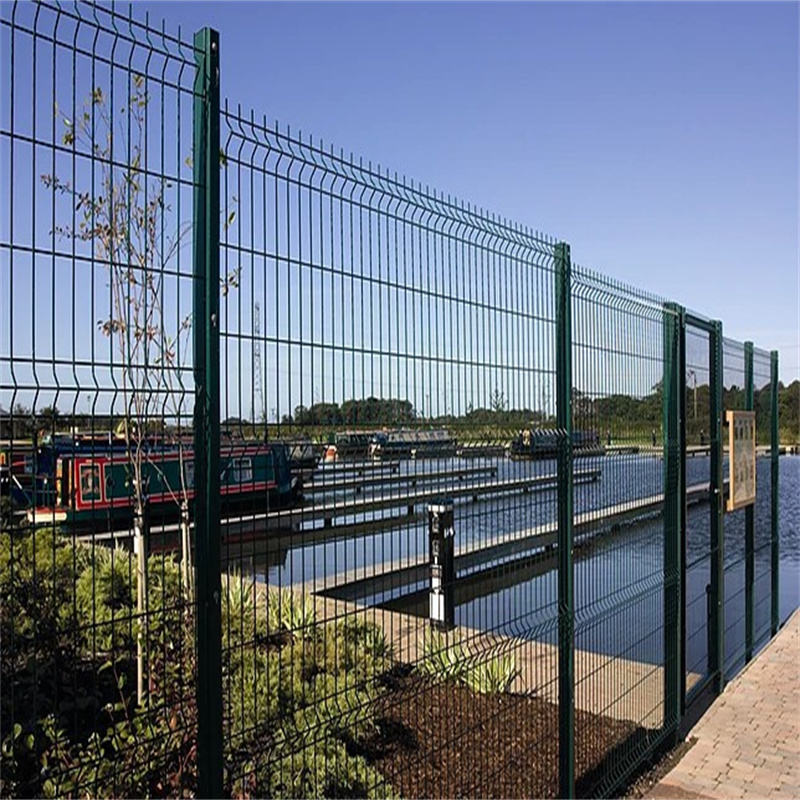

3D welded wire mesh fence is a type of fence that is constructed using welded wire mesh panels that have a three-dimensional profile. This type of fence is commonly used for residential and commercial applications, such as garden and pool fencing, and perimeter security fencing.

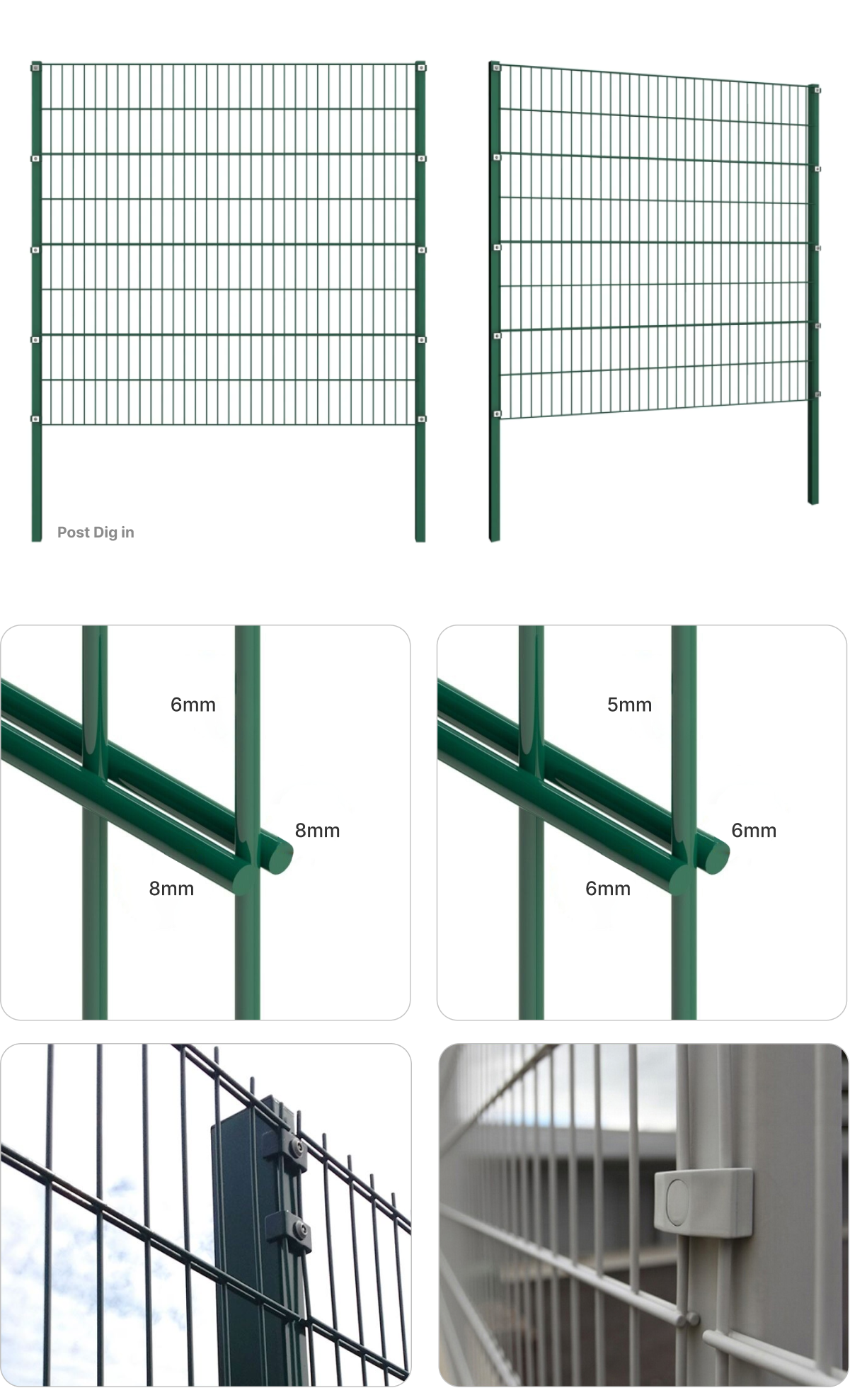

Twin wire fence (868 656 fencing) is a type of fence that is constructed using twin horizontal wires and a single vertical wire. This type of fence is known for its high strength and durability, making it ideal for use in high-security applications such as prisons and military installations.

358 fencing is a type of welded wire mesh fence that is known for its small mesh size and high-strength construction. It is commonly used for high-security applications, such as airport perimeters and border fences.

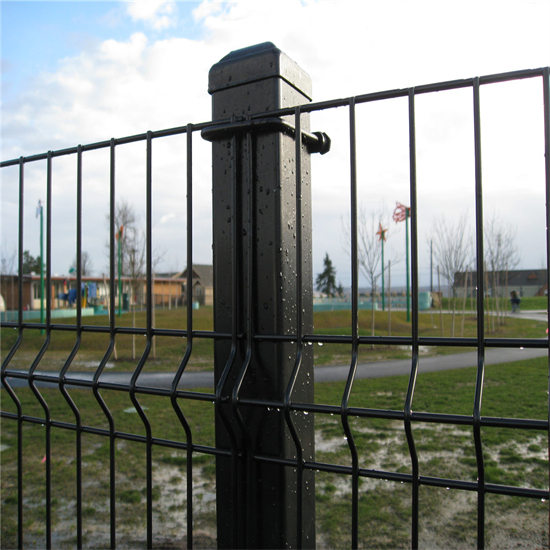

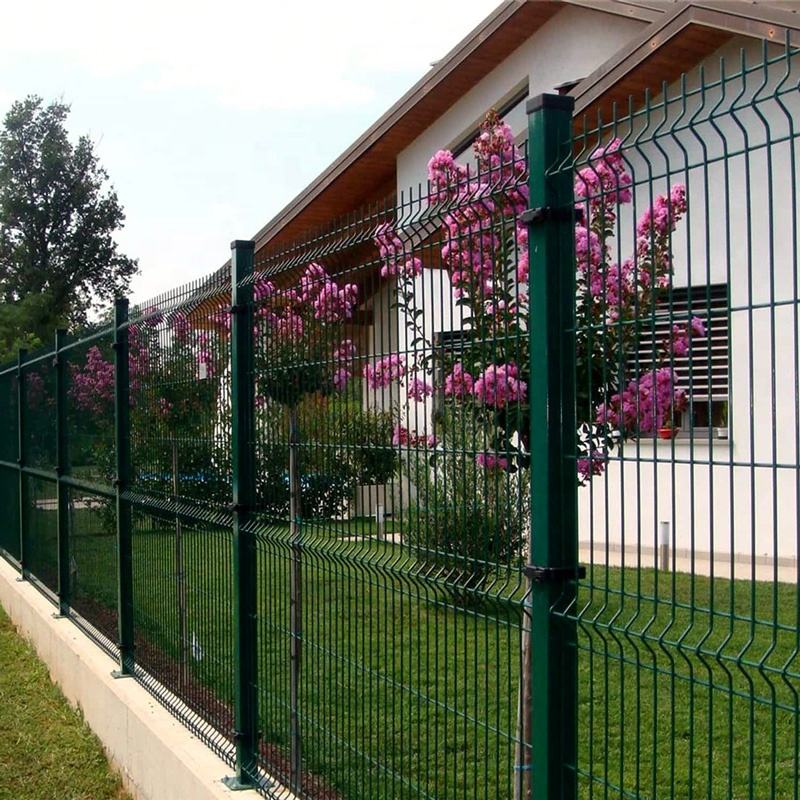

3D fence panels

The "3D fence" described here is a type of welded wire mesh fencing that is designed for high security applications. The use of high-quality Q195 low carbon steel wire and excellent anti-corrosion coating ensures that the fence is durable and long-lasting, even in harsh weather conditions.

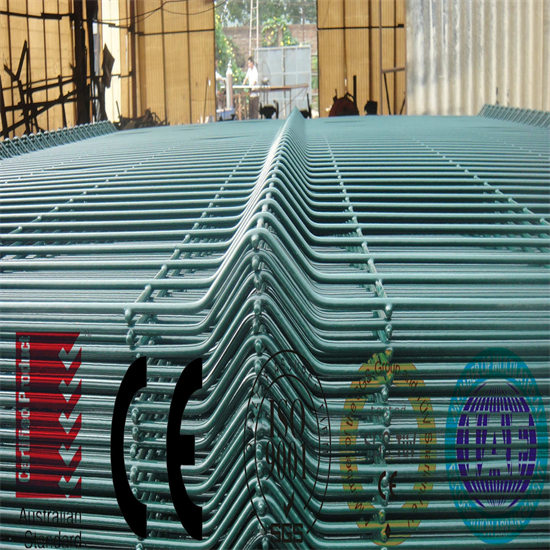

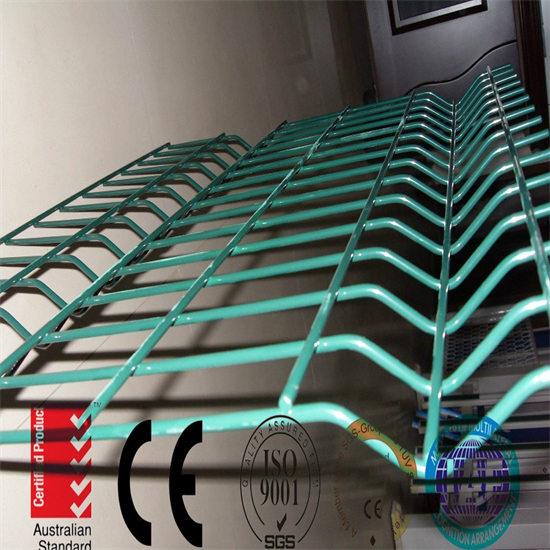

The "V" shaped bends on the top, middle, and bottom edges of the welded wire mesh fence panel serve two purposes. Firstly, they enhance the appearance of the fence, making it look more aesthetically pleasing. Secondly, they strengthen the fence by providing additional support and preventing it from being easily destroyed.

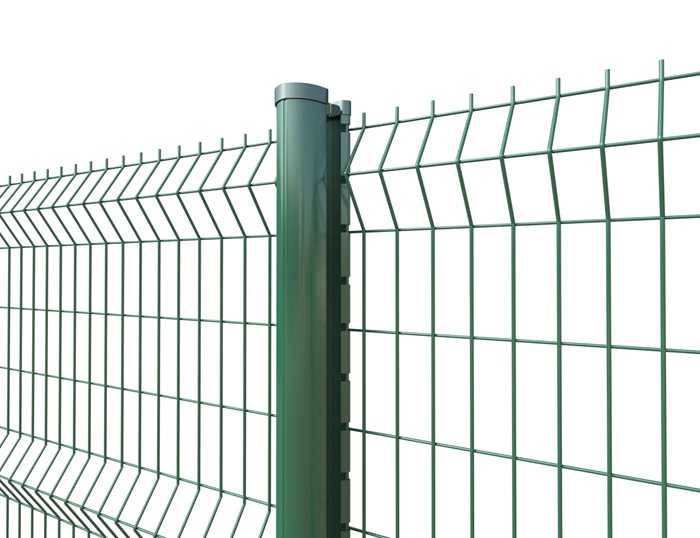

The welded wire mesh fence panel is 4mm thick, which makes it strong and sturdy. The fence poles and spider clamps with bolts and riv-nuts are used to secure the fence in place and ensure that it stays upright and stable.

Overall, the "3D fence" is a high-quality, secure, and durable fencing solution that is suitable for a wide range of applications, including residential, commercial, and industrial settings.

3d fencing specifications

3D fence panels, also known as 3D welded wire mesh fencing, are a type of fencing that consists of welded wire mesh panels formed into a three-dimensional shape. The panels are made from a series of horizontal and vertical wires that are welded together at their intersection points, creating a strong and rigid structure.

The 3D shape of the panels provides a more aesthetically pleasing appearance than traditional flat panels, and the three-dimensional design can also provide additional strength and durability. The panels are available in a variety of sizes, gauges, and mesh patterns to suit different applications and aesthetic preferences.

3D welded wire mesh fence panels are commonly used for perimeter fencing, security fencing, and decorative fencing in both residential and commercial settings. They are often preferred for their ease of installation, low maintenance requirements, and long-lasting durability. The fencing can be customized to fit any terrain or landscape and can be enhanced with additional features such as gates, locks, and access controls to increase security.

In addition to being used for fencing, welded wire mesh fence panels can also be used for a variety of other applications such as safety barriers, machine guards, and building facades. They are often made from materials such as galvanized steel, stainless steel, or PVC-coated wire to provide corrosion resistance and weather resistance.

Overall, 3D fence panels are a versatile and durable fencing solution that offers a combination of functionality and aesthetic appeal.

Specifications

Data	Options
Mesh Opening	50x100mm, 50x150mm, 50x200mm, 55x200mm, 75x150mm
Wire Thickness	3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
Panel Height	630mm, 830mm, 1030mm, 1230mm, 1530mm, 1730mm, 1830mm, 2230mm, 2430mm
Panel Width	2000mm, 2500mm, 2900mm

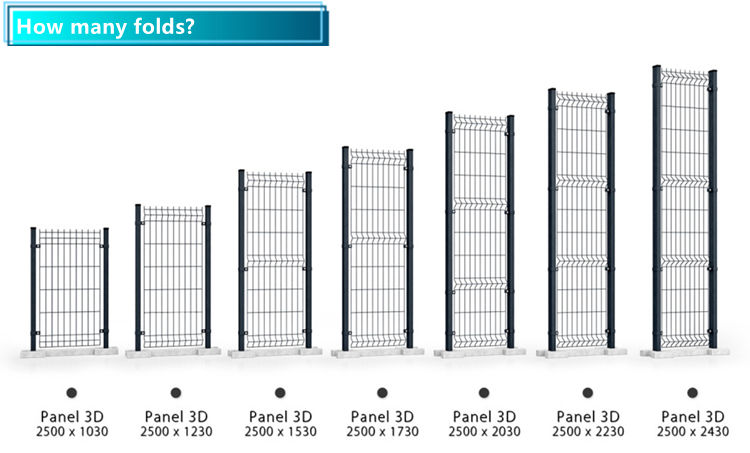

Rule of Bendings	below 1.5m with 2 bendings, above 1.8m with 3 bendings, above 2.0m 2.4m with 4 bendings
welded wire mesh fence panels Post Type	Round Post (48x1.5/2.0mm, 60x1.5/2.0mm), Square Post (50x50x1.5/2.0mm, 60x60x1.5/2.0mm, 80x80x1.5/2.0mm), Peach Post (50x70x1.0/1.2mm, 70x100x1.0/1.2mm)
Color	Green, Grey, White, Black, All RAL colors can be customized
Surface Treatment	Hot Dipped Galvanized, Galvanized + Powder Coated, PVC Coated, Painted
Customizable	Product specifications can be customized accordin

Panel Height	Panel Length	Wire Diameter	Mesh Size	Folds No.	Post Type	Post install method	Surface Treatment
0.83m	2m 2.5m 3m Customized	3mm - 8mm	50x200mm 55x200mm 50x150mm 55x100mm 65x200mm Customized	2	1. Square 2. Rectangular 3. Round 4. Peach 5. I shape 6. D shape	1. Pre-buried 2. With flangled plate	1. Hot dip galvanized   2. PVC coated   3. Powder coated
1.03m				2
1.23m				2
1.43m				3
1.53m				3
1.63m				3
1.73m				3
1.83m				3/4
2.03m				4
2.23m				4
2.43m				4

358 welded wire mesh fencing

358 welded wire mesh fencing is a type of high-security fencing that is commonly used in industrial, commercial, and government applications. The name "358" refers to the size of the mesh openings, which are 3" x 0.5" x 8 gauge (approximately 76.2 mm x 12.7 mm x 4 mm). This small mesh size makes it difficult for intruders to climb or cut through the fence.

The panels of 358 welded wire mesh fencing are made by welding horizontal and vertical wires together to create a rigid grid pattern. The panels are then attached to posts using clips or brackets, and the fence is typically topped with razor wire or barbed wire to provide additional security.

358 welded wire mesh fencing is known for its strength, durability, and resistance to cutting and climbing. It is often used in high-security applications such as prisons, military bases, and government facilities, as well as in commercial and industrial settings where security is a concern.

Specification	Value
Mesh Opening	12.7x76.2mm (0.5'' x 3'')
Wire Diameter	3/3.5/4mm
Panel Height	1.2m-6m (Suggested size: 2m/2.4m/3m)
Panel Width	2.0-3.0m (Suggested size: 2m/2.2m/3m)
Post Type	Square Post(SHS): 60x60x2.0/2.5/3.0mm, 80x80x2.0/2.5/3.0mm; Rectangular Post(RHS): 40x60x2.0/2.5/3.0mm, 40x80x2.0/2.5/3.0mm, 60x80x2.0/2.5/3.0mm, 80x100x2.0/2.5/3.0mm
Surface Treatment	Hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating
Color	RAL 6005 green, RAL 7016 gray, All RAL color can be customized
Note	The fence can be customized according to your requirements if the above specification does not meet your needs. Contact now for further information.

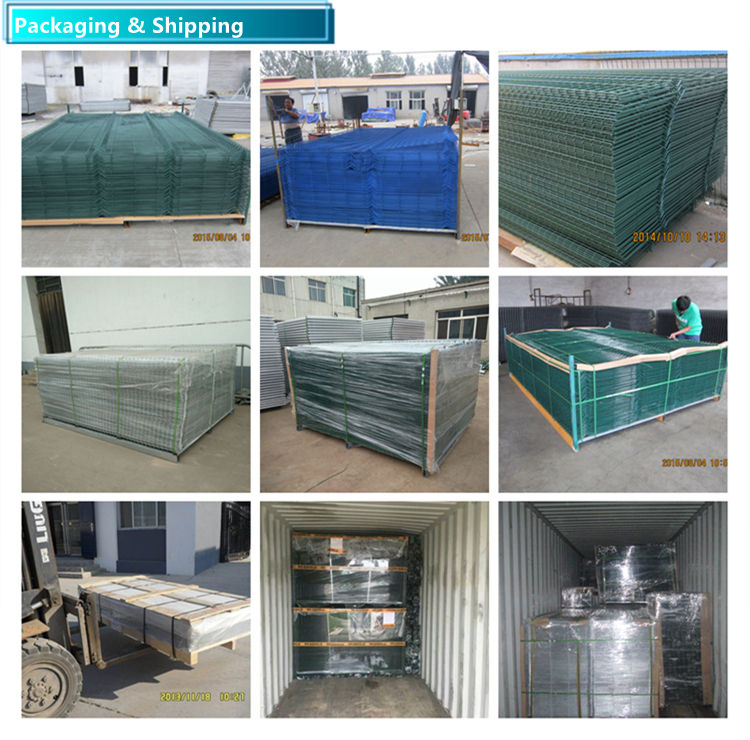

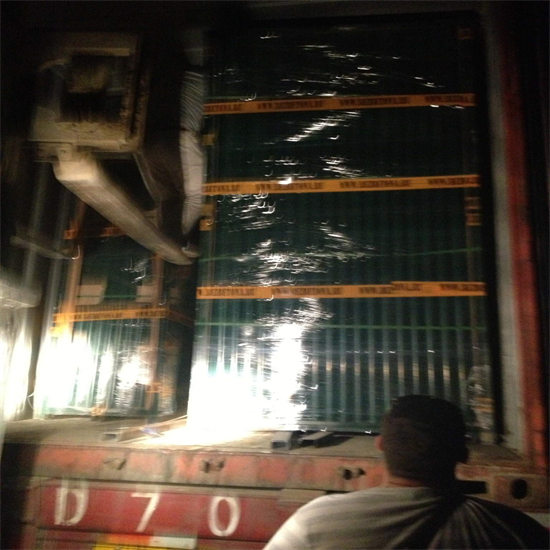

Packing :

The packing for welded wire mesh fencing can vary depending on the supplier or manufacturer. However, here are some common ways that welded wire mesh fencing is packed:

1. Pallets: The welded wire mesh panels are stacked on wooden pallets and wrapped with plastic film to protect them from moisture, dust, and damage during transportation.

2. Bundles: The welded wire mesh panels are bundled together with steel straps or wires and wrapped with plastic film to protect them from scratches and other damage during handling and transportation.

3. Cartons: Smaller welded wire mesh panels may be packed in cardboard boxes or cartons and then bundled together on a pallet.

4. Rolls: Welded wire mesh fencing can also be supplied in rolls, especially for chain link fencing. The rolls are wrapped with plastic film to protect them from moisture, dust, and damage during transportation.

The specific packing method for welded wire mesh fencing can be confirmed with the supplier or manufacturer. It's important to ensure that the packing is suitable for the mode of transportation and the destination of the fencing to ensure it arrives safely and in good condition.

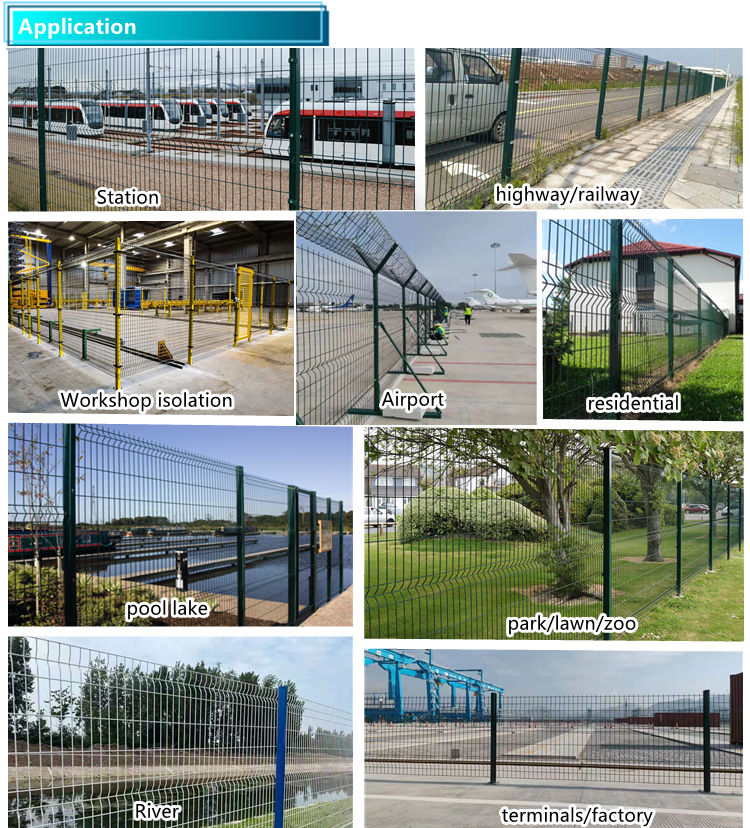

Welded wire mesh fencing has many applications across a wide range of industries, including:

1. Agriculture:  wire mesh fencing is commonly used for animal enclosures, such as for poultry, sheep, goats, and pigs. It can also be used for plant and crop protection, such as in fruit orchards and vegetable gardens.

2. Construction: it is used for safety barriers around construction sites, as well as for temporary fencing during events or roadworks.

3. Security: Welded wire mesh fencing is popular for perimeter security in industrial sites, commercial buildings, and residential properties. Its anti-climb and anti-cut properties make it difficult for intruders to breach.

4. Sports:  wire mesh fencing is used in sports facilities, such as in baseball fields, tennis courts, and soccer fields, to keep balls from leaving the area and to protect players and spectators.

5. Transportation:  wire mesh fencing is used for safety barriers along highways, railways, and airports.

6. Horticulture:  wire mesh fencing is used for plant support structures, such as in vineyards, and as trellises for climbing plants.

7. Mining: wire mesh fencing is used as safety barriers and reinforcement in underground mining tunnels and shafts.

Overall, welded wire mesh fencing is a versatile and durable option that can be used in a wide range of applications where security, safety, or containment is required.

Accessoires

Post options
option	Size	Thickness	Fittings	Type
Square Tube	40*60mm	1.2-2.0mm		Common
	50*50mm	1.2-2.0mm		Common
	60*60mm	1.2-2.5mm		Common
	60*80mm	2.0-2.5mm		Strong
I post	70*44mm	1.2-2.0mm		Common
Round tube	48mm	1.0-3.0mm		Common
	60mm	1.0-3.0mm		Strong
Peach Post	50*70mm	1.2mm		Common
	70*100mm	1.2mm		Stro
