Paladin Security fence is an original striped-type welded mesh fence with an innovative and unique aesthetic appearance. It has the features of high strength and security, anti-climbing, anti-cutting, and faster installation. And the Fencing panel, as a decorative mesh panel, has extra vertical wires and a crimped panel design. With pressed 'V' forms containing additional 4 mm diameter wires for the entire panel width, paladin mesh fencing offers a rigidity anti-intruder barrier solution.

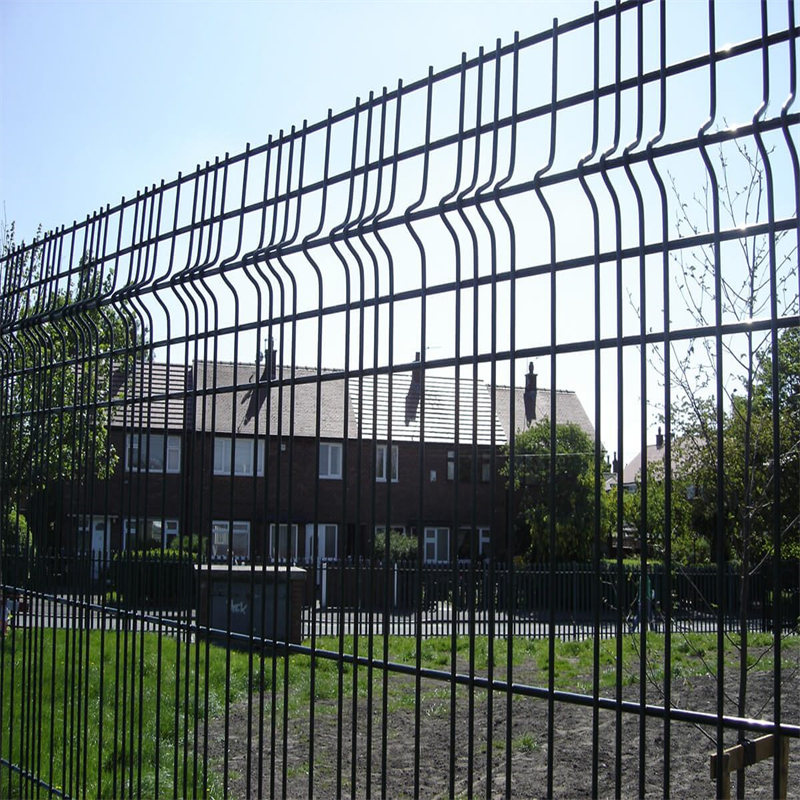

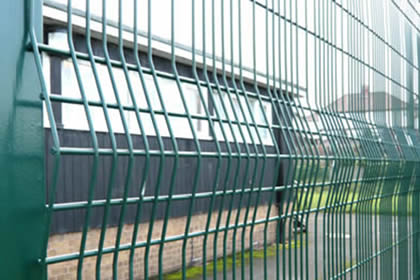

PDF-01:  mesh fencing in green plastic coating

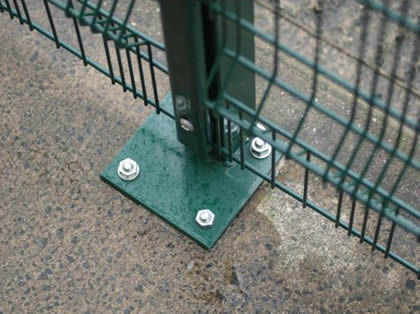

PDF-02: The square post and post base of paladin fencing

Common type Paladin Security fence Specifications (as above pictures Shown):

• Width of the panel: 2500 mm or 3025 mm.
• Height of the panel: 900 mm to 2400 mm.
• Spike to top edge: 30 mm.
• Mesh pattern: small 12.5 × 50 mm and large 50 × 50 mm, welded at each intersection. This mesh size ensures good visibility through the fence whilst the wire provides a high level of rigidity.
• Horizontal wires: 3 mm diameter at 50 mm centres with an additional 4 mm diameter in the 'V' beams.
• Paladin fencing Vertical wires: 3 mm diameter at 50 mm and 12.5 mm centres.
• 0.9 m / 1.2 m / 1.8 m panels have 2 'V' forms, and 2.0 m / 2.4 m panels have 3 'V' forms.
• Surface treatment: plastic coated with green colour. The thickness of powder coated is 80-100 microns.
• Fence post size 60 × 40 mm, 60 × 60 mm and 80 × 60 mm with a plastic cap or metal cap.
• Clamps: plastic clamp or metal clamp.

Another type of fence mesh opening is 20 mm × 200 mm /43.7 mm × 200 mm, wire 4 mm (verticals), 5 mm (horizontals). Shown in the right picture below.

Application of paladin mesh fence

Paladin fencing panels are recommended as security fencing for private estates, residential areas, housing, farms, gardens, industrial areas, sports facilities, parks, schools, playgrounds and sports fields, airports, utilities, public buildings, sports arenas, marinas, warehouses, factories.

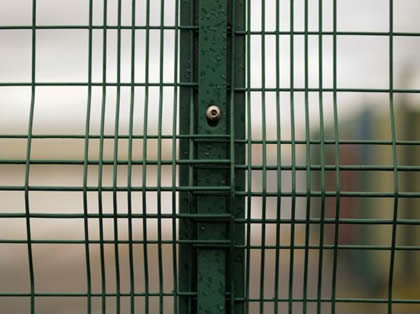

PDF-03: Paladin fence mesh opening small 12.5 × 50 mm and large 50 × 50 mm

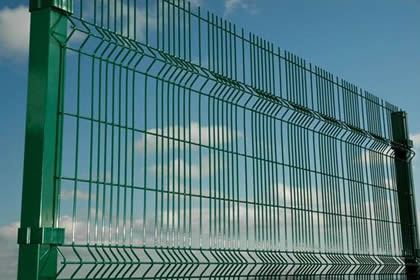

PDF-04: Paladin fence mesh opening 20 mm × 200 mm / 43.7 mm × 200 mm
