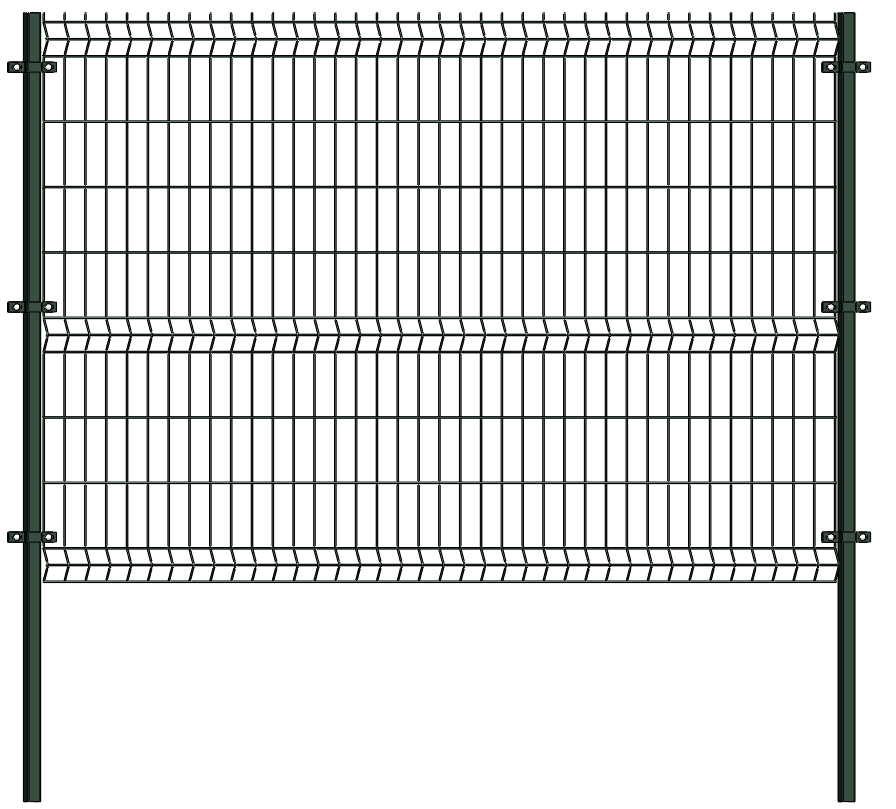

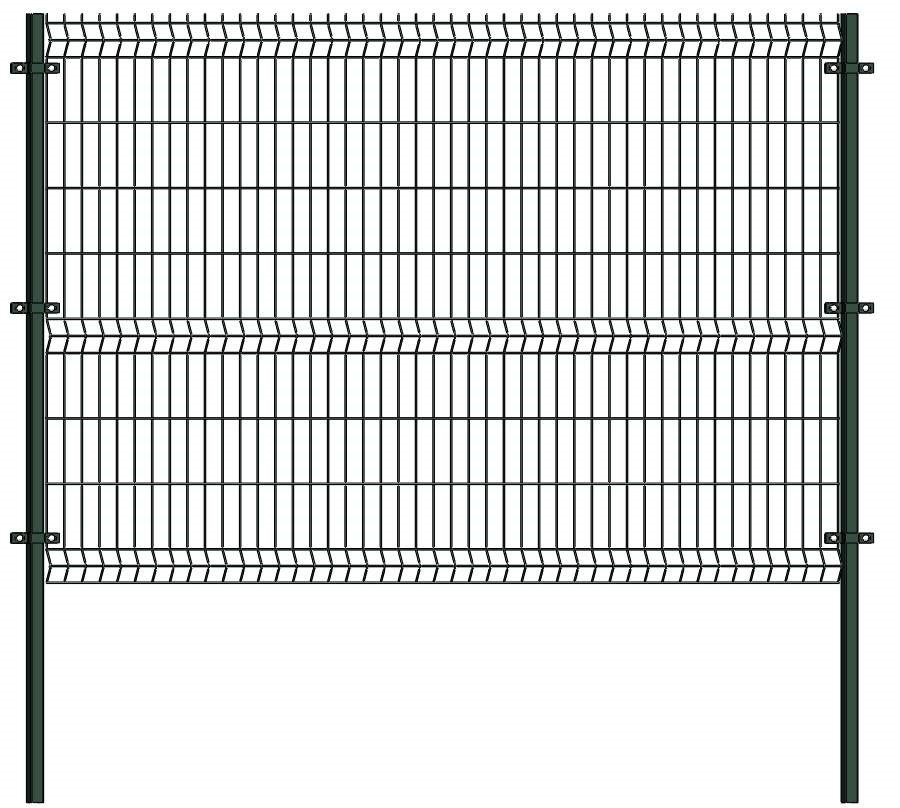

3 curves iron garden wire fence panel is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on. It is very affordable and inexpensive that is why we see most homes using wire fencing for their walls and also very durable and easy to make and fix on fences.



Wire mesh fence is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on. They are very affordable and inexpensive that is why we see most homes using wire fencing for their walls and also very durable and easy to make and fix on fences. There are different and various types of wire fencing that are used for different purposes and it is therefore mostly difficult to make up your mind on what type of it you will want to use.



WIRE FENCE PANEL SPECIFICATION:





Panel Height (mm)	Width (mm)	Diameter (mm)	Mesh spacing (mm)
930	2500mm 3000mm 3500mm	3.0mm 4.0mm 4.5mm 5.0mm 6.0mm	Vertical	Horizontal
1230			50	200
1530			55	200
1830			50	100
2130			55	100
Surface treatment A	Electrostatic polyester Powder coated
Surface treatment B	PVC coated or PE coated
Surface treatment C	Powder coated



WIRE FENCE PANEL POLE SPECIFICATION:

Type	X*Y*TW	1.0m	2.0m	2.3m	2.5m	2.7m	2.8m	3.0m	3.2m	4.0m	6.0m
SHS	50*50*1.2	1.872	3.744	4.3056	4.68	5.0544	5.2416	5.616	5.9904	7.488	11.232
	50*50*1.5	2.34	4.68	5.382	5.85	6.318	6.552	7.02	7.488	9.36	14.04
	60*60*1.5	2.8	5.6	6.44	7	7.56	7.84	8.4	8.96	11.2	16.8
	60*60*2.0	3.73	7.46	8.579	9.325	10.071	10.444	11.19	11.936	14.92	22.38
	76*76*1.5	3.51	7.02	8.073	8.775	9.477	9.828	10.53	11.232	14.04	21.06
	76*76*2.0	4.68	9.36	10.764	11.7	12.636	13.104	14.04	14.976	18.72	28.08
	100*100*3.0	9.36	18.72	21.528	23.4	25.272	26.208	28.08	29.952	37.44	56.16
	100*100*4.0	12.4	24.8	28.52	31	33.48	34.72	37.2	39.68	49.6	74.4
CHS	42*1.2	1.2	2.4	2.76	3	3.24	3.36	3.6	3.84	4.8	7.2
	42*1.5	1.49	2.98	3.427	3.725	4.023	4.172	4.47	4.768	5.96	8.94
	48*1.2	1.38	2.76	3.174	3.45	3.726	3.864	4.14	4.416	5.52	8.28
	48*1.5	1.71	3.42	3.933	4.275	4.617	4.788	5.13	5.472	6.84	10.26
	60*1.5	2.15	4.3	4.945	5.375	5.805	6.02	6.45	6.88	8.6	12.9
	60*2.0	2.85	5.7	6.555	7.125	7.695	7.98	8.55	9.12	11.4	17.1
	76*2.0	3.64	7.28	8.372	9.1	9.828	10.192	10.92	11.648	14.56	21.84
	76*2.5	4.52	9.04	10.396	11.3	12.204	12.656	13.56	14.464	18.08	27.12
	89*3.0	6.34	12.68	14.582	15.85	17.118	17.752	19.02	20.288	25.36	38.04
	89*4.0	8.36	16.72	19.228	20.9	22.572	23.408	25.08	26.752	33.44	50.16
RHS	40*60*1.2	1.87	3.74	4.301	4.675	5.049	5.236	5.61	5.984	7.48	11.22
	40*60*1.5	2.34	4.68	5.382	5.85	6.318	6.552	7.02	7.488	9.36	14.04
	40*80*2.0	3.74	7.48	8.602	9.35	10.098	10.472	11.22	11.968	14.96	22.44
	60*80*2.0	4.36	8.72	10.028	10.9	11.772	12.208	13.08	13.952	17.44	26.16
	60*80*2.5	5.46	10.92	12.558	13.65	14.742	15.288	16.38	17.472	21.84	32.76
	100*50*2.0	4.68	9.36	10.764	11.7	12.636	13.104	14.04	14.976	18.72	28.08
	80*120*2.0	6.24	12.48	14.352	15.6	16.848	17.472	18.72	19.968	24.96	37.44
	80*120*2.5	7.8	15.6	17.94	19.5	21.06	21.84	23.4	24.96	31.2	46.8
IPE	55*100*3.6	6.72	13.44	15.456	16.8	18.144	18.816	20.16	21.504	26.88	40.32
	68*100*4.5	9.46	18.92	21.758	23.65	25.542	26.488	28.38	30.272	37.84	56.76
	64*120*3.8	8.36	16.72	19.228	20.9	22.572	23.408	25.08	26.752	33.44	50.16
	64*120*4.8	11.5	23	26.45	28.75	31.05	32.2	34.5	36.8	46	69
ISA	40*40*4	2.42	4.84	5.566	6.05	6.534	6.776	7.26	7.744	9.68	14.52
	50*50*5	3.77	7.54	8.671	9.425	10.179	10.556	11.31	12.064	15.08	22.62
	60*60*6	5.42	10.84	12.466	13.55	14.634	15.176	16.26	17.344	21.68	32.52
	75*75*6	6.91	13.82	15.893	17.275	18.657	19.348	20.73	22.112	27.64	41.46
I POST	44*70*1.5	2.95	5.9	6.785	7.375	7.965	8.26	8.85	9.44	11.8	17.7
	44*70*2.0	3.93	7.86	9.039	9.825	10.611	11.004	11.79	12.576	15.72	23.58
	55*100*1.5	3.73	7.46	8.579	9.325	10.071	10.444	11.19	11.936	14.92	22.38
	55*100*2.0	4.97	9.94	11.431	12.425	13.419	13.916	14.91	15.904	19.88	29.82
PEACH POST	50*70*1.2	1.68	3.36	3.864	4.2	4.536	4.704	5.04	5.376	6.72	10.08
	70*100*1.2	3.55	7.1	8.165	8.875	9.585	9.94	10.65	11.36	14.2	21.3
C POST	60*80*2.0	4	8	9.2	10	10.8	11.2	12	12.8	16	24
	60*80*2.5	5	10	11.5	12.5	13.5	14	15	16	20	30
EURO POST	48*1.5	1.85	3.7	4.255	4.625	4.995	5.18	5.55	5.92	7.4	11.1
	60*1.5	2.29	4.58	5.267	5.725	6.183	6.412	6.87	7.328	9.16	13.74





Benefits:

1. Rigidity

Heavy welded security mesh panels with rectangular meshes and horizontal reinforcement ribs guarantee strength and rigidity.



2. Complete System

The system consists of high-quality panels available in various heights, secured to high-strength steel posts. Swing, sliding and cantilever gates are available for the Prism 3-D Fence System.



3. Long Service Life

ZERUN fence’s exclusive super-durable powder coating assures a long service life for this fence system. This coating is applied over galvanization to ensure total protection of panels and gates.



4. Fast Installation

All components have been developed to provide a professional product of high quality that can be installed efficiently and rapidly.

WIRE FENCE PANEL PROCESS:

Booking the material wire and pipe material

material wire zinc coating test

welding wire mesh and cut pipe as size

Paint or galvanized for the panel and pipe

package and loading



Quality Control Process

Galfan wire or hot dipped galvanized test the Zn/Ai coating

Semi-finished product test the hole size and panel size

Finished Product’s installation





 SERVICE :

We can provide most of free samples .
We have been in providing the professional products in wire mesh fence field for 15 years.

We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
If there are some defective items, we usually credit to our customer or replace in next shipment.

payment term:
T/T,30% in advance and the balance 70% against the copy of B/L.

Other payment term we can discuss.
