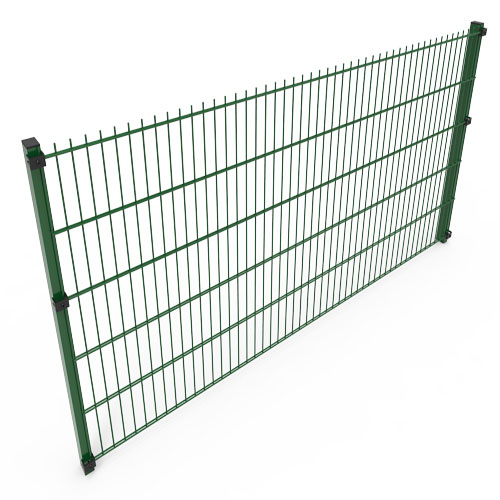

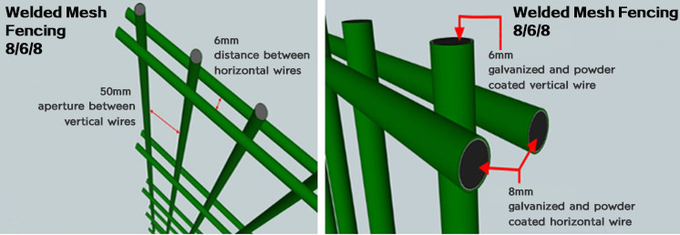

The double wire fence system is also named 868 or 656 fence panel. The mesh panel is welded with 8mm horizontal twin wires and 6mm vertical wires, strengthening the fence panel and reducing the probability of strangers’ intruding action. It is often used for industrial or commercial premises and sports pitches where a strong and good-looking mesh fencing system is required. Double wire fence is tall, robust, attractive and durable. It has excellent impact resistance.

Double Wire Fence Specifications

Panel Size (Height x Width)	Mesh Size	Wire Diameter
630x2500mm	50x200mm	8x2 + 6mm	6x2 + 5mm	6x2 + 4mm
830x2500mm	50x200mm	8x2 + 6mm	6x2 + 5mm	6x2 + 4mm
1030x2500mm	50x200mm	8x2 + 6mm	6x2 + 5mm	6x2 + 4mm
1230x2500mm	50x200mm	8x2 + 6mm	6x2 + 5mm	6x2 + 4mm
1430x2500mm	50x200mm	8x2 + 6mm	6x2 + 5mm	6x2 + 4mm
1630x2500mm	50x200mm	8x2 + 6mm	6x2 + 5mm	6x2 + 4mm
1830x2500mm	50x200mm	8x2 + 6mm	6x2 + 5mm	6x2 + 4mm
2030x2500mm	50x200mm	8x2 + 6mm	6x2 + 5mm	6x2 + 4mm
2230x2500mm	50x200mm	8x2 + 6mm	6x2 + 5mm	6x2 + 4mm
2430x2500mm	50x200mm	8x2 + 6mm	6x2 + 5mm	6x2 + 4mm

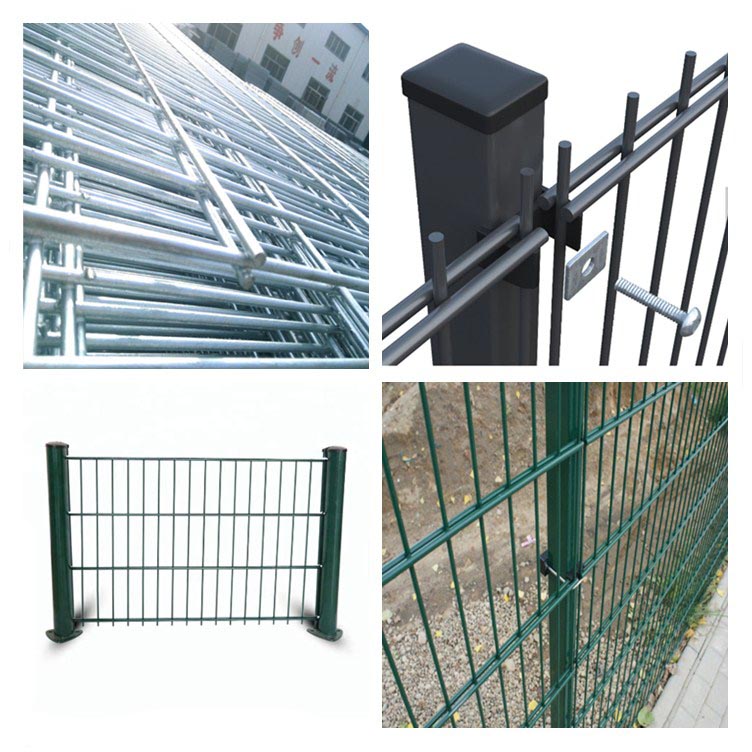

Fence Posts

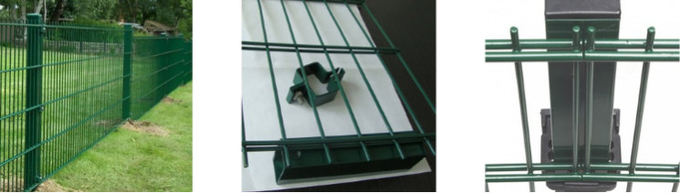

The Welded Mesh Fence Panels are attached with high-strength steel posts. The shared posts of the Welded Fence are SHS tube, RHS tube, Peach post, Round pipe or Special-shaped post. Welded Mesh Fence Panels will be fixed to the post by suitable clips according to different post types.

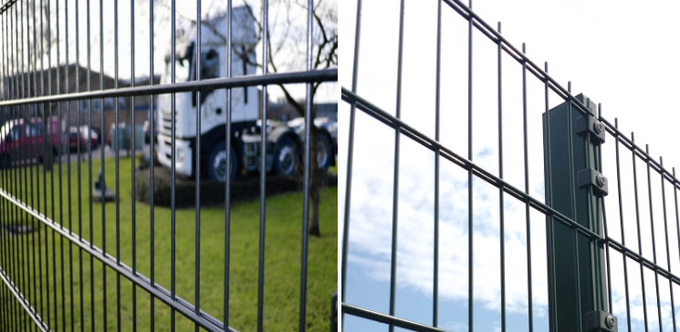

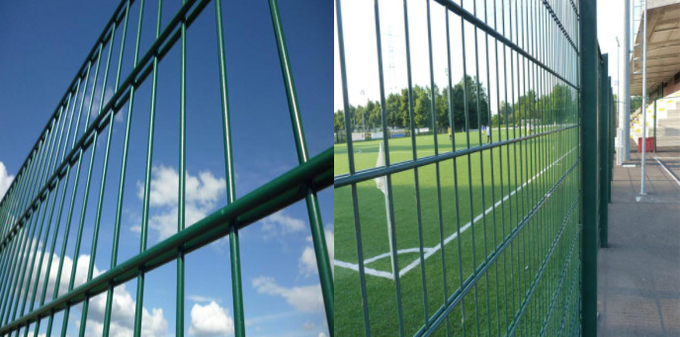

Double Wire Fence Application

1> Buildings and factories
2> animal enclosure
3> fence in agriculture
4> Horticulture industry
5> tree guards
6> plant protection



Double Wire Fence Advantage

1> Low maintenance costs
2> high strength
3> Long lifetime
4> Design Advantage
5> The design of double wires can stay the destroy
6> it is suitable for the high-security place

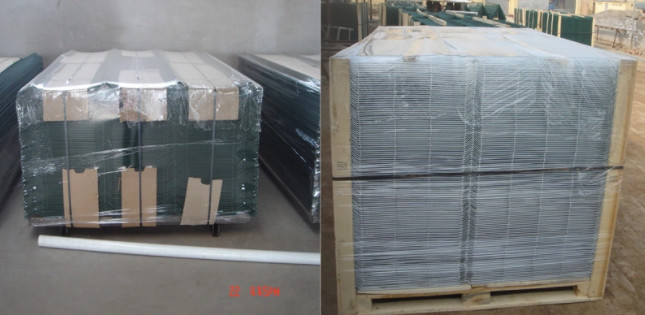

Double Wire Fence Packing

1> Plastic film at the bottom to avoid the panel being destroyed
2> 4 metal corners to ensure the panel is solid and uniform
3> wood plate at the top of the pallet to keep the under panel
4> pallet tube size:40*80mm tubes at the bottom vertical position.
