Nylofor 3D fence panel is ideally suited for most types of boundary, general and anti-intruder applications. High-quality appearance, long life and low maintenance through galvanized wire and high-build bonded polyester coating. Supplied as a complete system with panels, posts, bolted fixings and Robusta gates.



Specifications

Wire Mesh Fence Panel					Fence Post	Surface Treatment
Wire Dia	Mesh	Height	Length	Folds	Anti-steal post 70x100mmor square post 50x50mm/60x60mm
3mm, 3.5mm,4mm, 4.5mm,5mm	50x200	1.03m	2.0mor2.5m	2V	1.33m/pc	Hot-dipped galvanized, PVC coated,
		1.23m		2V	1.53m/pc
		1.53m		3V	1.83m/pc
		1.83m		3V	2.13m/pc
		2.03m		4V	2.33m/pc

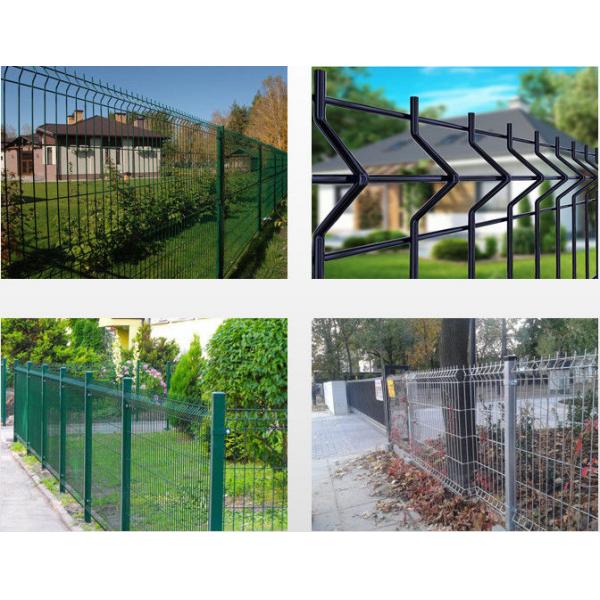

3D Panel Fence Application

1> Warehouse protection fence
2> School sports field,
3> stadium
4> Garden
5> park Nylofor 3D  fence



 Advantage Nylofor 3D  fence

• Safety It is made of high-strength zinc alloy, formed by T5 heat treatment, and is uniquely designed to form one piece, no solder joints, assembled and formed, and the overall strength is greatly improved.
• Aesthetics, streamlined appearance, and soft tones can coordinate the landscape and blend modern urban space and natural environment, allowing you to travel around.
• Practicability The surface is treated with a unique process to form a permanent protective film, smooth and flat, never rusty, easy to clean, and does not require maintenance.
• Weather resistance Galvanized Nylofor 3D  fence products have the characteristics of galvanized pipes, and the surface has been specially treated so that Nylofor 3D  fence can be used with peace of mind, no matter whether in air-polluted cities or coastal areas corroded by sea salt.

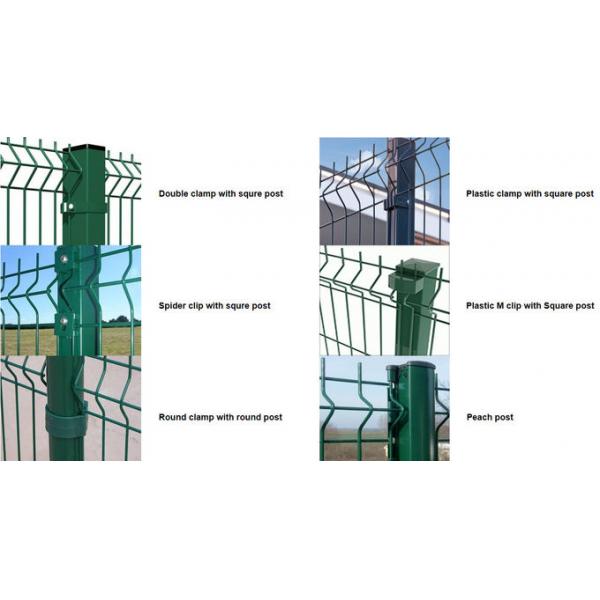

3D Panel Fence After Installation

• 1> plastic clamp with square post
• 2> Double clomp with squre post
• 3> Plastic M clip with square post
• 4> spider clip with square post
• 5> Peach post
• 6> Round clamp with
• 7> round post

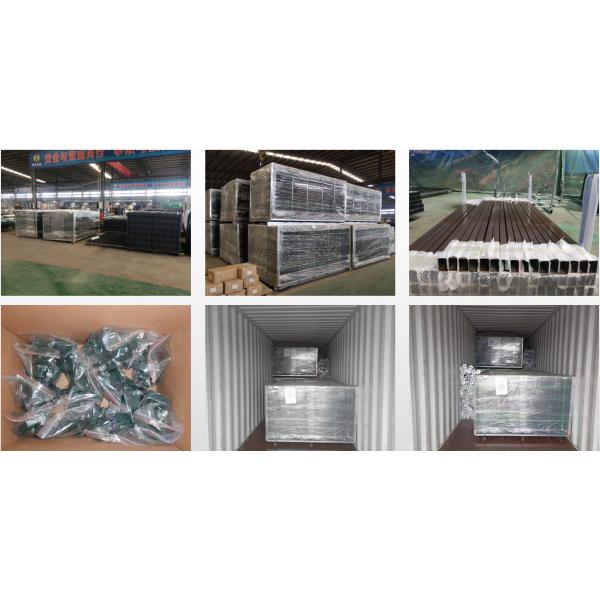

Nylofor 3D  fence Panels:

• 1>it has a rubber mat at the bottom of the pallet to prevent the pallet destroyed the panels
• 2>it has 4 metal corners to keep the pallet more strong.
• 3>it has a metal plate under the plastic bandage to reduce the pressure of Nylofor 3D  fence panels.
• 4>it has a wooden plate at the top of the fence panel, which can protect the panels from being crushed by other pallets.

Fence Post:

Each fence post is covered by a cap (save your installation time and the cost of labour), plastic film, and a metal pallet.

Nylofor 3D  fence Accessories:

Clips and screws are packed in sets, plastic film, + carton boxes.
